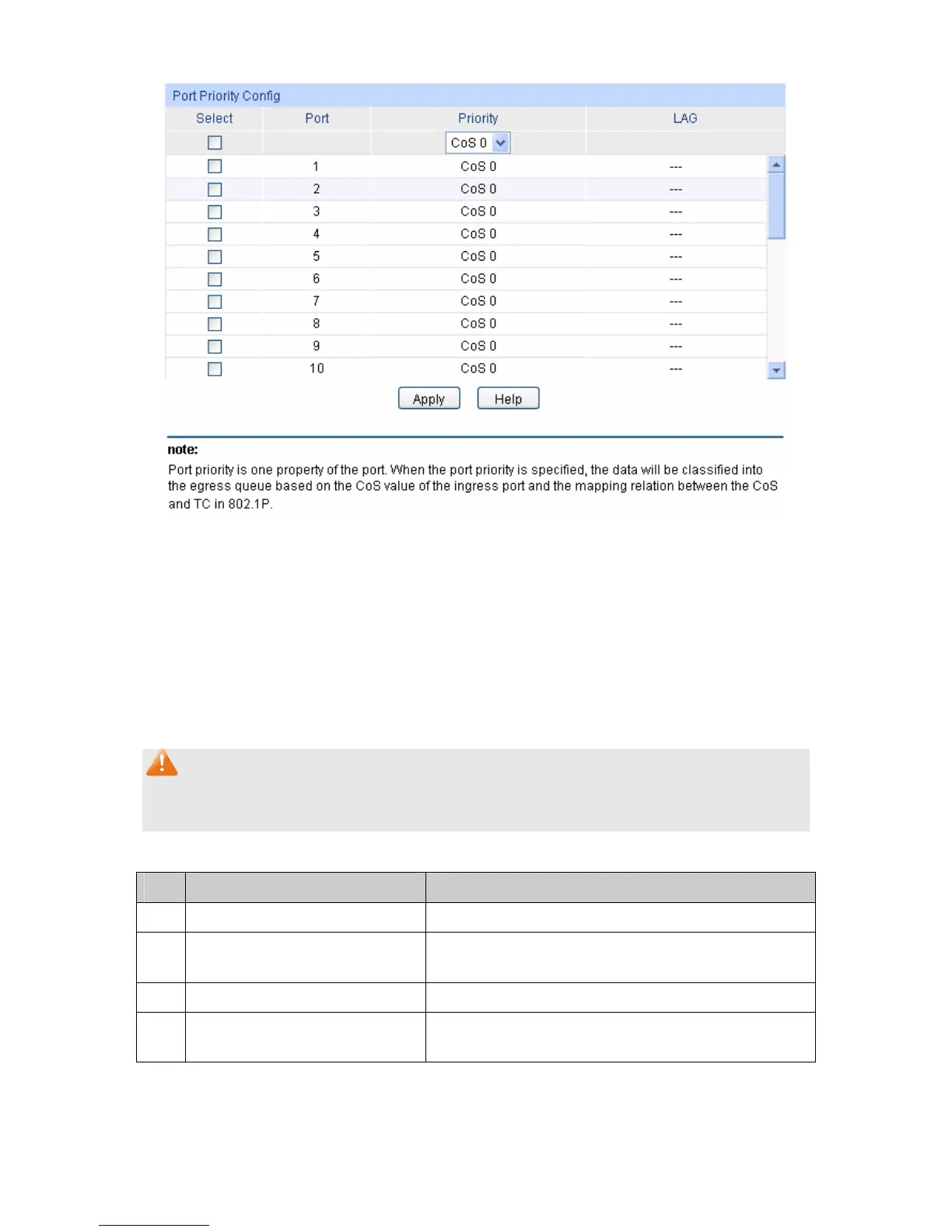

Figure 9-6 Port Priority Config
The following entries are displayed on this screen:
Port Priority Config
Select: Select the desired port to configure its priority. It is multi-optional.
Port: Displays the physical port number of the switch.
Priority: Specify the priority for the port.
LAG: Displays the LAG number which the port belongs to.
Note:
To complete QoS function configuration, you have to go to the Schedule Mode page to select a
schedule mode after the configuration is finished on this page.
Configuration Procedure:
Step Operation Description
1 Log on to the Port Priority page
2 Select the desired ports for
configuration
Select the desired ports. It is multi-optional.
3 Select the port priority Required. Select a priority from CoS0 to CoS7.
4 Select a schedule mode Required. Log on to the Schedule Mode page to select
a schedule mode.
9.1.2 Schedule Mode
On this page you can select a schedule mode for the switch. When the network is congested, the
problem that many packets compete for resources must be solved, usually in the way of queue
