 The commander switch discovers and determines candidate switches by collecting related
information.
 After being added to the cluster, the candidate switch becomes to be the member switch,
 After being removed from the cluster, the member switch becomes to be the candidate switch.
 The commander switch becomes to be the candidate switch only when the cluster is deleted.
 Introduction to Cluster
Cluster functions to configure and manage the switches in the cluster based on three protocols,
NDP, NTDP and CMP (Cluster Management Protocol).
 NDP: All switches get neighbor information by collecting NDP.
 NTDP: The commander switch collects the NDP information and neighboring connection
information of each device in a specific network range to determine the candidate switches in
the cluster.
Cluster maintenance: The commander switch adds the candidate switch to the cluster and
removes the member switch from the cluster according to the collected NTDP information.
The Cluster module, mainly used for cluster management configuration, including three submenus:
NDP, NTDP and Cluster.
14.1 NDP
NDP (Neighbor Discovery Protocol) is used to get the information of the directly connected neighbor
devices to support cluster establishing. An NDP-enabled device sends NDP packets regularly to
neighbor devices as well as receives NDP packets from neighbor devices. An NDP packet carries
the NDP information (including the device name, MAC address, firmware version and so on).
A switch keeps and maintains a neighbor information table, which contains the NDP information of
each neighbor switch. If a switch receives the NDP information of a new neighbor, it will add the
information to the neighbor information table. If the received NDP information is different from the
old information, the switch will update it in the neighbor information table; if the received NDP
information is the same with the old information, the switch will just update the aging time; if the
switch does not receive NDP information within the aging time, the switch will remove the
corresponding information from the table automatically.
The NDP function can be implemented on Neighbor Info, NDP Summary and NDP Config
pages.
14.1.1 Neighbor Info
On this page you can view the NDP neighbor information of the switch.
Choose the menu Cluster→NDP→Neighbor Info to load the following page.

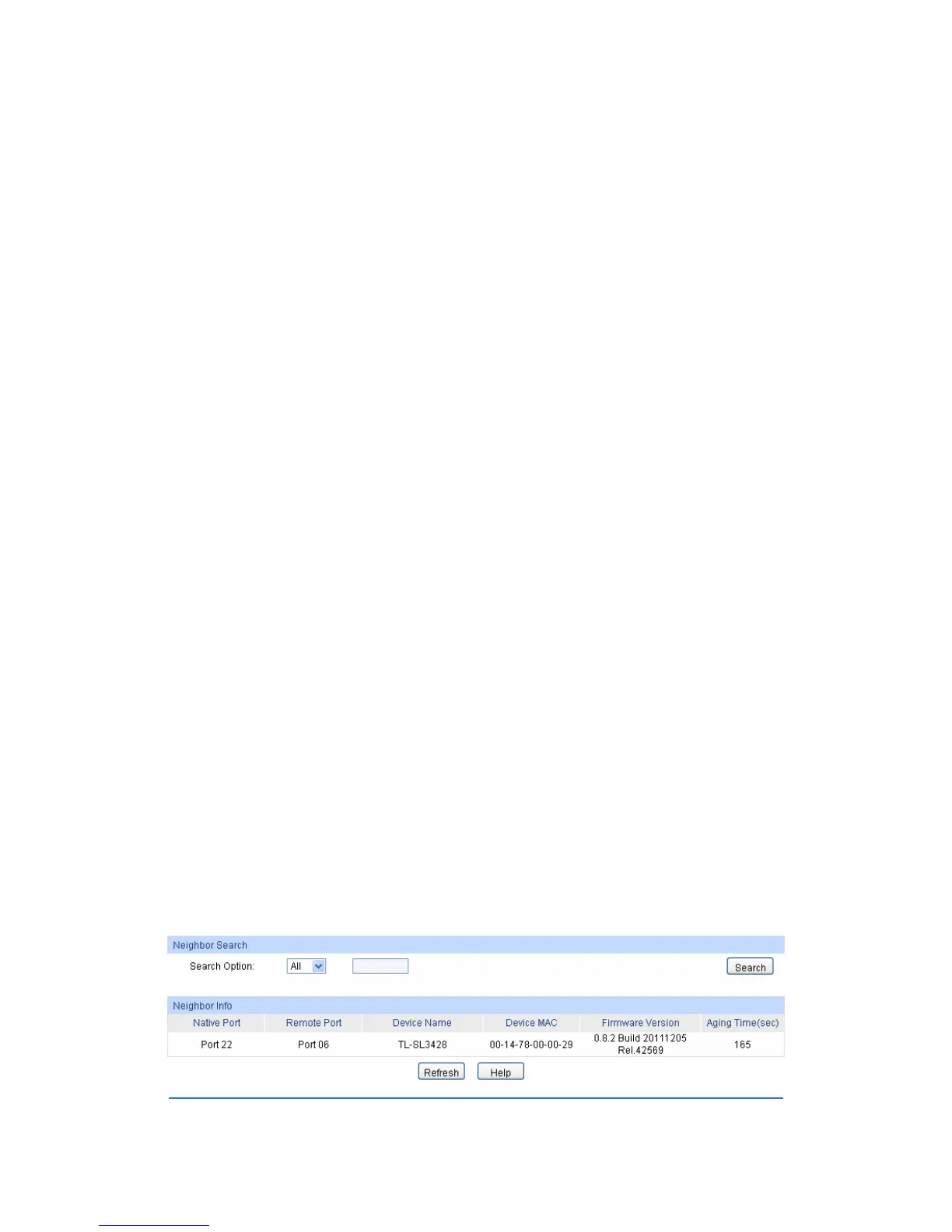

Figure 14-2 Neighbor Information
199

TP-Link TL-SG5412F Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Fan	0
Wi-Fi	No
Diagnostics	VCT
Management platform	SNMP, RMON, WEB/CLI/Telnet
Authentication method	802.1X, Radius
Packet transfer speed	17.99Mpps
Connectivity technology	Wired
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Console port	RJ-45
Fiber optic connector	SFP
SFP/SFP+ slots quantity	12
Basic switching RJ-45 Ethernet ports quantity	4
Fiber ethernet cabling technology	100BASE-FX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Stackable	-
Form factor	1U
Certification	CE, FCC
Product color	Black
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	260 mm
Width	440 mm
Height	44 mm
