TP-Link TL-SG5412F User Manual

authentication request from the sa
me supplicant during the
Quiet Period.
Retry Times: Specify the maximum transfer times of the repeated
authentication request.
Supplicant Timeout: Specify the maximum time for the switch to wait for the response
from supplicant before resending a request to the supplicant.
Server Timeout: Specify the maximum time for the switch to wait for the response
from authentication server before resending a request to the
authentication server.
11.5.2 Port Config
On this page, you can configure the 802.1X features for the ports based on the actual network.
Choose the menu Network Security→802.1X→Port Config to load the following page.

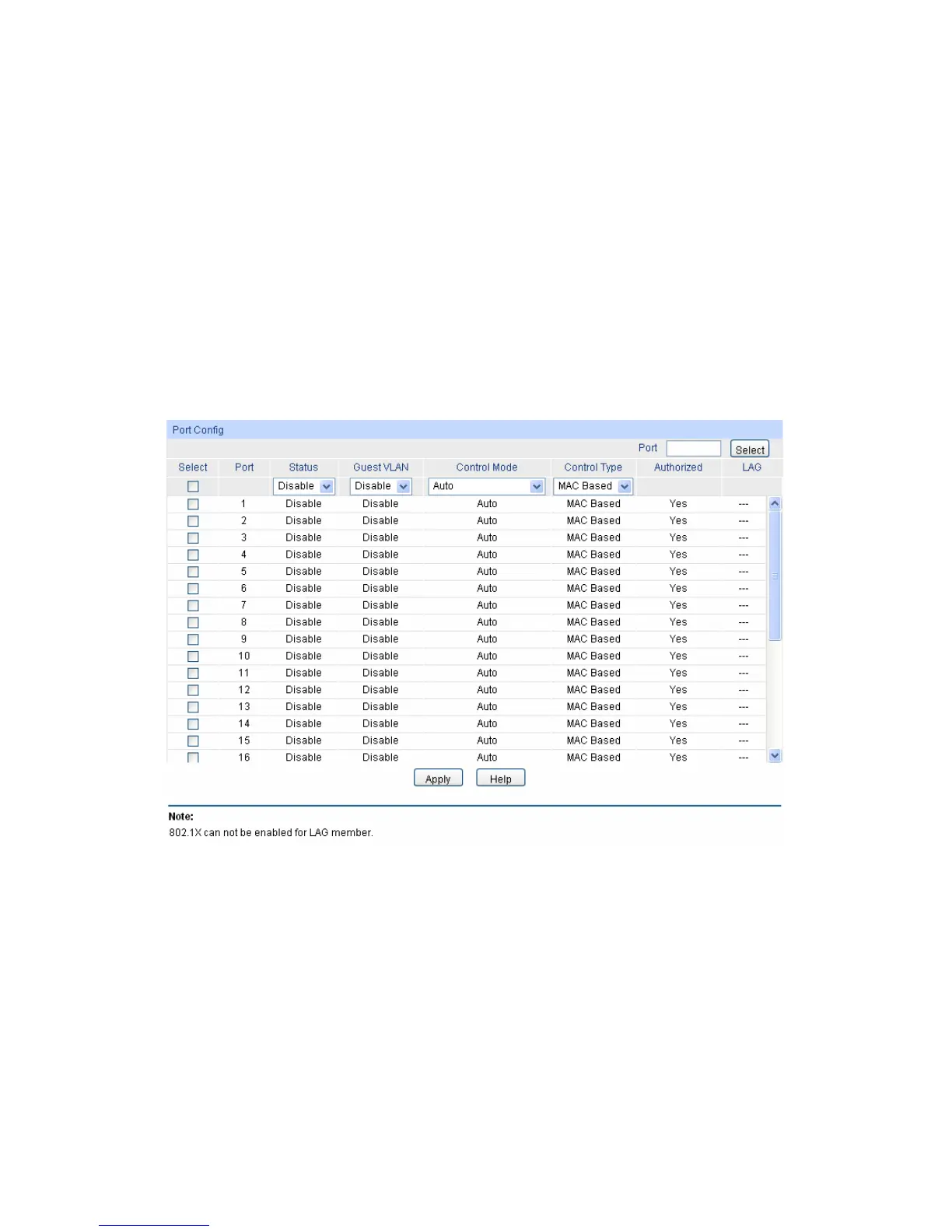

Figure 11-22 Port Config
The following entries are displayed on this screen:
 Port Config
Port Select: Click the Select button to quick-select the corresponding port
based on the port number you entered.
Select: Select your desired port for configuration. It is multi-optional.
Port: Displays the port number.
Status: Select Enable/Disable the 802.1X authentication feature for the
port.
169

TP-Link TL-SG5412F Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Fan	0
Wi-Fi	No
Diagnostics	VCT
Management platform	SNMP, RMON, WEB/CLI/Telnet
Authentication method	802.1X, Radius
Packet transfer speed	17.99Mpps
Connectivity technology	Wired
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Console port	RJ-45
Fiber optic connector	SFP
SFP/SFP+ slots quantity	12
Basic switching RJ-45 Ethernet ports quantity	4
Fiber ethernet cabling technology	100BASE-FX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Stackable	-
Form factor	1U
Certification	CE, FCC
Product color	Black
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	260 mm
Width	440 mm
Height	44 mm
