TP-Link TL-SG5412F User Manual

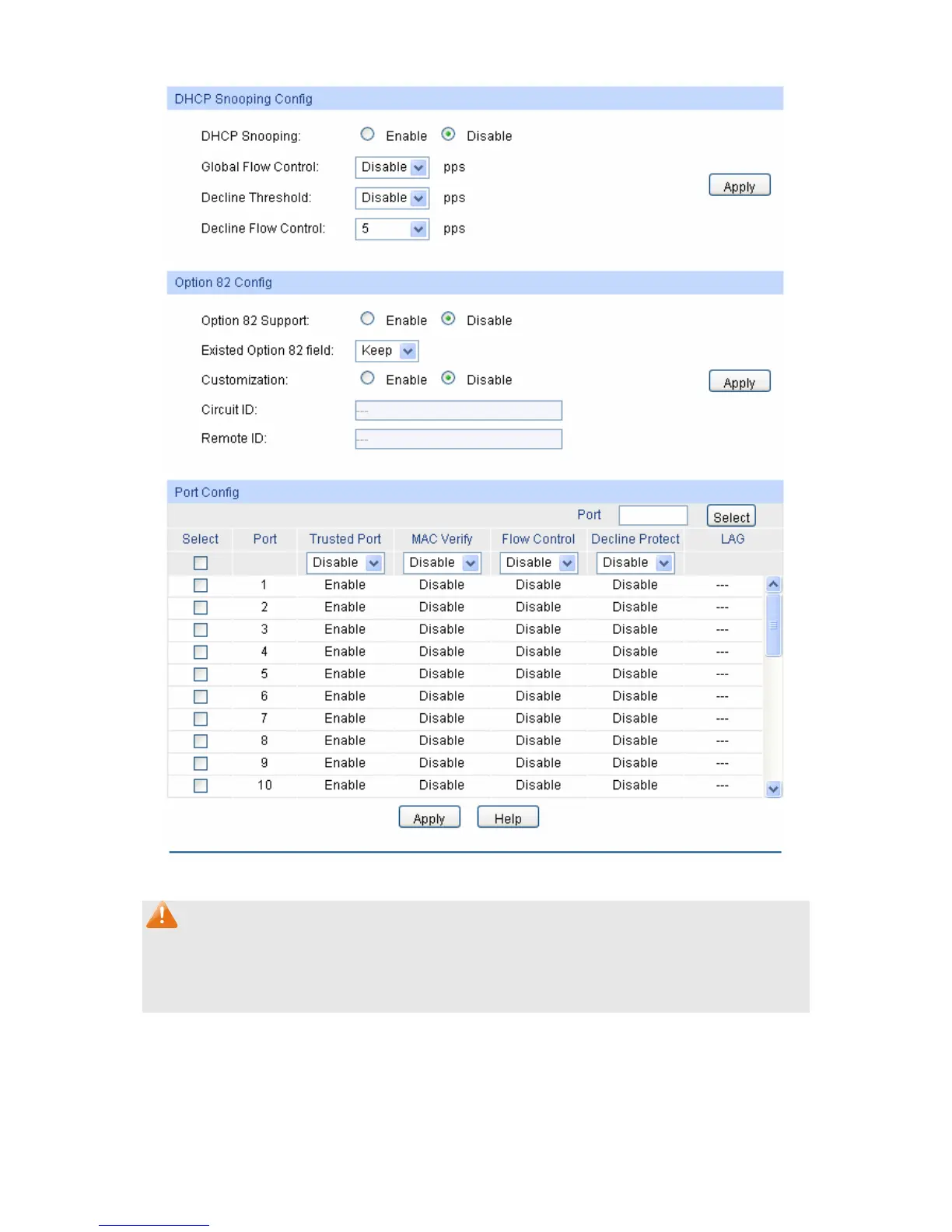

Figure 11-8 DHCP Snooping
Note:
1. If you want to enable the DHCP Snooping feature for the member port of LAG, please ensure
the parameters of all the member ports are the same.
2. The DHCP Snooping function and DHCP Relay function can not be enabled at the same time.
The following entries are displayed on this screen:
 DHCP Snooping Config
DHCP Snooping: Enable/Disable the DHCP Snooping function globally.
153

TP-Link TL-SG5412F Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Fan	0
Wi-Fi	No
Diagnostics	VCT
Management platform	SNMP, RMON, WEB/CLI/Telnet
Authentication method	802.1X, Radius
Packet transfer speed	17.99Mpps
Connectivity technology	Wired
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Console port	RJ-45
Fiber optic connector	SFP
SFP/SFP+ slots quantity	12
Basic switching RJ-45 Ethernet ports quantity	4
Fiber ethernet cabling technology	100BASE-FX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Stackable	-
Form factor	1U
Certification	CE, FCC
Product color	Black
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	260 mm
Width	440 mm
Height	44 mm
