Auto reconnect af
ter timeout: Select this option to allow the Client to automatically start the
connection again when it does not receive the handshake reply packets from the switch within a
period.
3. To continue, click Connect button after entering the Name and Password on Figure
C-11.

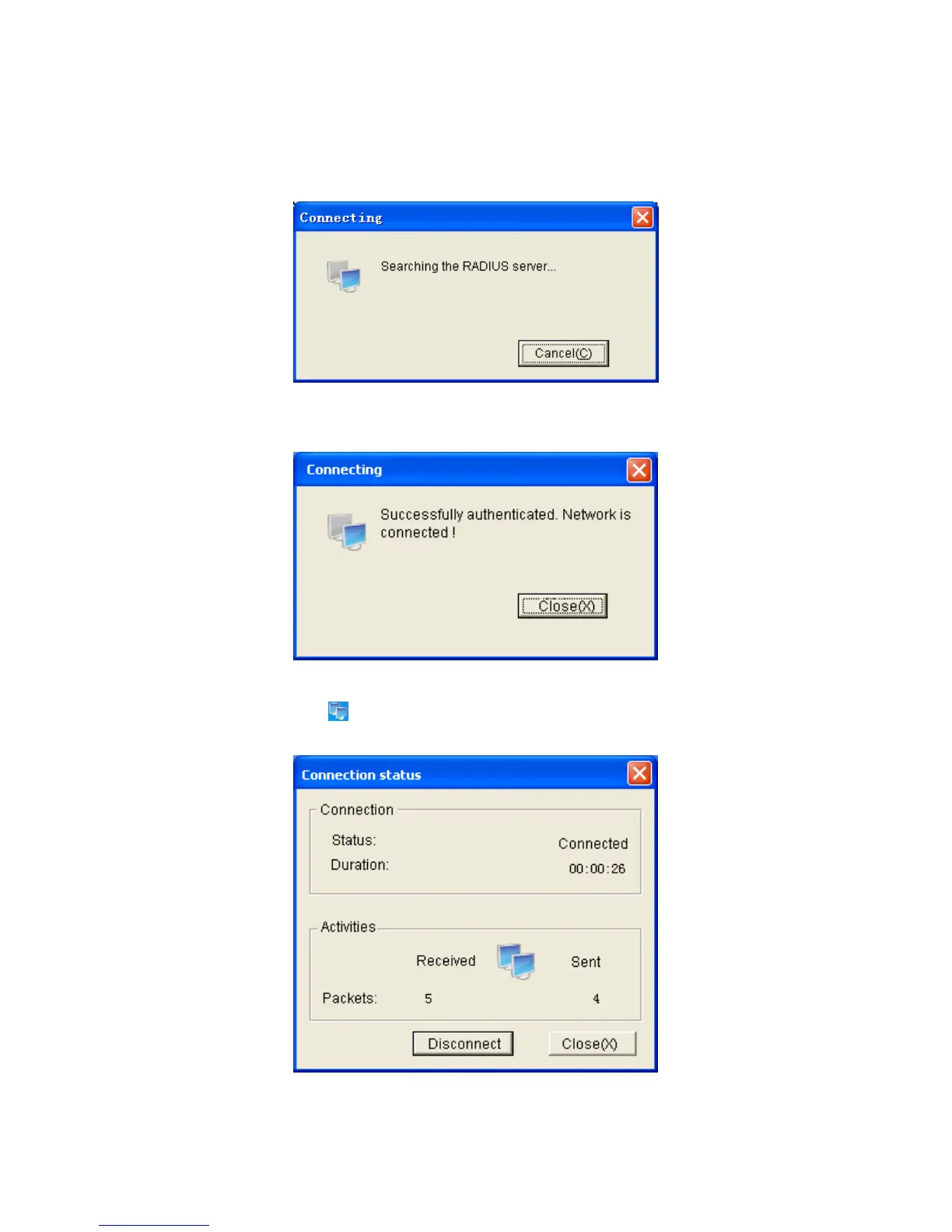

Then the following screen will appear to prompt that the Radius server is being searched.
Figure C-13 Authentication Dialog
4. When passing the authentication, the following screen will appear.
Figure C-14 Successfully Authenticated
5. Double click the icon
on the right corner of desktop, and then the following connection
status screen will pop up.
Figure C-15 Connection Status
243
