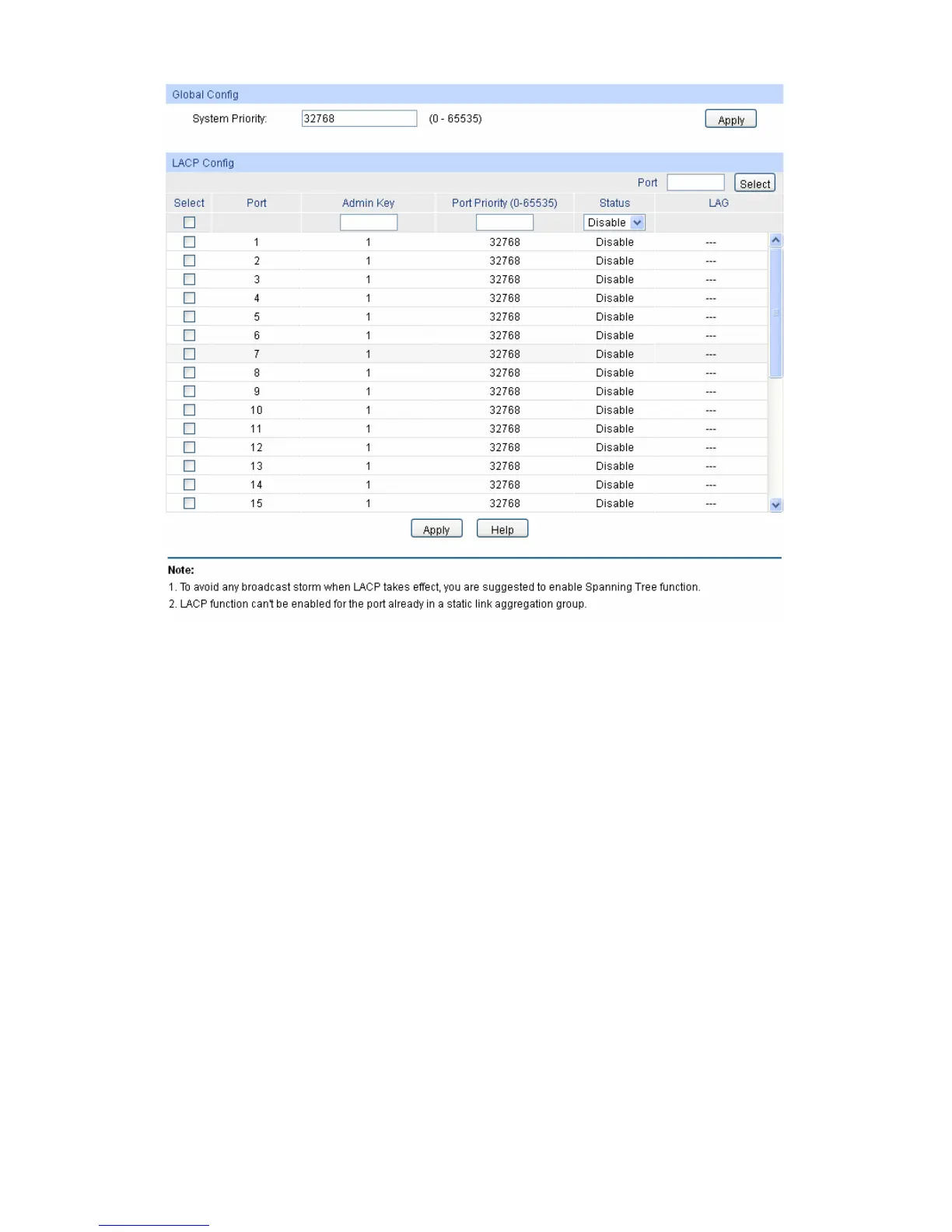

Figure 5-9 LACP Config
The following entries are displayed on this screen:
Global Config
System Priority: Specify the system priority for the switch. The system priority and
MAC address constitute the system identification (ID). A lowe
system priority value indicates a higher system priority. When
exchanging information between systems, the system with highe
priority determines which link aggregation a link belongs to, and
the system with lower priority adds the proper links to the link
aggregation according to the selection of its partner.
LACP Config
Port Select: Click the Select button to quick-select the corresponding port
based on the port number you entered.
Select: Select the desired port for LACP configuration. It is
multi-optional.
Port: Displays the port number.
Admin Key: Specify an Admin Key for the port. The member ports in a
dynamic aggregation group must have the same Admin Key.
Port Priority: Specify a Port Priority for the port. This value determines the
40
