d. Multi-speed and acceleration/deceleration time

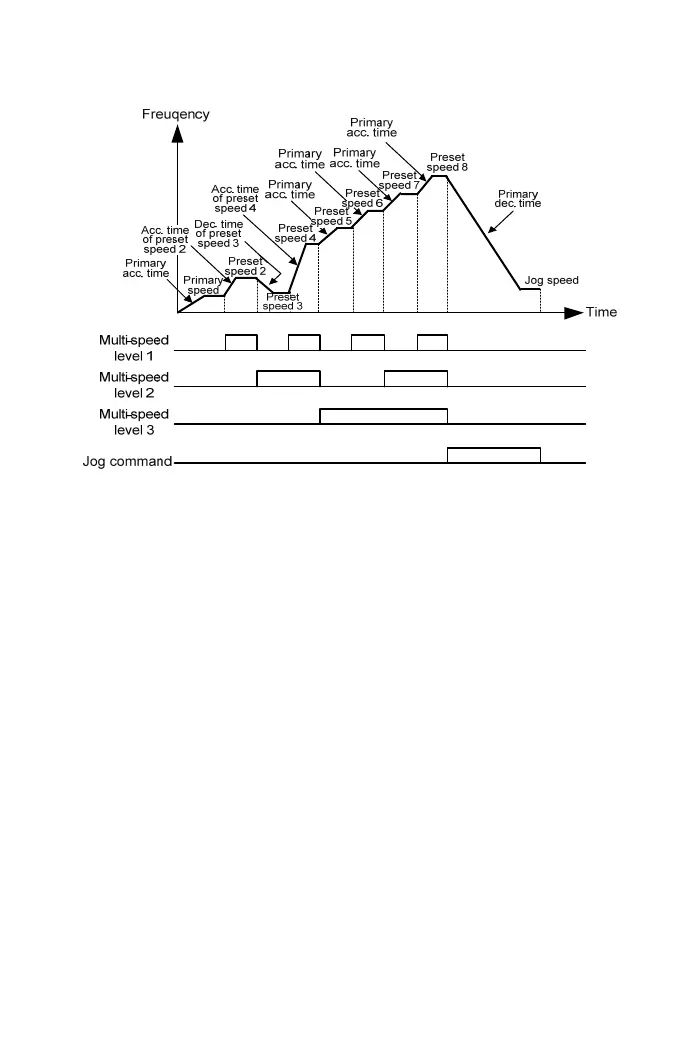

※The above illustration is an example of preset speed 1~8. The acceleration /
deceleration time of preset speed 5~8 and jog speed are depend on the setting of
primary acceleration / deceleration time.
※When the drive stops, and the jog command is ON, the motor is running at the jog
speed – no start command is required.
※The analog input terminals (
“Pot knob”, Al) are disabled at multi-speed setting
(primary speed excluded).
※As for the accel/decel time, please see the parameter setting (F2.18~ F2.21).
【F2.17】 Reference Frequency of Acceleration/Deceleration Time
Set the corresponding frequency of accel/decel time.
The setting range: 0.01~400.00Hz
【F2.18/F2.19】 Primary Acceleration / Deceleration Time
| |
【F2.24/F2.25】 Acceleration / Deceleration Time of Preset Speed 4
【F2.26/F2.27】 Secondary Acceleration / Deceleration Time
a. The acceleration/deceleration time of preset speed is the time that the frequency
starting from 0Hz accelerates to the reference frequency of acceleration/deceleration
time (F2.17). Multi-speed command can control the multi-speed and acceleration/
deceleration time of preset speeds. The setting range: 0.0~3200.0 sec.
b. The acceleration/deceleration time setting of primary speed, preset speed 5 ~
preset speed 16, and jog speed are set by primary acceleration/deceleration time
(F2.18/F2.19).
49
