TPG CA-202A - F1 Operation Parameters Details

F1 Operation Parameters
【F1.00】
Start Command Selection
a. F1.00 = 0
(I) Motor forward and reverse directions are controlled by multi-function input
terminals(X1~X4).
(II) Start and motor rotating direction commands are controlled by multi-function
input terminals(X1~X4) for forward and reverse command.
(III) The motor stops running when the multi-function input terminals are set
(closed) or open simultaneously.

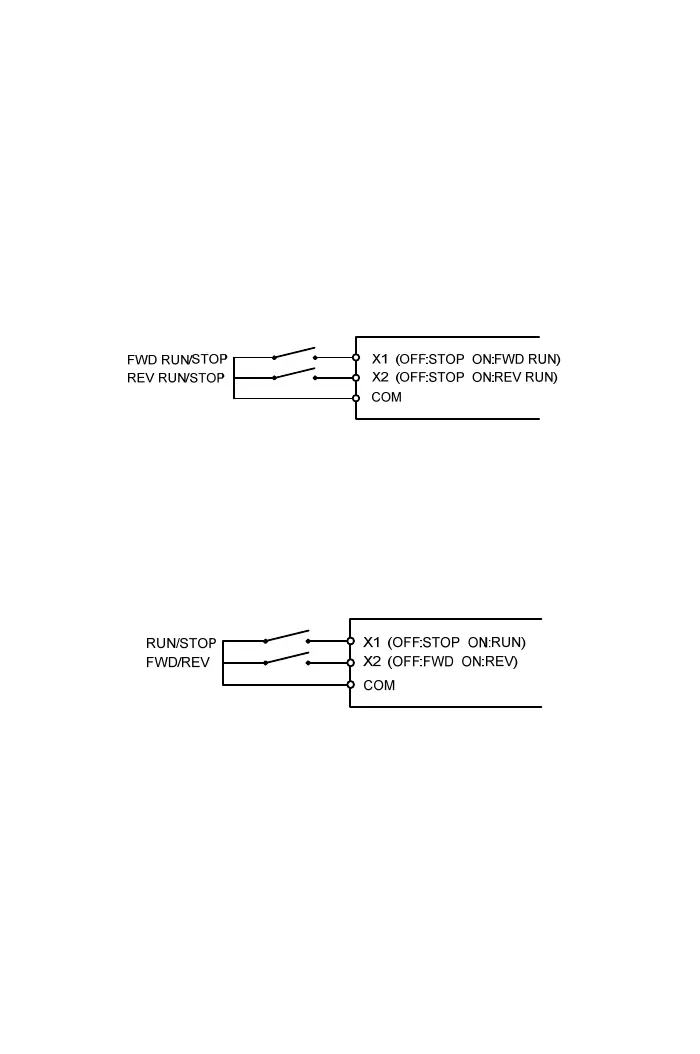

Example: Parameter value: F5.19=22 (define X1 as forward command),
F5.20=23 (define X2 as reverse command) and the drive control is
shown as the below diagram.
b. F1.00 = 1
(I) Motor forward and reverse directions are controlled by multi-function input
terminals (X1~X4).
(II) Start command by forward command (defining X1~X4 as forward command)
and motor rotating direction by reverse command (defining X1~X4 as reverse
command).
Example: Parameter value: F5.19=22(define X1 as forward command),
F5.20=23(define X2 as reverse command) and the drive control is
shown as the below diagram.
40
