TK 61753-2-MM-EN

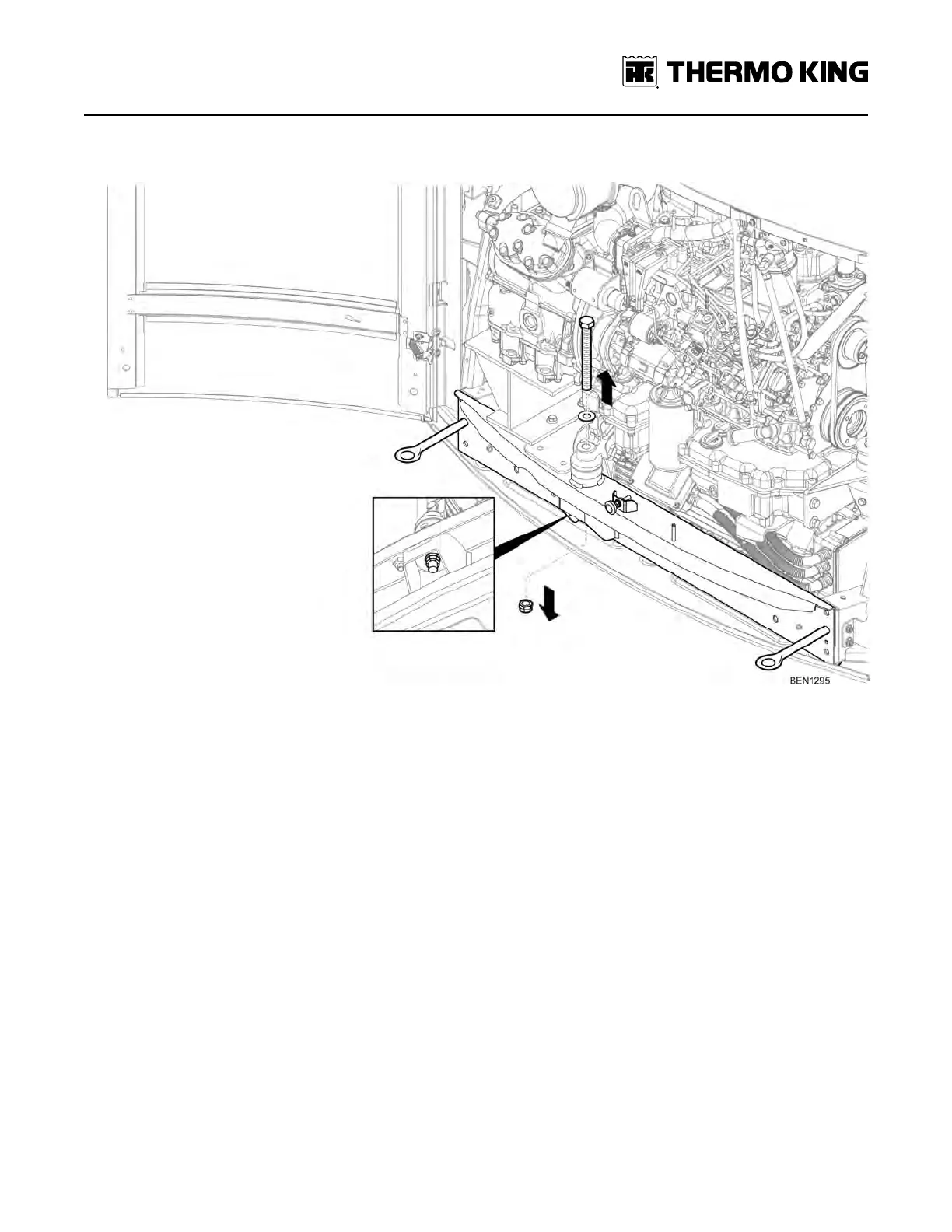

10. Remove Engine mounting bolt.

NNoottee:: Remember that the front frame cross member is now only held on by the podger bar.

EElleeccttrriiccaall MMaaiinntteennaannccee
