TK 61753-2-MM-EN

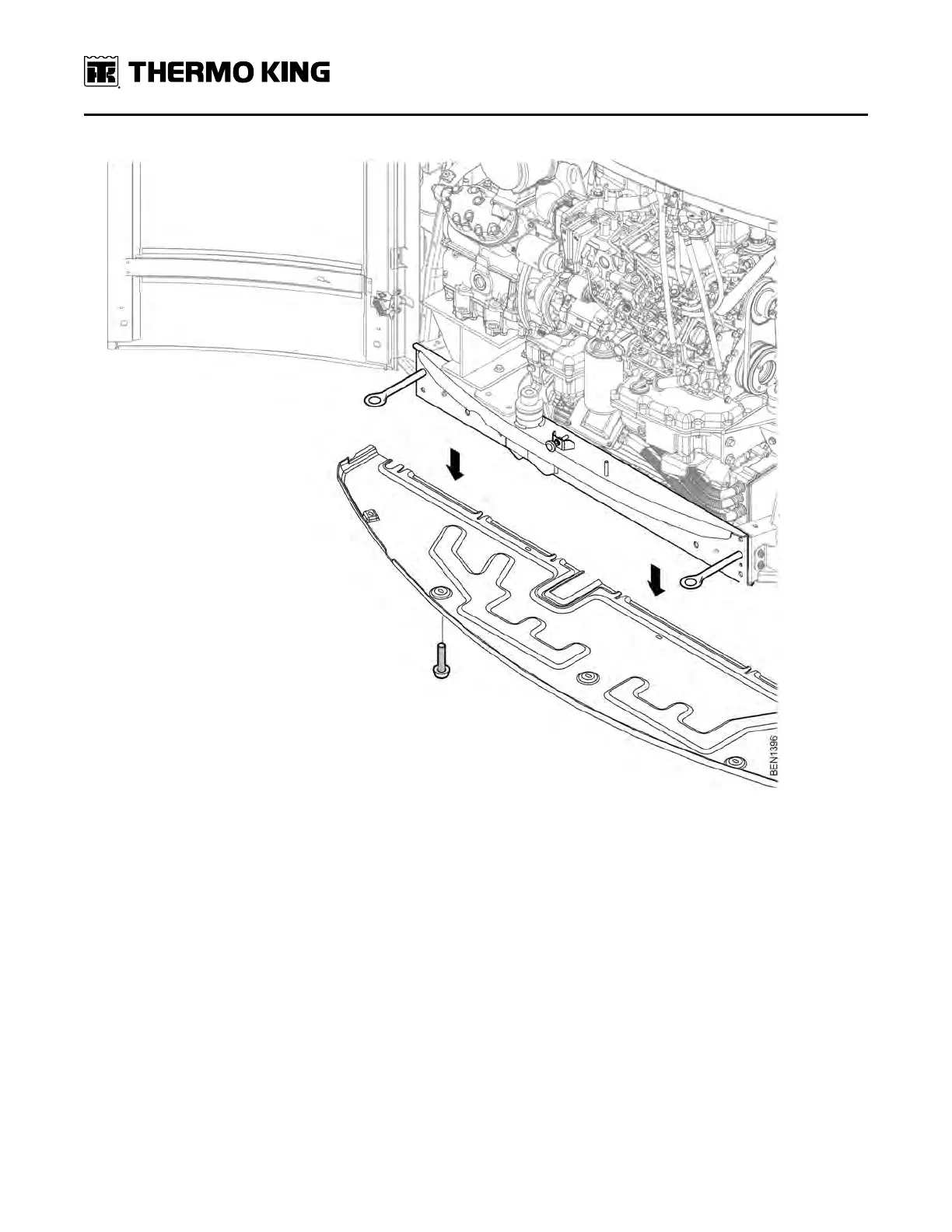

11. Remove the bottom panel and front frame cross member

NNoottee:: Ensure that the CMG is both hooked to the CMG service tool and the Fork Truck.

EElleeccttrriiccaall MMaaiinntteennaannccee
