TK 61753-2-MM-EN
75

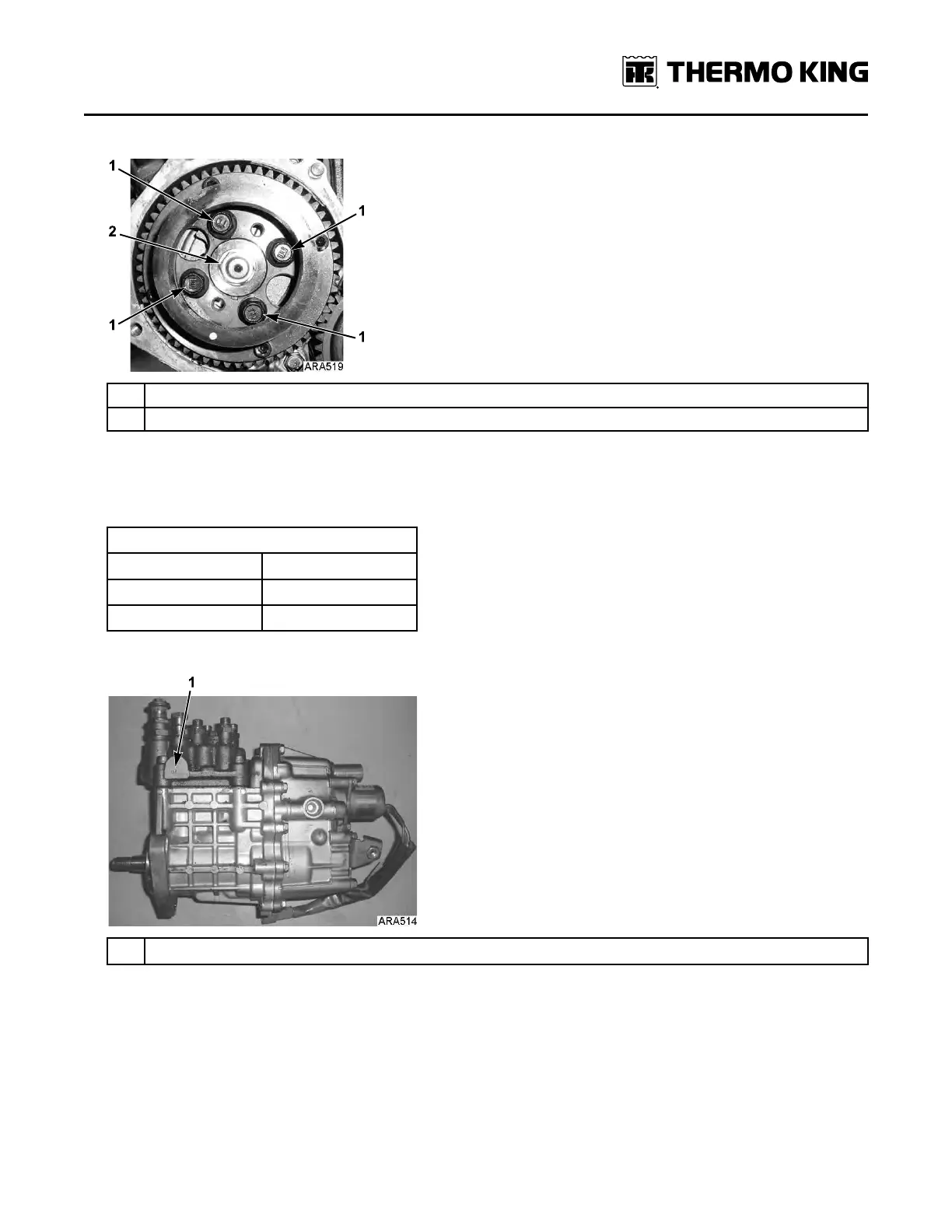

Figure 25. Removing Injection Pump Gear
1. Do Not Loosen or Remove These Four Bolts
2. Remove Nut and Lock Washer
4. Record the injection angle marked on the old injection pump (see the following photographs). The injection angle
mark is located on the side of the pump facing the engine. The injection angle mark on the pump does not use a
decimal point. Add a decimal point before the last digit of the injection angle mark to get the injection angle. The
injection angle mark in the following photographs is 67. That equals an injection angle of 6.7 degrees.
Examples
Injection Angle Mark Injection Angle
67 6.7 Degrees
85 8.5 Degrees
Figure 26. Injection Angle Mark Location
1. Injection Angle Mark
EEnnggiinnee MMaaiinntteennaannccee
