76
TK 61753-2-MM-EN

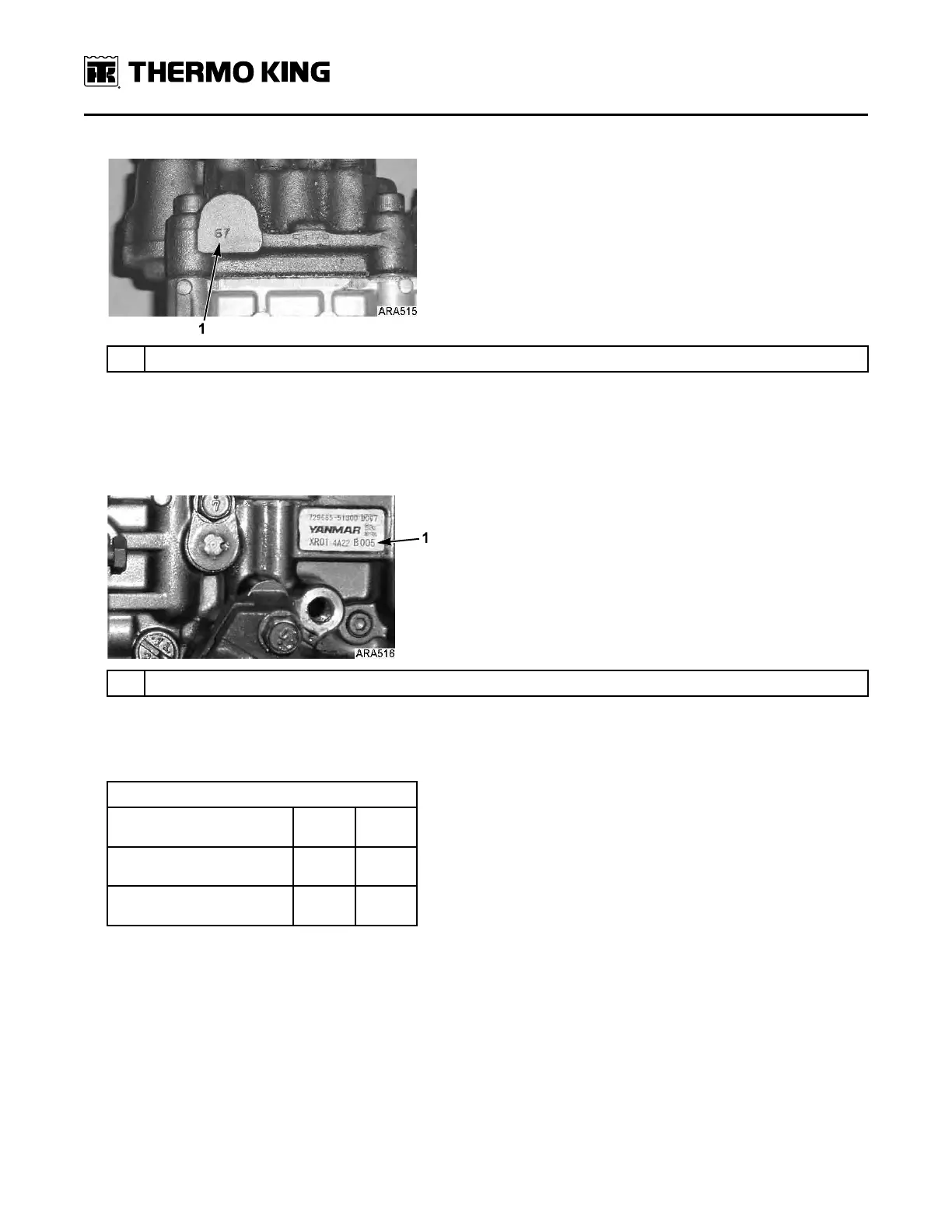

Figure 27. Injection Angle Mark
1. Injection Angle Mark
NNoottee:: If you cannot read the injection angle mark, contact the Thermo King Service Department with the injection
pump serial number or the engine serial number and they will provide the injection angle. The injection pump
serial number is located on the bottom of the sticker on the injection pump.
Figure 28. Injection Pump Serial Number Location
1. Injection Pump Serial Number
5. Record the injection angle marked on the side of the new injection pump.
6. Calculate the injection angle difference by subtracting the injection angle of the old injection pump from the
injection angle of the new injection pump.
Examples
Injection Angle of New
Injection Pump (Degrees)
8.5 6.1
–
Injection Angle of Old
Injection Pump (Degrees)
– 6.7 – 6.7
=
Injection Angle Difference
(Degrees)
= +1.8 = –0.6
7. Install the new injection pump on the gear case and position it so the index mark on the injection pump is aligned
with the mark equal to the injection angle difference on the injection angle sticker (see the following examples).
Tighten the injection pump mounting nuts when the index mark is aligned as necessary with the injection angle
sticker.
EEnnggiinnee MMaaiinntteennaannccee
