Transport and installation
Final place of installation
43

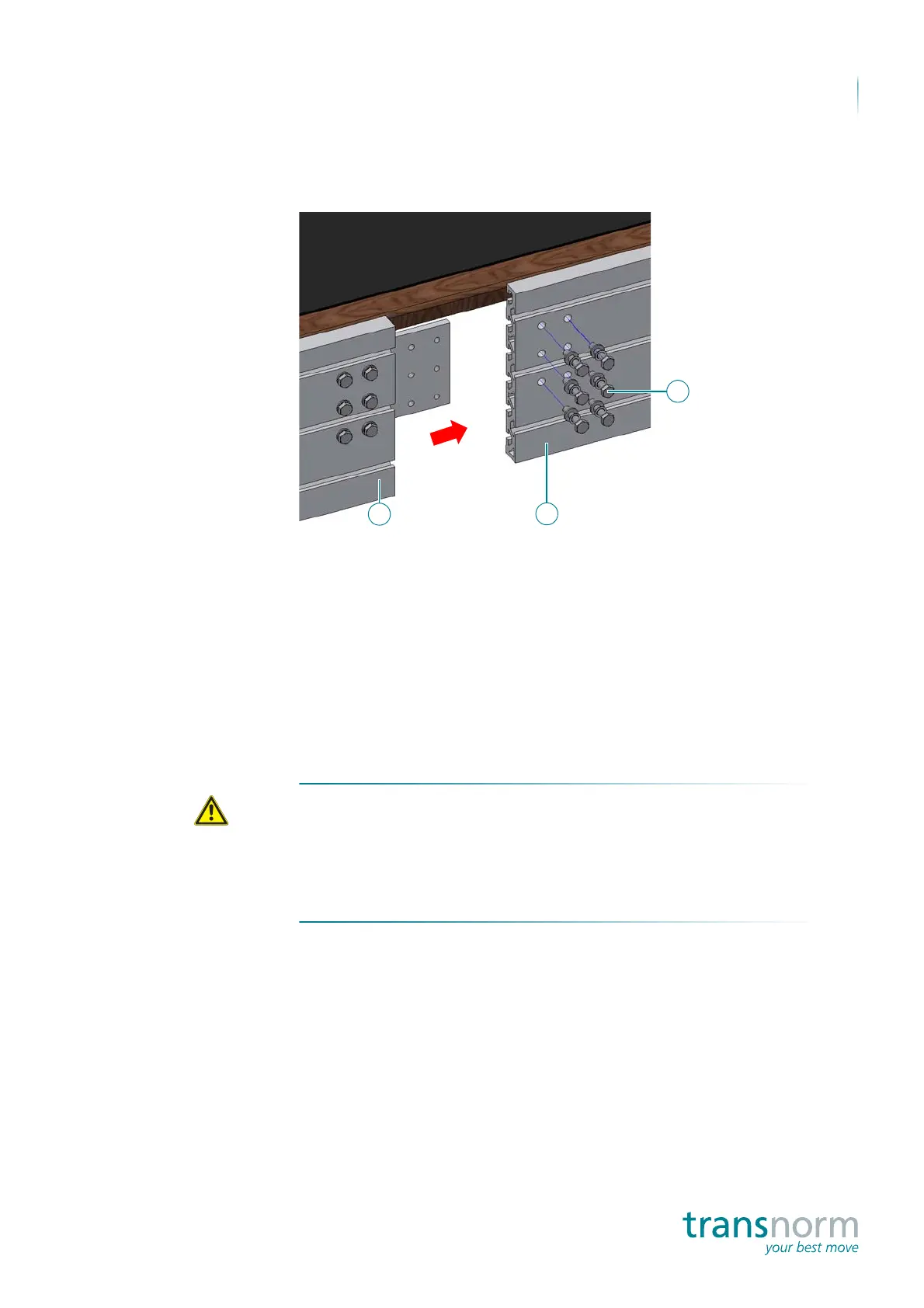

3. Push the individual sections (1), (2) together and fit with the fixing
elements (3) provided.
4. If necessary, fit the individual parts of the bed with the fixing elements
provided.
5. Install the deflection with the belt inserted (see the section "Mainte-
nance," "Replacing the belt").
The frame has been installed.
Aligning and
anchoring the
machine, all types
Danger of fatal injury through crushing of parts of the body!
Loosened mounting bolts for the height adjustment may allow the machine to
slide.
When adjusting supports or suspensions, provide additional support for
the conveyor.
For suspensions, create a positive locking joint by means of retaining
bolts.
Carry out the following work steps:
1. Align the machine horizontally and free of torsion in accordance with the
required infeed and outfeed height. To do so, loosen the mounting bolts
to adjust the height of the supports (3).
2. Check the levelling. Observe the correct infeed and outfeed heights.
Depending on the system concept, different heights may be useful. The
system design engineer will comment on this.
