Repair
Replacing the belt
63
 Removing the drive-
and deflection drum
Carry out the following work steps:

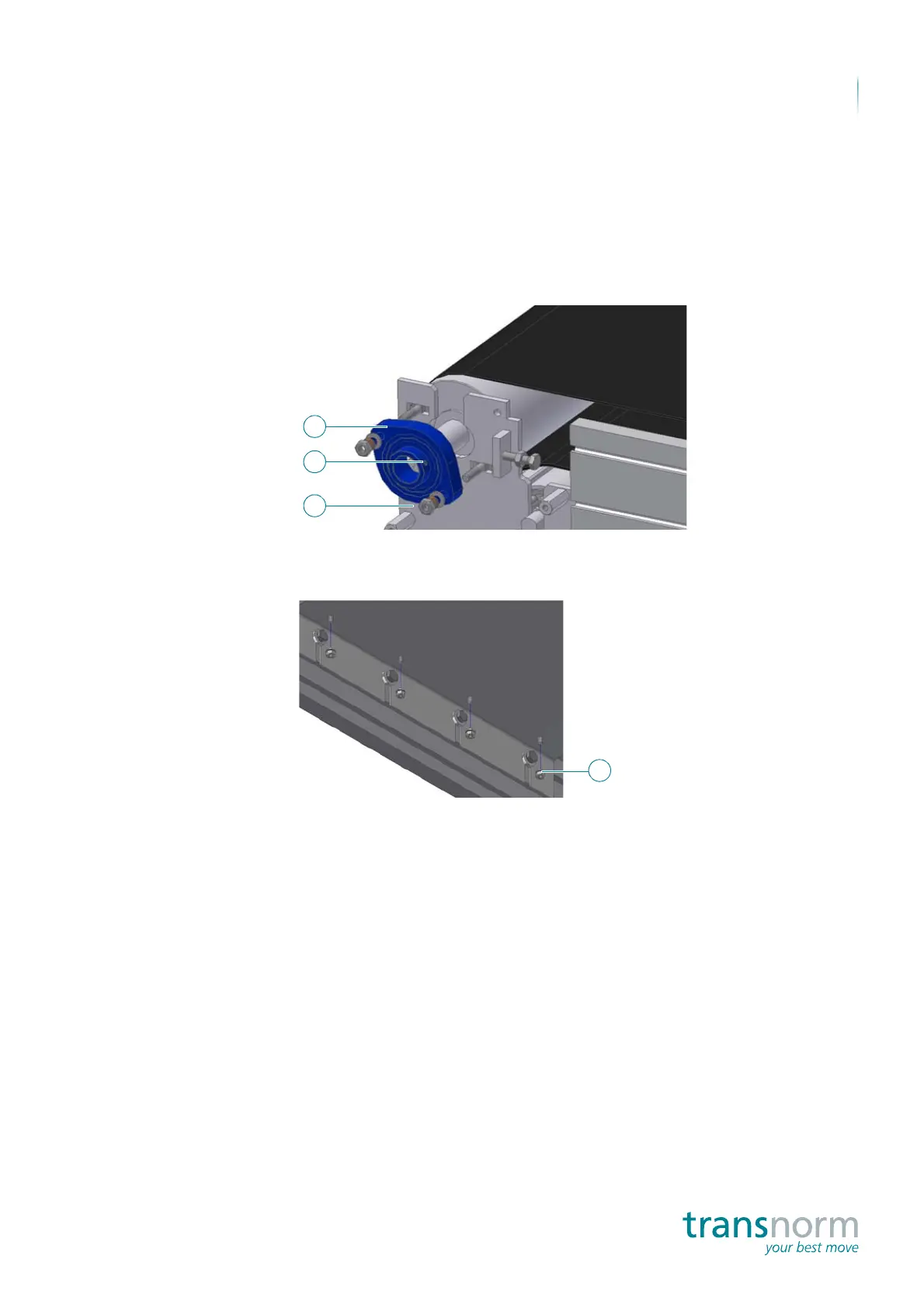

1. Remove the joining elements of the flange bearings (1) completely.
2. Loosen the grub screws of the flange bearings (2) on the deflection side
and drive side.
3. Pull the flange bearing (3) off the drive- and deflection drum.
4. With belt guidance: Remove the joining elements (4) and upper part of
the belt guidance.
1
2
3
4
