Repair
Tensioning / adjusting the belt
73
2. Evenly tension the belt by turning the tensioning bolts on both sides of
the snub roller.
The belt will have a delayed response to the adjustment. Therefore, only
adjust the tensioning bolts slightly. Wait until the belt completes several
rotations before adjusting again.
? During tensioning, the belt may only be stretched by maximum 0.2 %.
Mark the belt with adhesive tape or a thin marker to check the
stretching of the belt.
3. Switch on the machine.
4. Check that the belt runs correctly.
5. Switch off the machine.
6. Repeat steps 2 to 5 until the belt runs correctly.

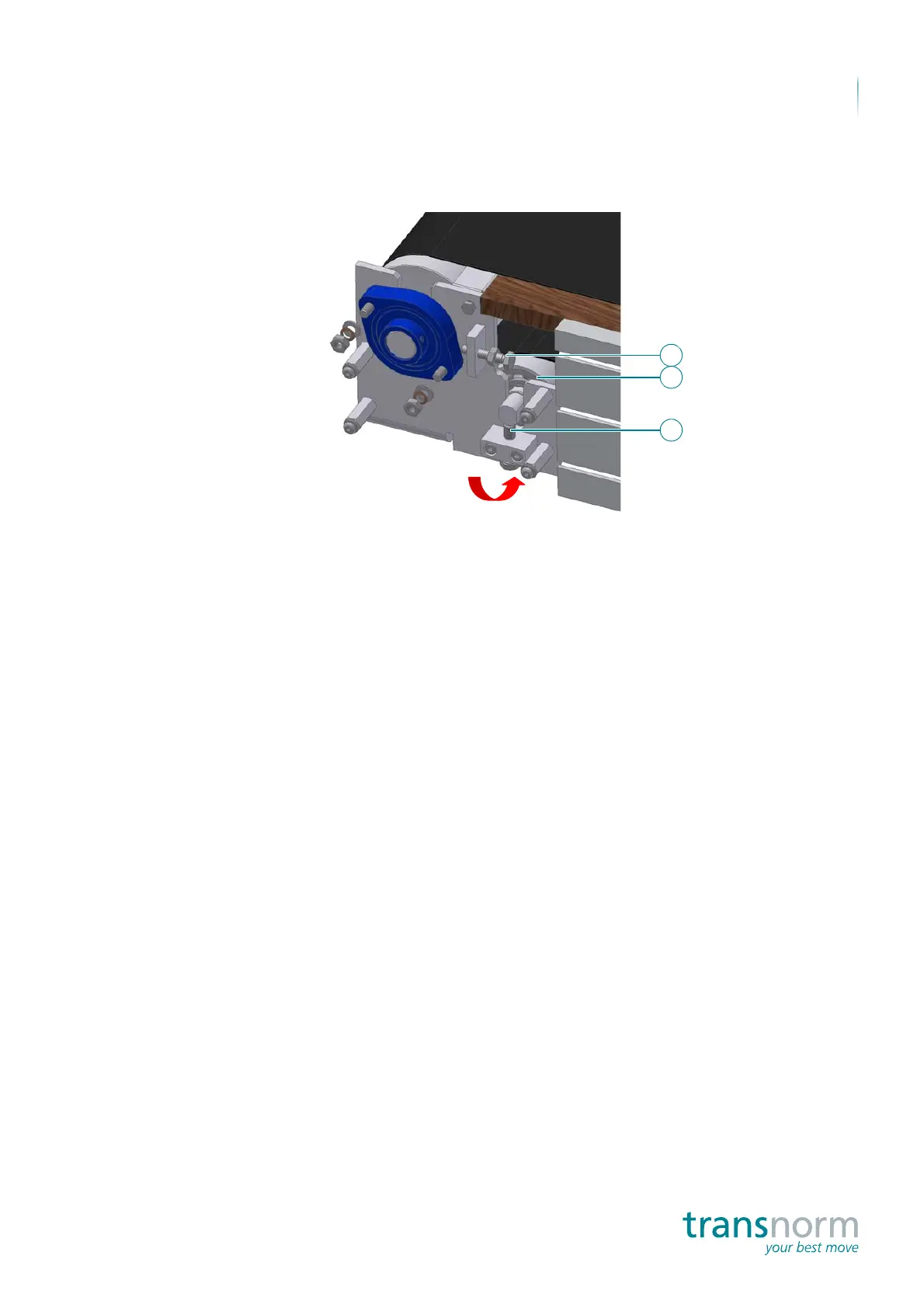

7. Only adjust the tensioning bolts of the flange bearings (3) if the belt
moves off sidewards.
8. Firmly tighten all joining elements.
The belt has been tensioned and adjusted.
Fitting the covers
Carry out the following work steps:
Fit the covers.
The covers have been fitted.
The belt has been tensioned and adjusted.
