Repair
Replacing the gear motor
78
Operating instructions: Belt conveyor TS 1208
Version 1.6ENG, 10/04/2018

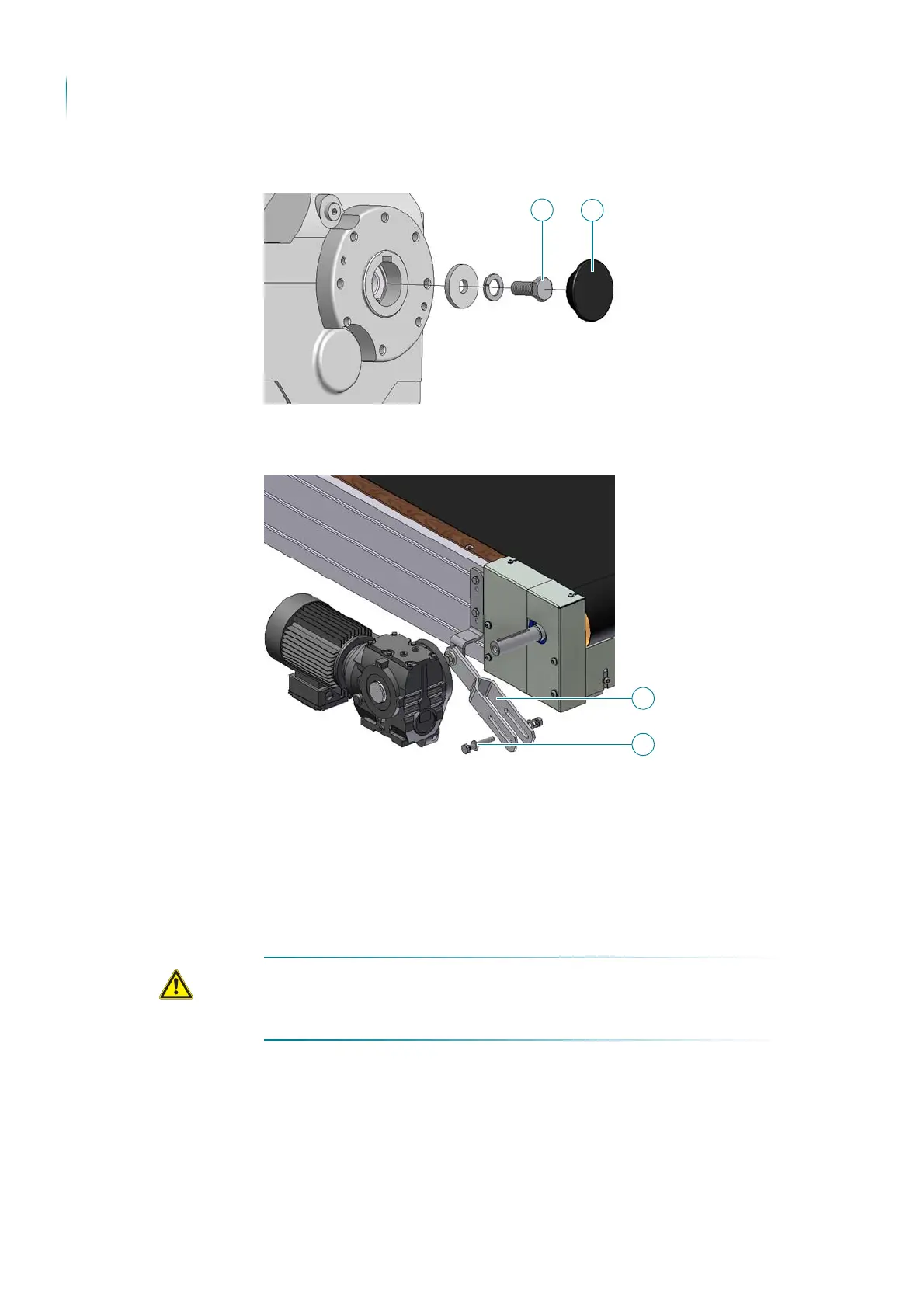

3. Remove the joining elements (2).
4. Remove the joining elements (3).
5. Swivel down the torque arm (4) and pull the gear motor off the shaft.
6. Place the gear motor onto a suitable underlay.
 The gear motor has been removed.
 Removing the gear
motor, motor posi-
tion M4
WARNING
Increased risk of accident!
The motor may tilt and crush parts of the body.
 Secure the motor to prevent it falling.
 Use hoists to lift the motor on and off.
Carry out the following work steps:
1. Remove all power supply lines from the motor.
2
1
3
4
