transnorm TS 1208 - Page 79

Repair
Replacing the gear motor
79

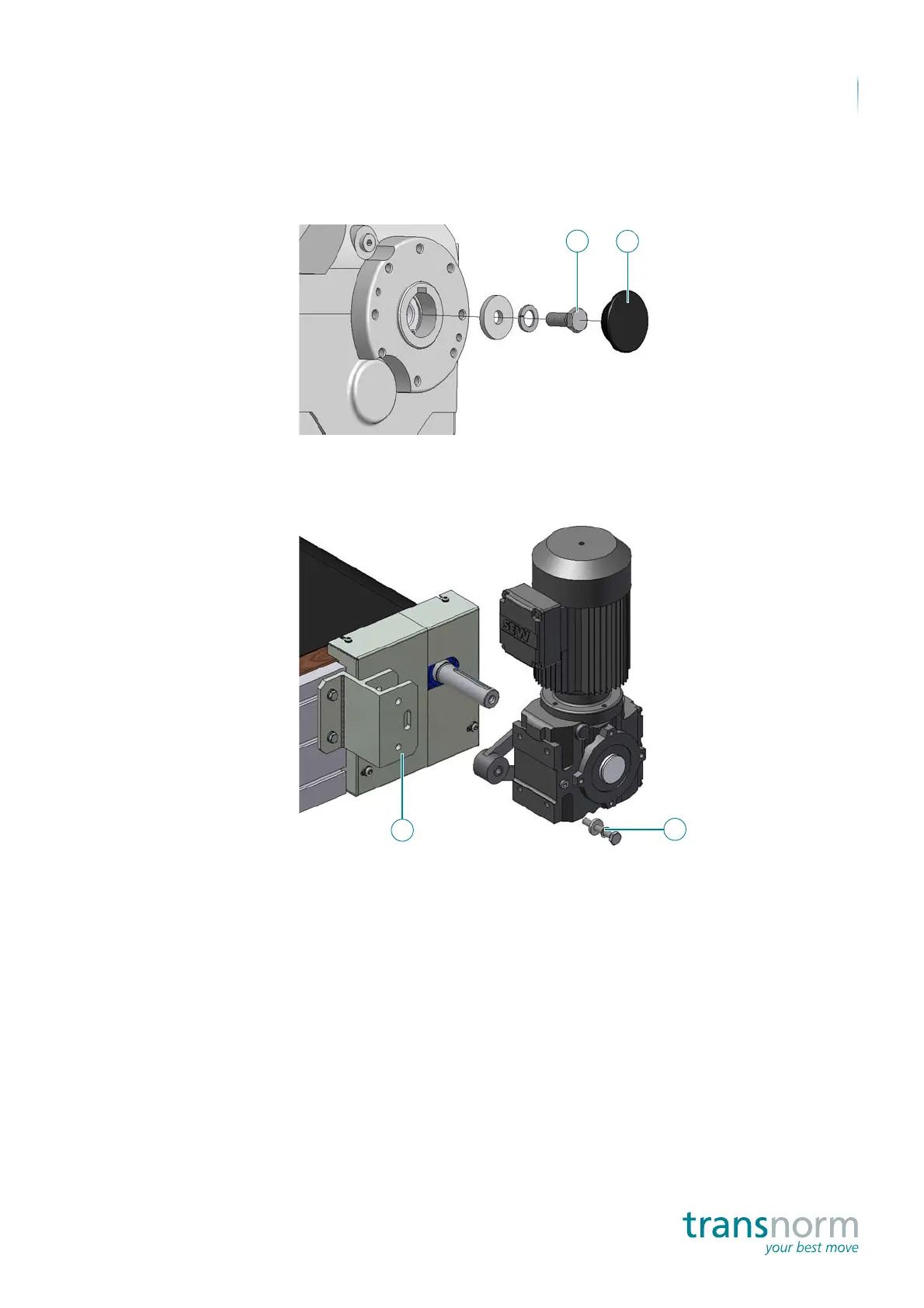

2. Remove the cap (1).
3. Remove the joining elements (2).
4. Remove the joining elements (3).
5. Swivel the gear motor out of the torque arm (4) and then pull it off the
shaft.
6. Place the gear motor on a suitable underlay.
 The gear motor has been removed.
2
1
3
4
