Repair
Replacing the drum
90
Operating instructions: Belt conveyor TS 1208
Version 1.6ENG, 10/04/2018

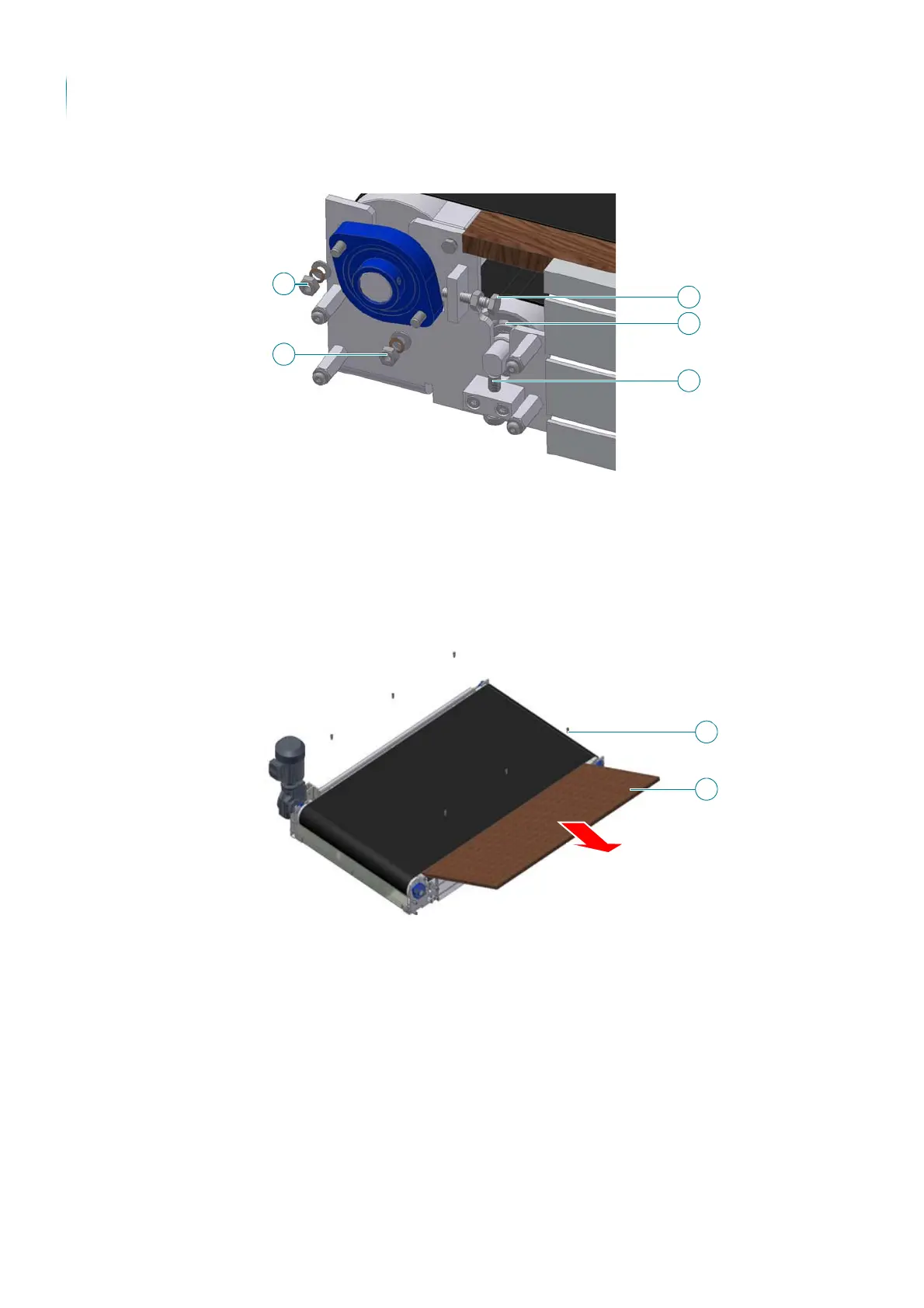

3. Turn back the tensioning bolts of the flange bearings (4).
 The belt has been loosened.
 Removing the
bed
Carry out the following work steps:
1. Remove the joining elements (1) of the bed.
2. Lift off the bed (2) and remove it sidewards.
 The bed has been removed.
1
2
3
3
4
2
1
