Repair
Replacing the drum
91
Removing the drive-
and deflection drum

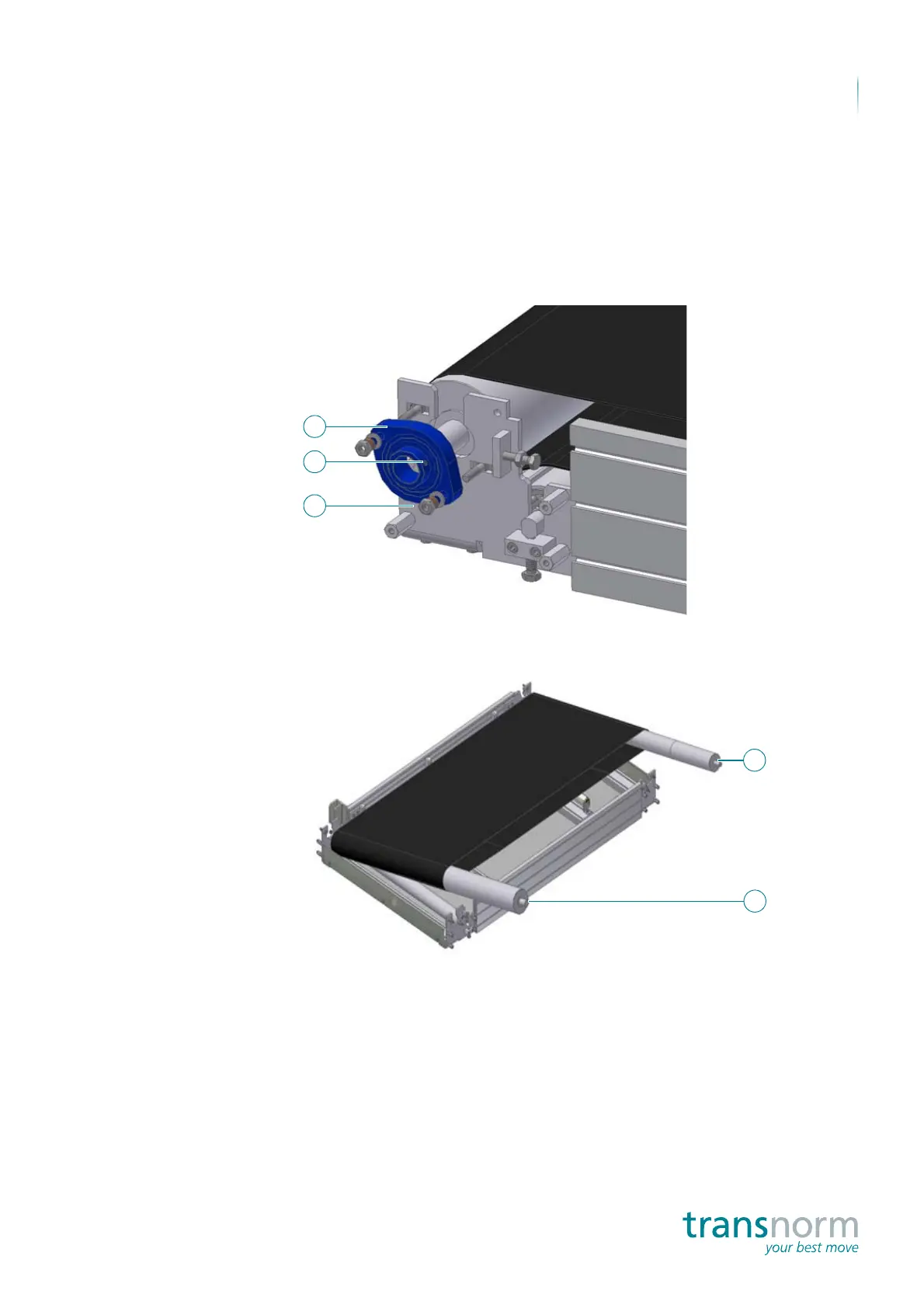

Carry out the following work steps:
1. Remove the joining elements of the flange bearings (1) completely.
2. Loosen the grub screws of the flange bearings (2) on the deflection and
drive side.
3. Pull the flange bearings (3) off the drive- or deflection drum.
4. Angle the drum (1) or (2) on one side and pull it out.
The drive- or deflection drum has been removed.
