10-43

Troubleshooting > Clearing Paper Jams

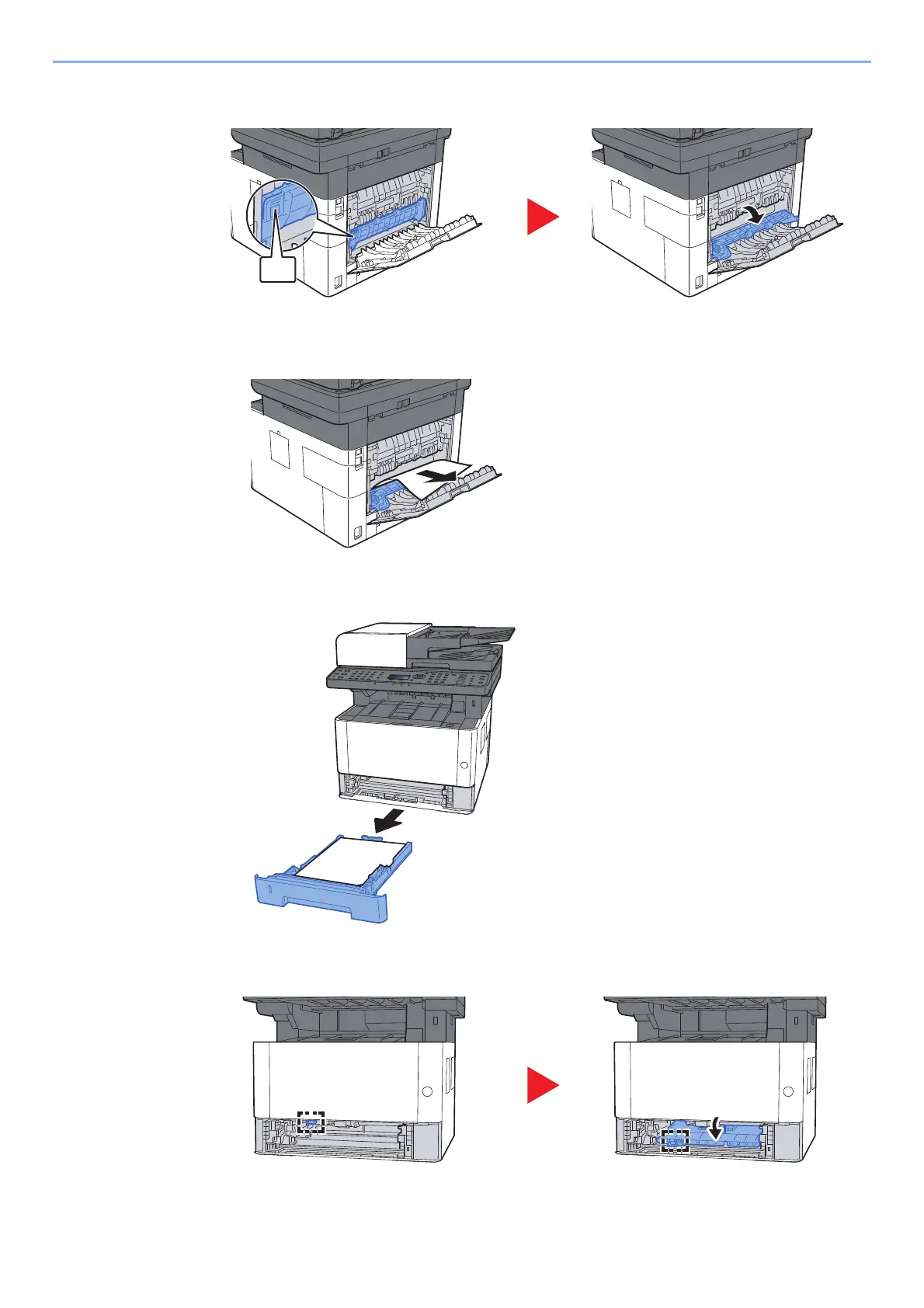

Open the fuser cover (D).

Remove any jammed paper.

Pull Cassette 1 out toward you until it stops.

Open Feed Cover.
