10-44

Troubleshooting > Clearing Paper Jams

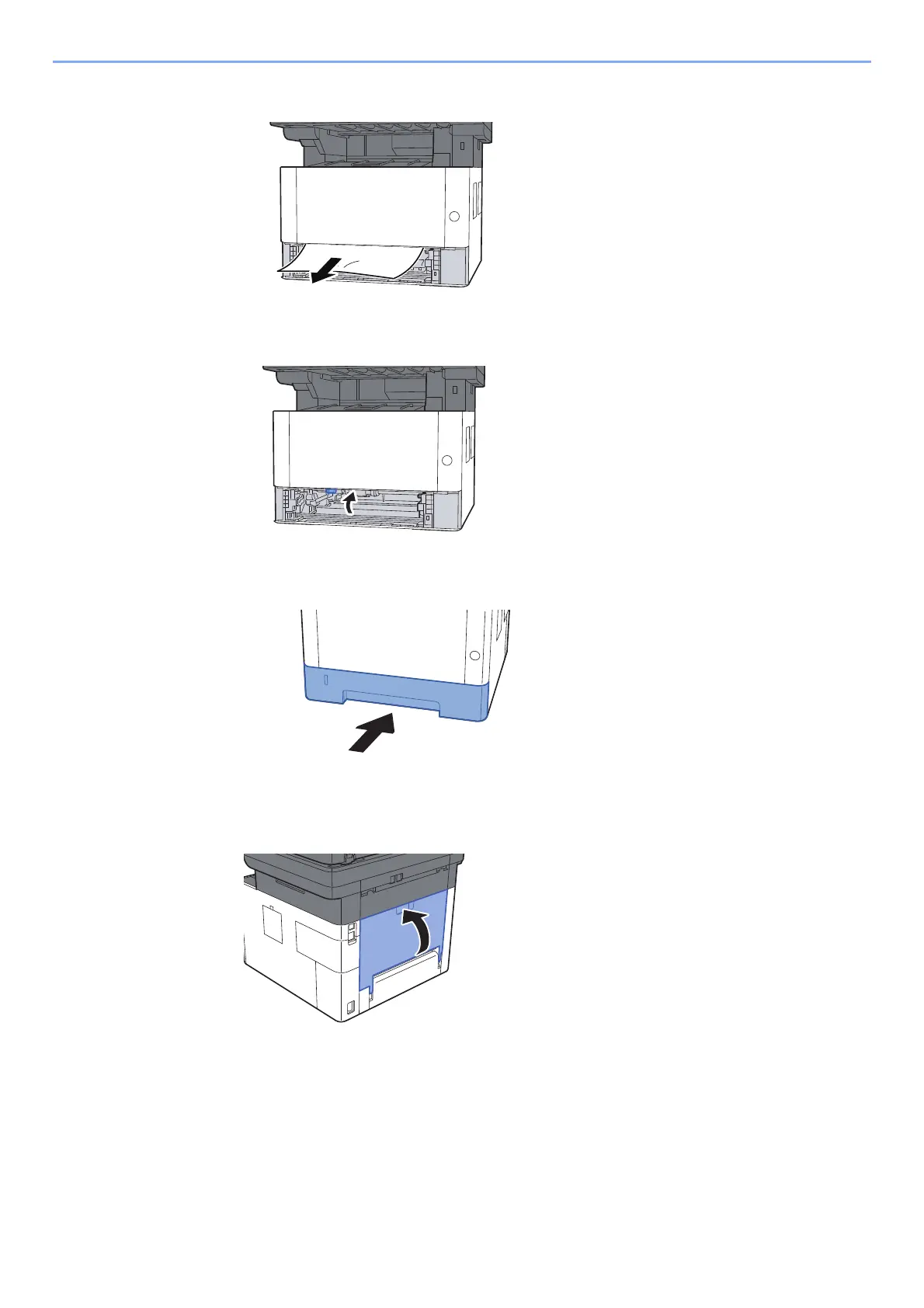

Remove any jammed paper.

Push Feed Cover back in.

Push Cassette 1 back in.

Push Rear Cover.
