Operation
Page 1: EMGSTOP CIRCUIT

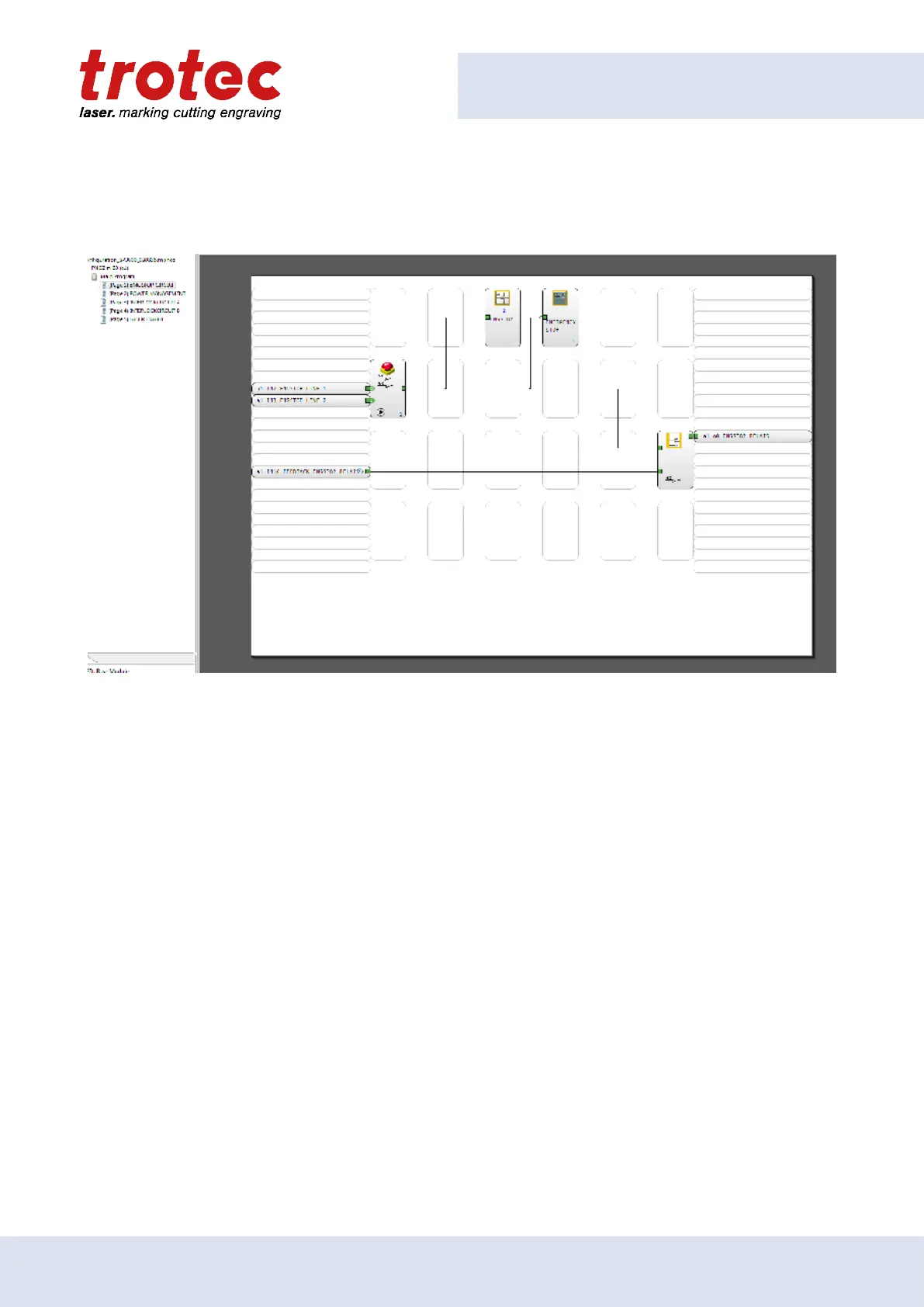

Click on page 1 to see the Emergency circuit:
Two EMERGENCY lines are connected to the machine by means of each EMERGENCY STOP button,
as shown on the left-hand side of the device. If both signals are synchronized, the signal is forwarded to
the relay module at the right edge; this output directly switches the safety relay 30A3 In the electric tub. If
none of the emergency buttons is actuated the LED "In1", "In2" and "out" should light! The input "Feedback
EMGSTOP-RELAIS" on the left side is used to monitor whether the safety relay 30A3 has actually switched.
If it's not switched, the line is highlighted in green and the output on the right is no longer released.
Page 2: POWER MANAGEMENT
Click on page 2 to see the POWER MANAGEMENT:
ENGLISH (Translation) 69
