Mortar-based installation into solid ceiling slab, "flange to flange"

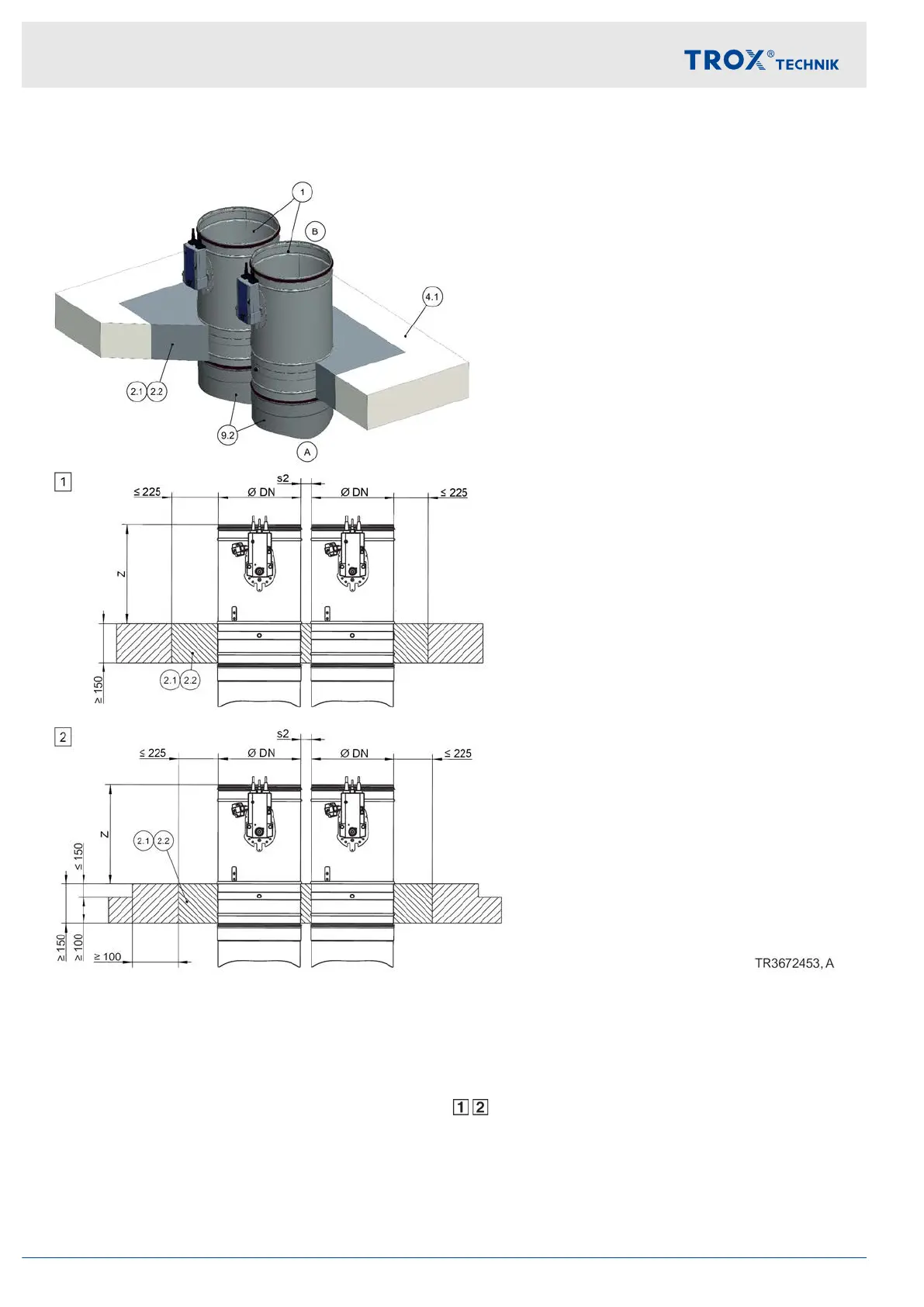

Fig. 82: Mortar-based installation in solid ceiling slab, "flange to flange", shown upright (also applicable for sus-
pended arrangement)
1 FKR-EU
2.1 Mortar
2.2 Reinforced concrete
4.1 Solid ceiling slab
9.2 Extension piece or duct
Z Spigot construction 370 mm
Flange construction 342 mm
s2 Spigot construction 40 – 225 mm
Flange construction 80 – 225 mm
Up to EI 120 S
