Mortar-based installation into a solid ceiling slab with screed and footfall sound insulation, "flange to
flange"

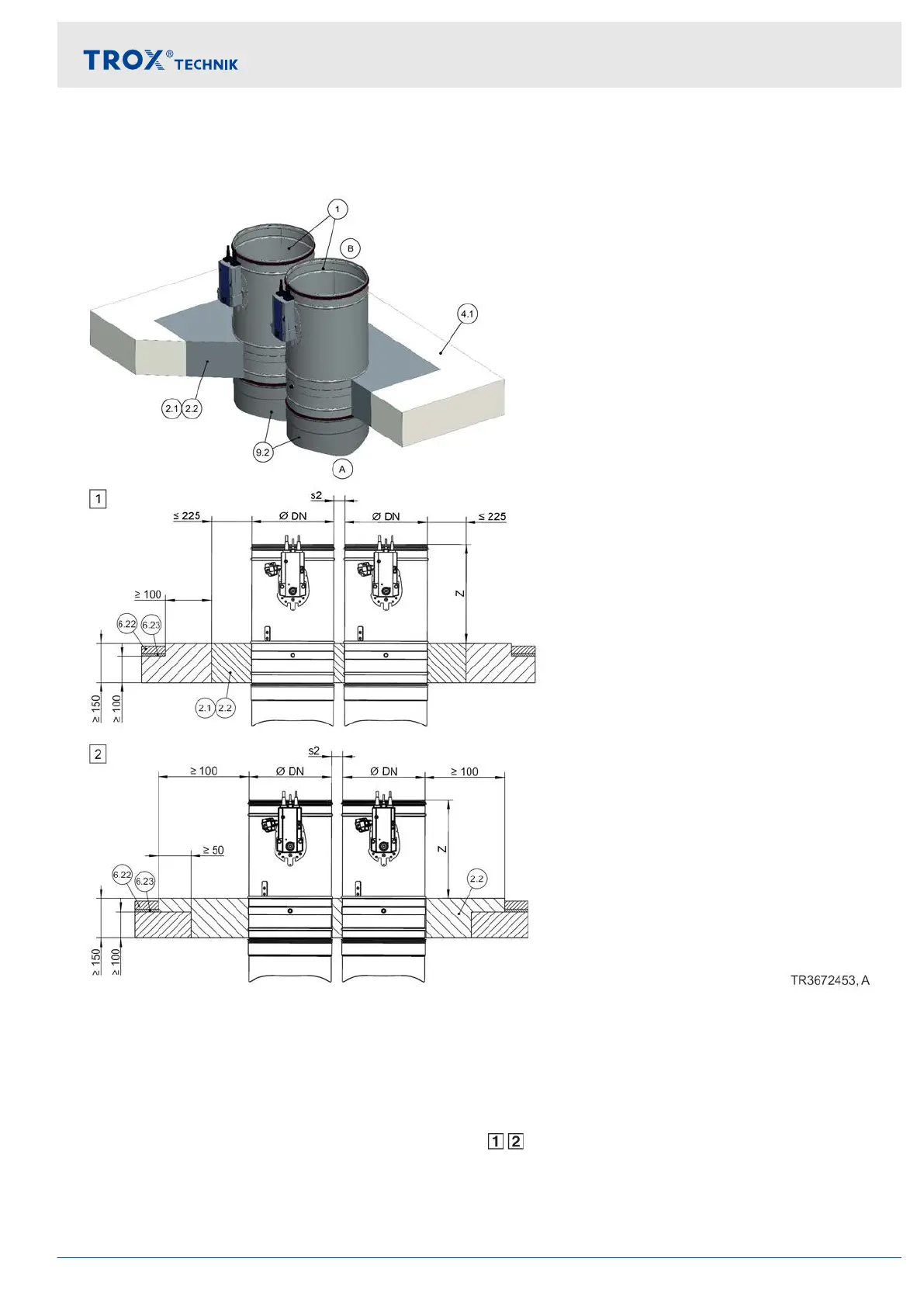

Fig. 83: Mortar-based installation in solid ceiling slab with screed and footfall sound insulation, "flange to flange",
shown upright (also applicable for suspended arrangement)
1 FKR-EU
2.1 Mortar
2.2 Reinforced concrete
4.1 Solid ceiling slab
6.22 Screed
6.23 Footfall sound insulation
9.2 Extension piece or duct
Z Spigot construction 370 mm
Flange construction 342 mm
s2 Spigot construction 40 – 225 mm
Flange construction 80 – 225 mm
Up to EI 120 S
Installation
Solid ceiling slabs > Mortar-based installation into solid ceiling s...
Fire damper FKR-EU 109
