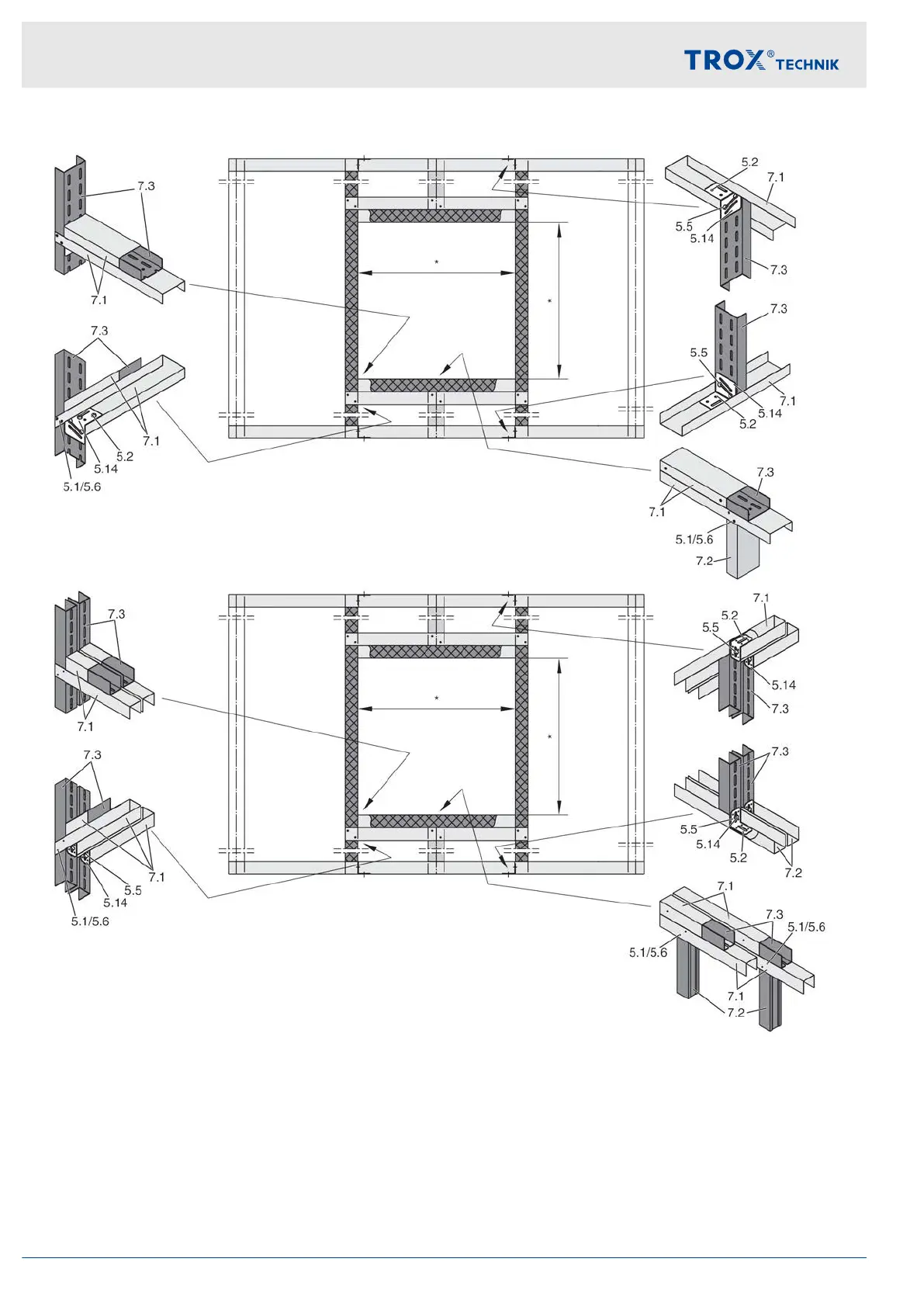

Fig. 34: Metal support structure of compartment wall, single and double stud system
5.1 Dry wall screw
5.2 Hexagon head screw M6
5.5 Carriage bolt, L ≤ 50 mm, with washer and nut
5.6 Steel rivet
5.14 Angle bracket
7.1 UW section
7.2 CW section
7.3 UA section
* Installation opening according to installation
details
Installation
Lightweight partition walls > General
Fire damper FKR-EU52
