Mortar-based installation into a lightweight partition wall, FKR-EU and FK2-EU combined

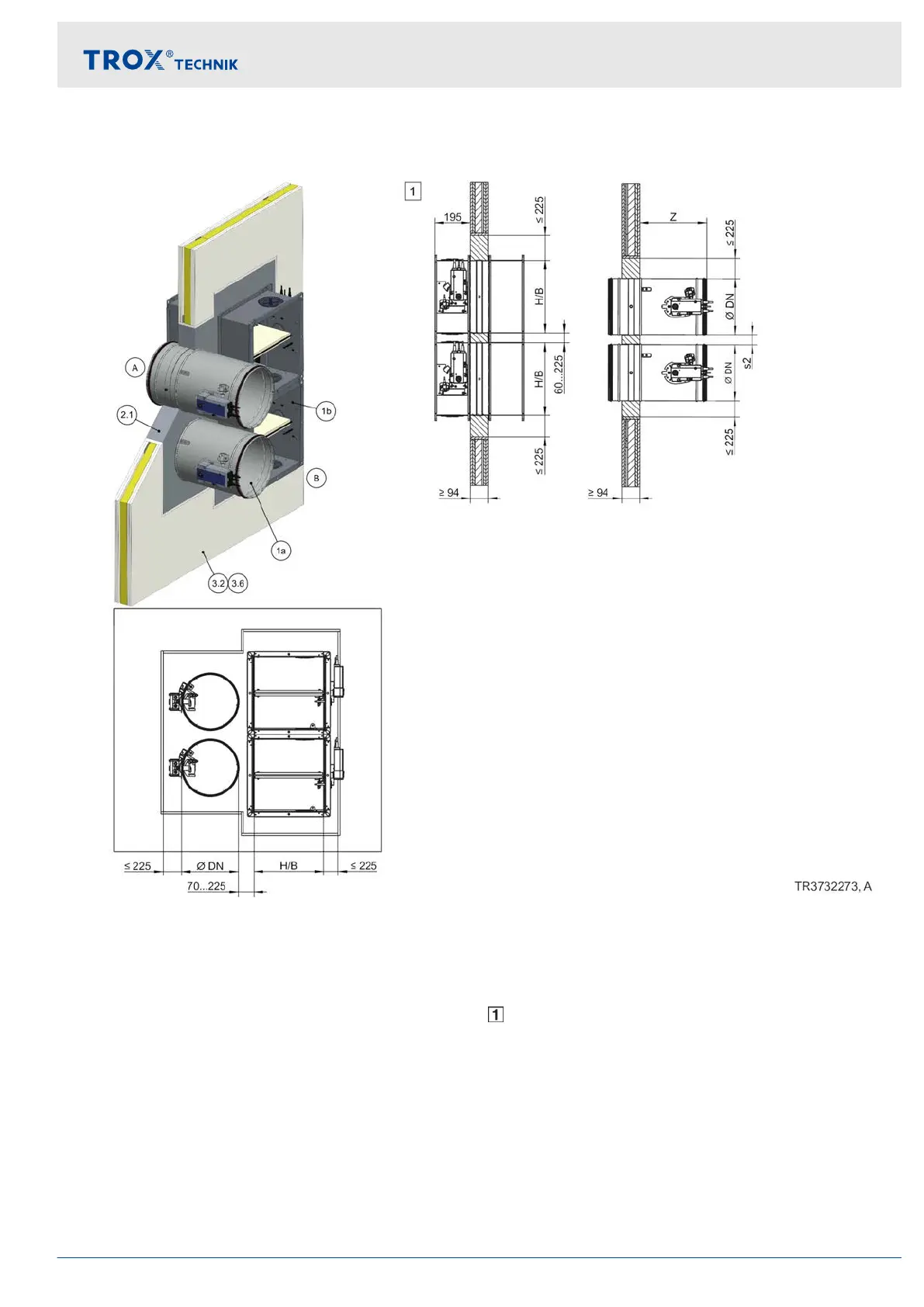

Fig. 38: Mortar-based installation into a lightweight partition wall, FKR-EU and FK2-EU combined
1a FKR-EU
1b FK2-EU up to B × H ≤ 800 × 400 mm
2.1 Mortar
3.2 Lightweight partition wall with metal support struc-
ture or steel support structure, cladding on both
sides
3.6 Compartment wall or safety wall with metal sup-
port structure, cladding on both sides
Z Spigot construction 370 mm
Flange construction 342 mm
s2 Spigot construction 40 – 225 mm
Flange construction 80 – 225 mm
Up to EI 90 S
Note on combined installation:
Total fire damper surface area ≤ 1.2 m².
The number of fire dampers in an installation opening is limited by their size (B × H for FK2-EU and /or
Æ nominal width for FKR-EU) and the overall area of the fire dampers (1.2 m²).
Alternative installation orientations of side-by-side, under or on top of one another possible. Details are available
upon request.
For installation details FK2-EU, see the installation and operating manual for this fire damper type.
Distance to load-bearing structural elements ≥ 40 mm
Installation
Lightweight partition walls > Mortar-based installation
Fire damper FKR-EU 57
