3.3. Replacing Platen Assembly

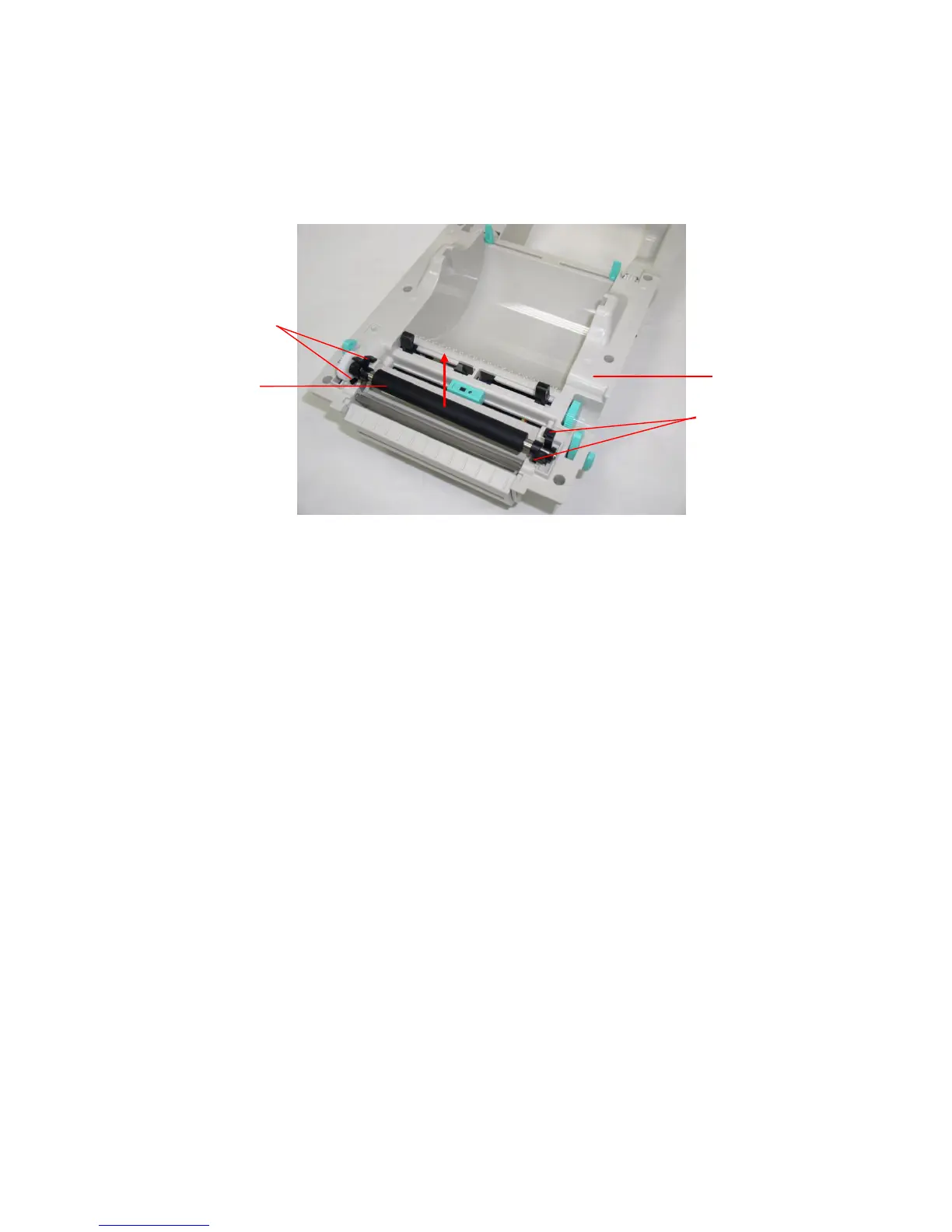

1. Squeeze two sides of platen assembly and take it out.

2. Replace a platen.

3. Reassemble parts in reverse procedures.

Platen

Assem

bly

Squeeze Here

Lower Inner Cover

Other manuals for TSC TDP-247

Need help?

Do you have a question about the TSC TDP-247 and is the answer not in the manual?

General

Print Method	Thermal Transfer / Direct Thermal
Communication Interface	USB 2.0, RS-232
Power Supply	100-240V AC, 50/60 Hz
Operating Temperature	41°F - 104°F (5°C - 40°C)
Operating Humidity	85% non-condensing
Max. Print Width	4.09" (104 mm)
Label Width	1.18" - 4.33" (30 mm - 110 mm)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
