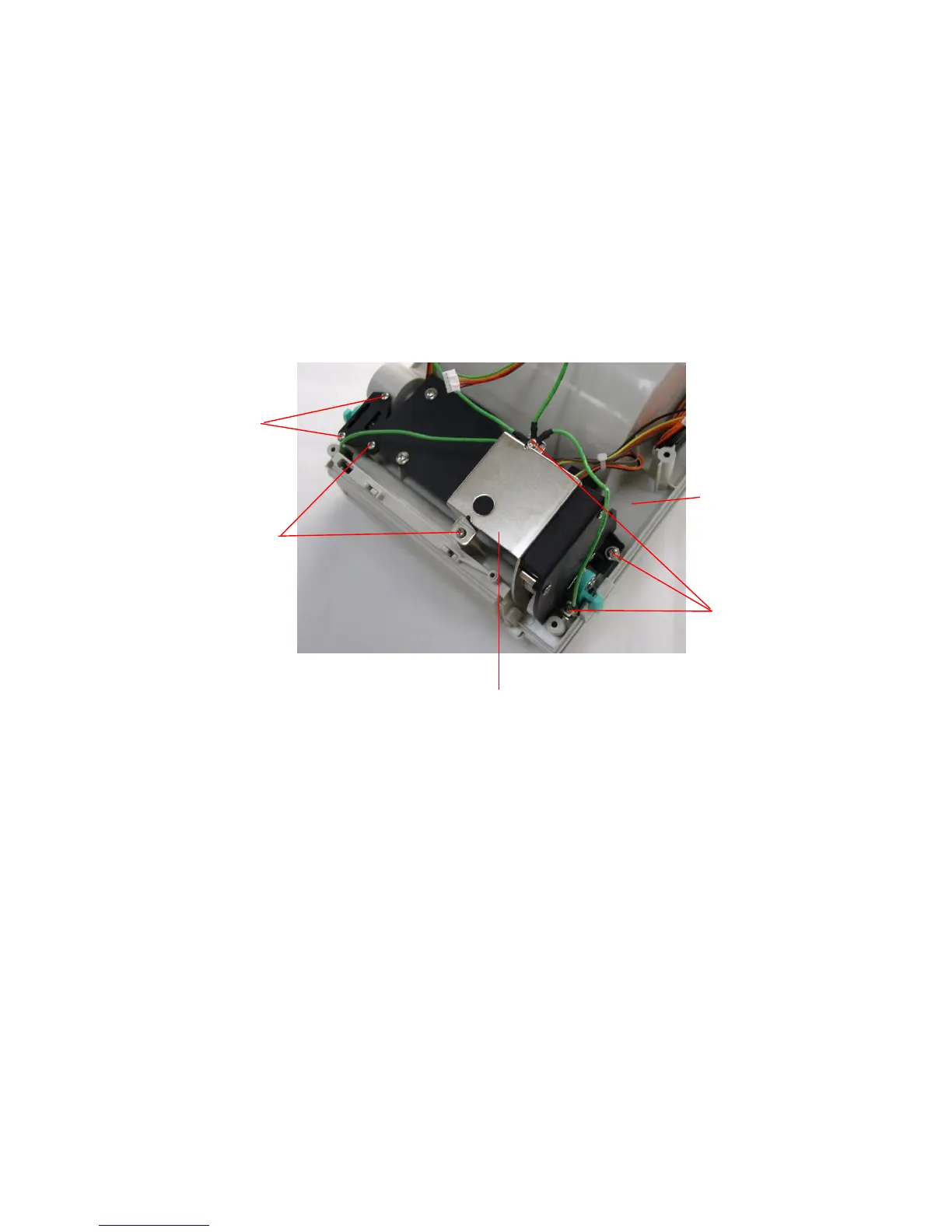

3.4. Replacing the Stepping Motor Assembly and Stepping

Motor

1. Please refer to 3.2 for disassembling the lower cover.

2. Upside down the lower inner cover.

3. Remove 7 screws of the stepping motor assembly.

4. Remove the 4 screws of the plastic laminate.

5. Remove the stepping motor assembly.

Screws

Lower Inner Cover

Stepping motor bracket

Assembly
