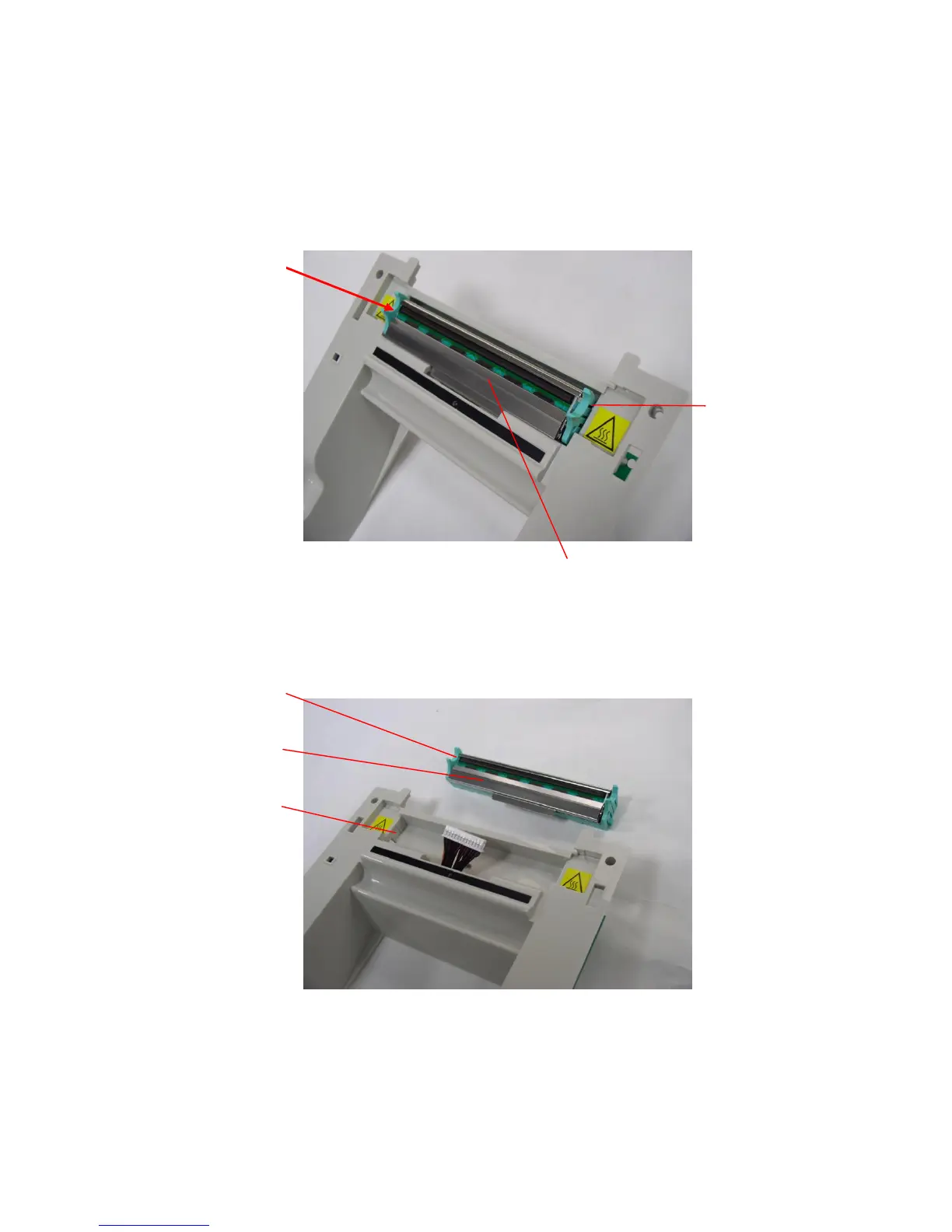

3.7. Replacing Print Head Module Assembly

1. Press right slot of the print head bracket and use a flat screwdriver to stick left

side of the printer head bracket then pick up the print head assembly.

2. Disconnect print head cables.

3. Reassemble parts in reverse procedures.

Print Head Mount

Print Head

Bracket

Bracket Concave

Stick Flat

Screwdriver Here

Print Head Module Assembly
