TSC TDP-247 Service Manual

60 pages

To Next Page

To Previous Page

3.13 Internal Ethernet Interface Installation (Option)

1. Break through the plastic partial tab at the rear side of lower cover to get the RJ45

interface opening.

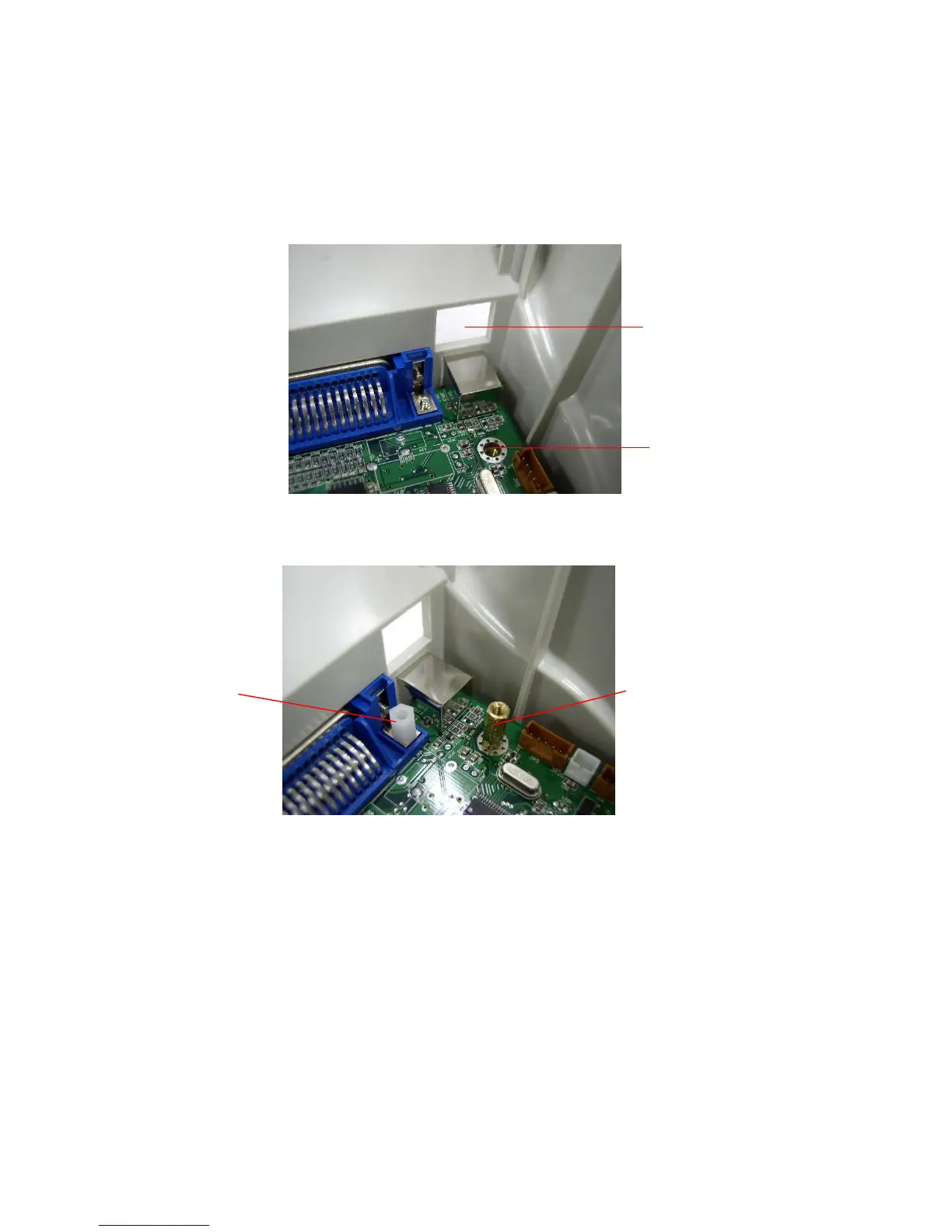

2. Remove the screw from the main board. Fasten the copper pillar and plastic pillar.

Plastic pillar Copper pillar

RJ45 interface opening

Remove the screw

Other manuals for TSC TDP-247

Need help?

Do you have a question about the TSC TDP-247 and is the answer not in the manual?

General

Print Method	Thermal Transfer / Direct Thermal
Communication Interface	USB 2.0, RS-232
Power Supply	100-240V AC, 50/60 Hz
Operating Temperature	41°F - 104°F (5°C - 40°C)
Operating Humidity	85% non-condensing
Max. Print Width	4.09" (104 mm)
Label Width	1.18" - 4.33" (30 mm - 110 mm)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
