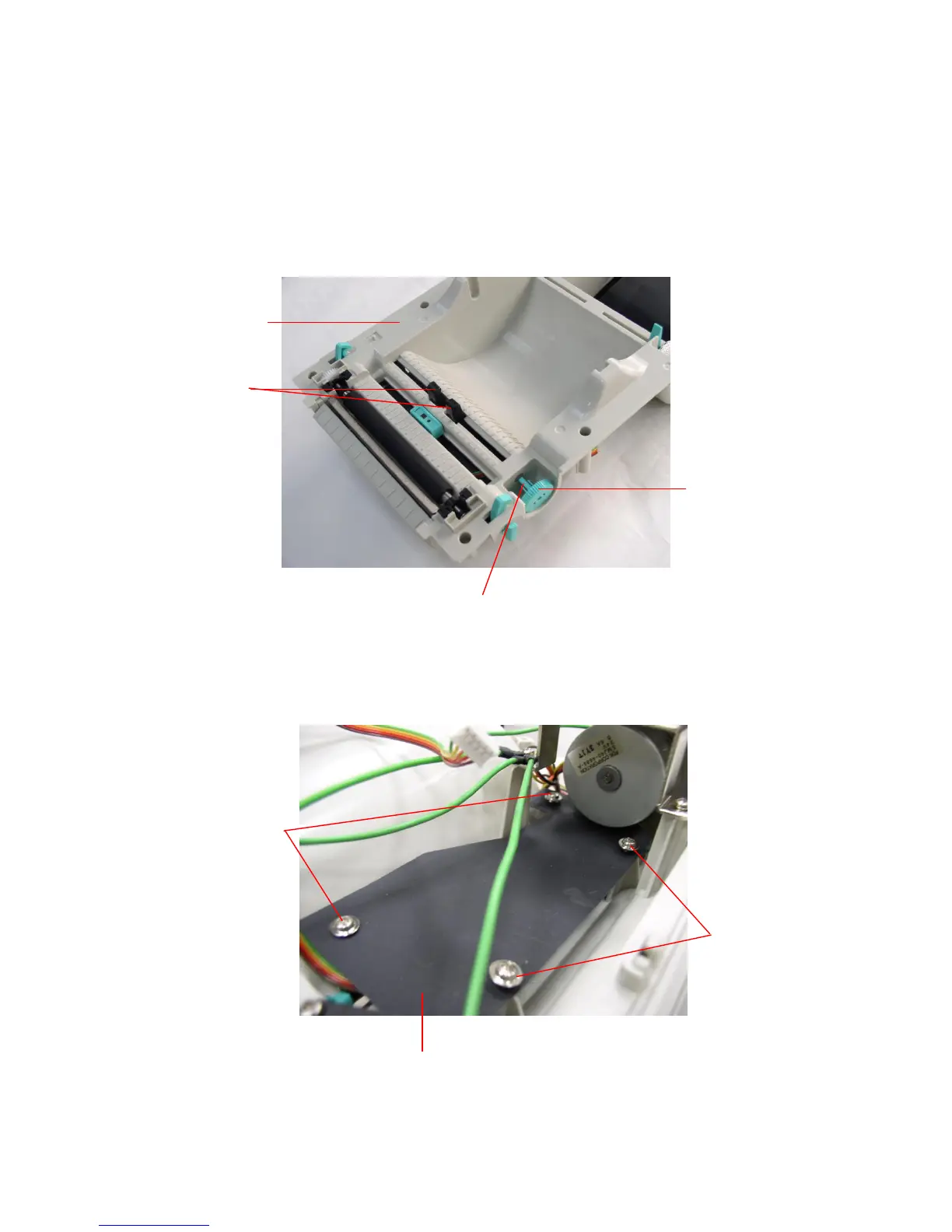

3.5. Replacing Label Guide Adjustment Knob Assembly

1. Please refer to 3.2 for disassembling the lower cover.

2. Shift the label guide to the center by rotating the label guide adjustment knob.

3. Use a flat screwdriver to press the nub to remove the label guide adjustment

knob.

3. Remove 4 screws.

Screws

Plastic Laminate

Label Guide

Adjustment Knob

Lower Inner Cover

Nub
