TSC TDP-247 Service Manual

13
2. ELECTRONICS

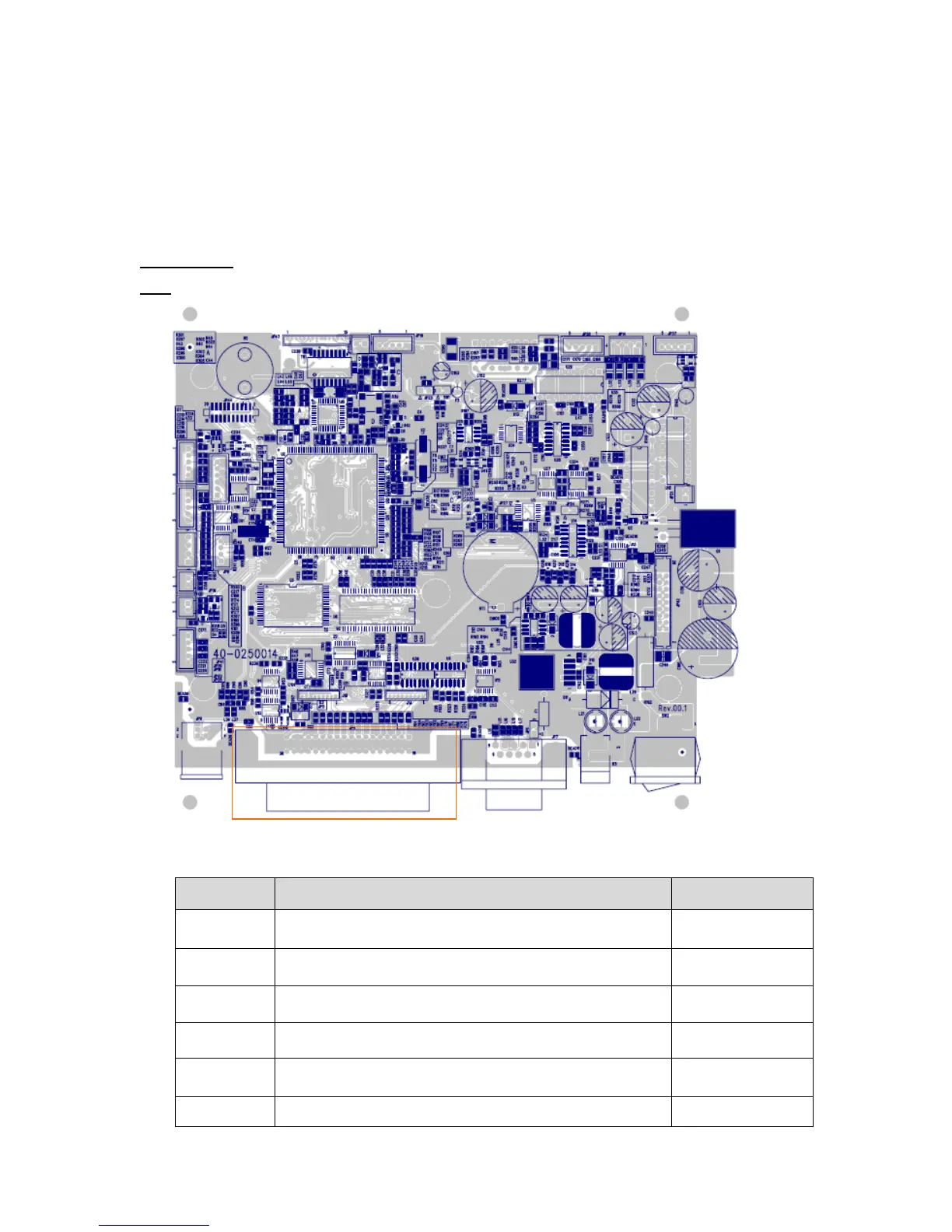

2.1 Summary of Board Connectors
Main board
Top
Connector
Description
Remark
1
Centronics port connector
JP4
2
USB connector
JP9
3
RS-232C connector
JP7
4
Micro processor
U2
5
RFID module connector
JP36
6
Head open sensor connector
JP16
1
2
3
4
5
6
7
7
7
10
11
12
14
13
15
16
8
17

TSC TDP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Communication Interface	USB 2.0, RS-232
Power Supply	100-240V AC, 50/60 Hz
Operating Temperature	41°F - 104°F (5°C - 40°C)
Operating Humidity	85% non-condensing
Max. Print Width	4.09" (104 mm)
Label Width	1.18" - 4.33" (30 mm - 110 mm)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
