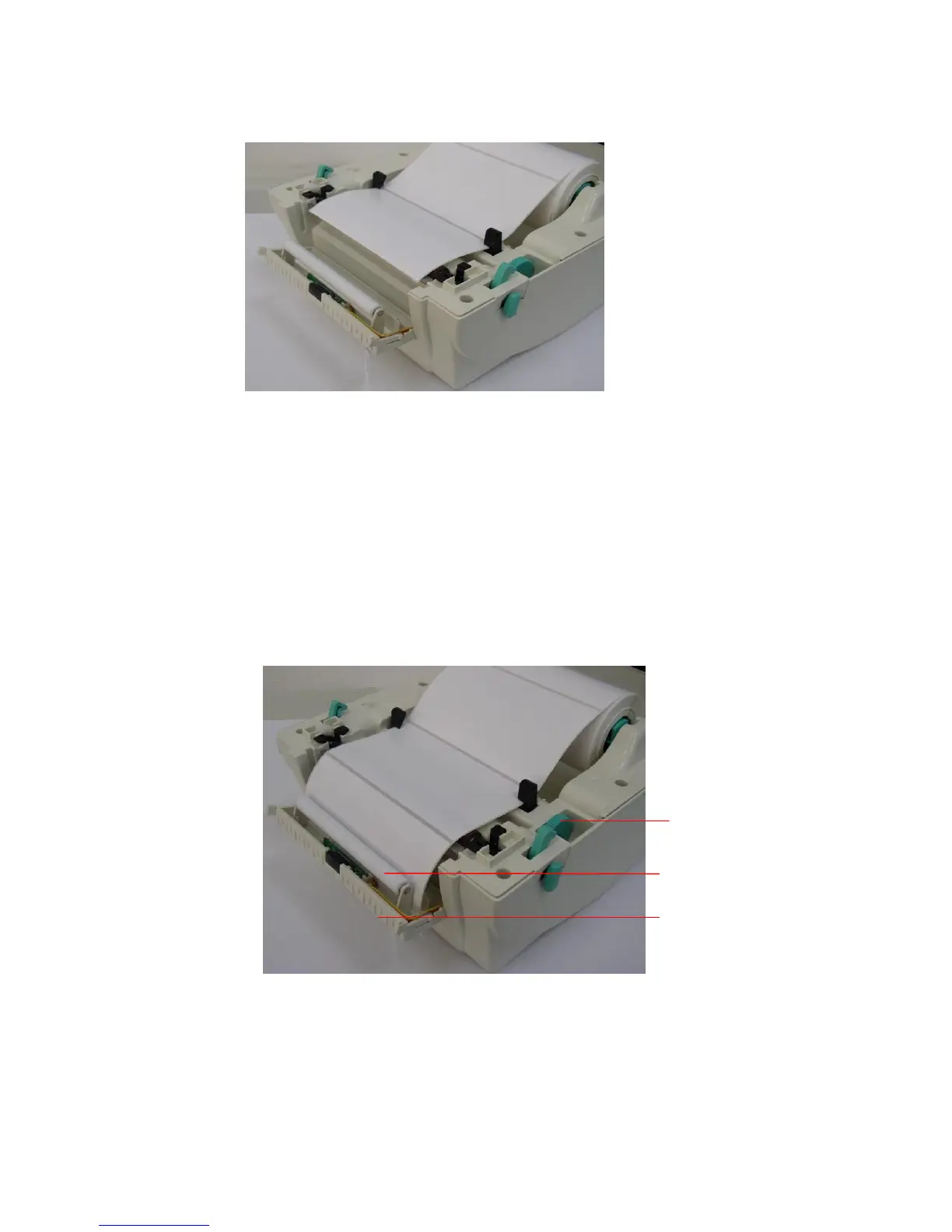

3.11.1 Loading Label for Peel-off Mode (Option)

Open the peel-off panel

1. Feed the label, printing side facing up, through the label guide and pass over the

platen.

2. Lead the liner paper through the label opening of peel off module, which is beneath

the roller.

3. Adjust the center-biased label guides in or out by turning adjustment knob so they

are slightly touch the edges of the label backing.

Loading label for peel-off mode

4. Push the peeler back to the printer.

5. Close the top cover.

Roller

Adjustment Knob

Peel-off panel
