3. REPLACE and INSTALL IMPORTANT PARTS

Please turn off the power switch and unplug the power adapter before replacing parts.

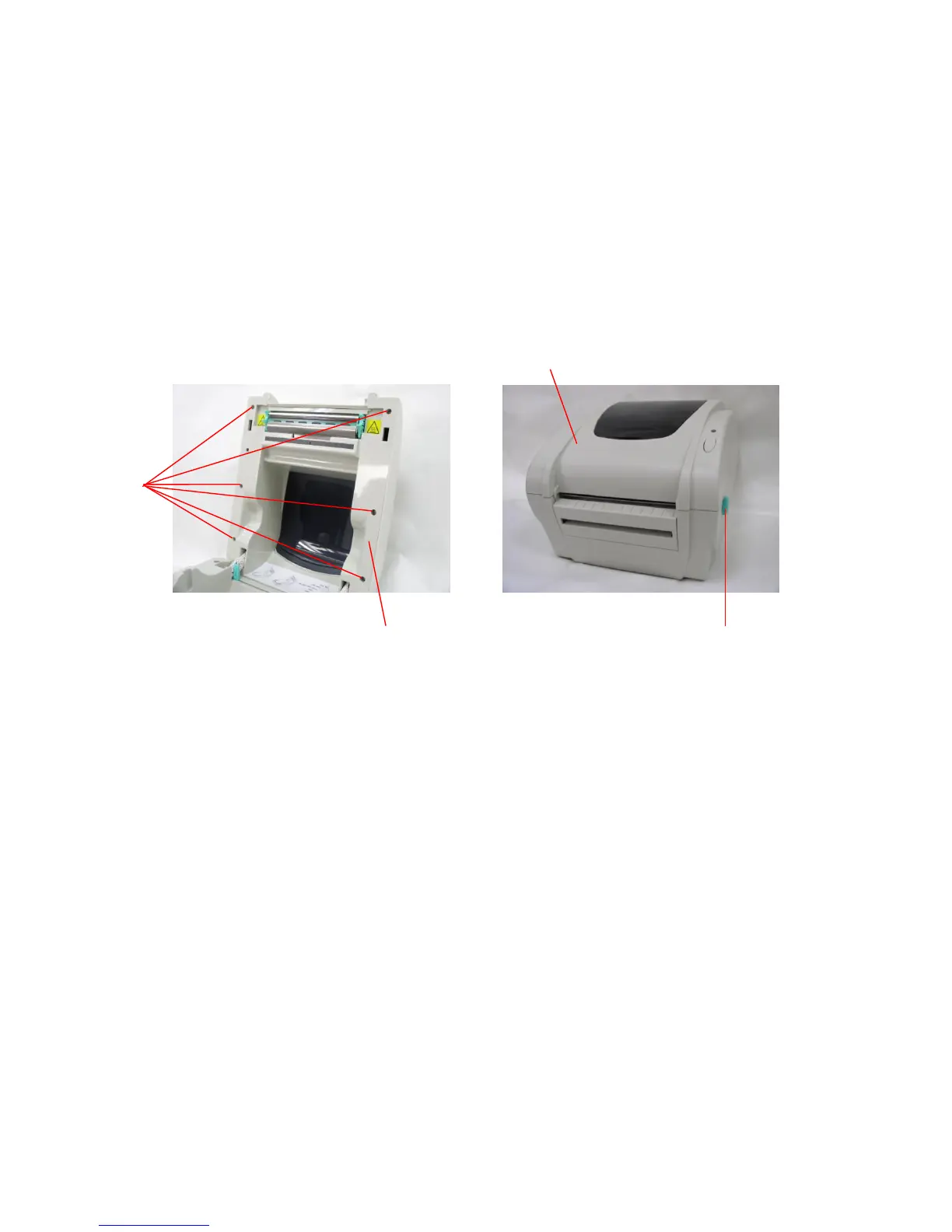

3.1. Replacing Top Cover

1. Open the printer top cover by pushing forward the top cover open levers.

2. Use a screwdriver to remove 6 screws on the top inner cover.

3. Remove the top cover and replace a new one.

4. Reassemble parts in reverse procedures.

Screws

Top Cover

Top Cover Open Lever

Top Inner Cover
