3.8. Replacing Head Open Micro Switch

1. Please refer to 3.1 for disassembling the top cover and top inner cover.

2. Remove JP16 harness from the PCB.

3. Remove 2 screws and remove the head open micro switch.

4. Reassemble parts in reverse procedures.

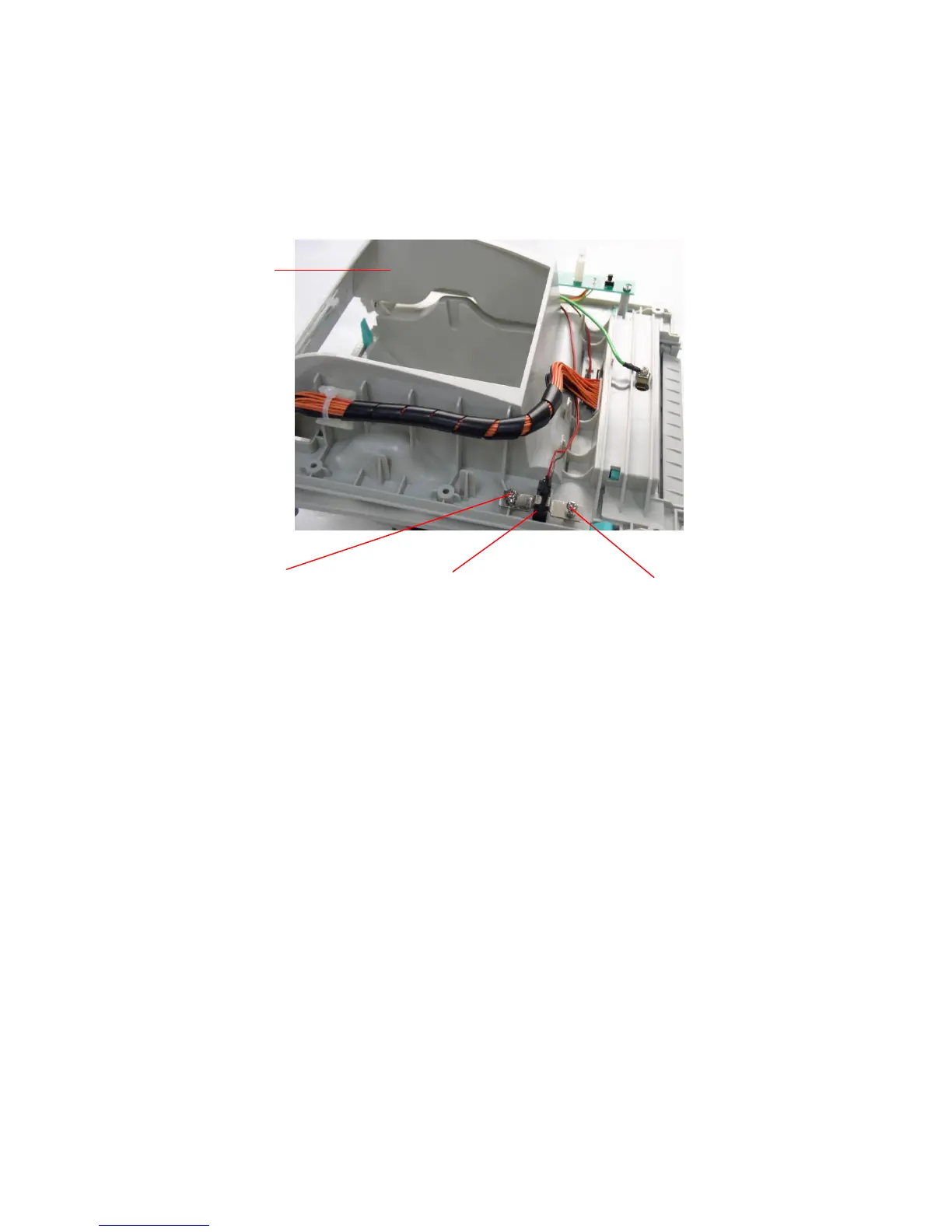

Screw

Top Inner Cover

Screw

Head Open Micro Switch
