3.12.1 Loading Label in Cutter Mode

1. Open the printer top cover.

2. Insert a paper roller into a paper roll

3. Place a label roll to label roll mount.

4. Feed the paper, printing side face up, through the label guide and pass over the

platen.

5. Lead the paper through the cutter paper opening.

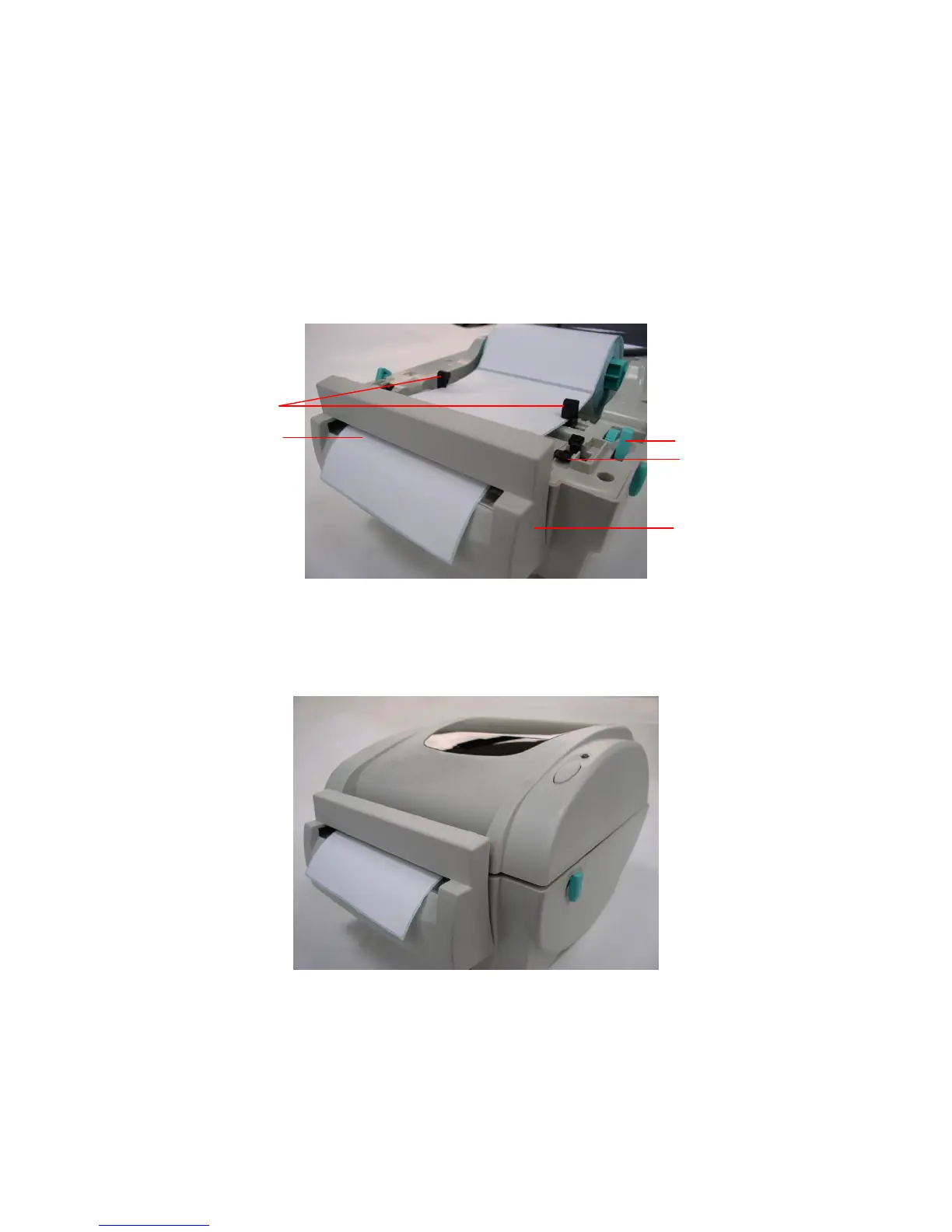

Label installation in cutter mode

6. Adjust the center-biased label guides in or out by turning adjustment knob so they

are slightly touch the edges of the label backing.

7. Close the top cover

. Label installation in cutter mode completed

Label

Guide

Cutter Paper Opening

Platen

Adjustment Knob

Cutter
