TSC TDP-247 Service Manual

45
Dump mode
Printer will enter dump mode after printing printer configuration. In the dump mode, all
characters will be printed in 2 columns as following. The left side characters are
received from your system and right side data are the corresponding hexadecimal
value of the characters. It allows users or engineers to verify and debug the program.

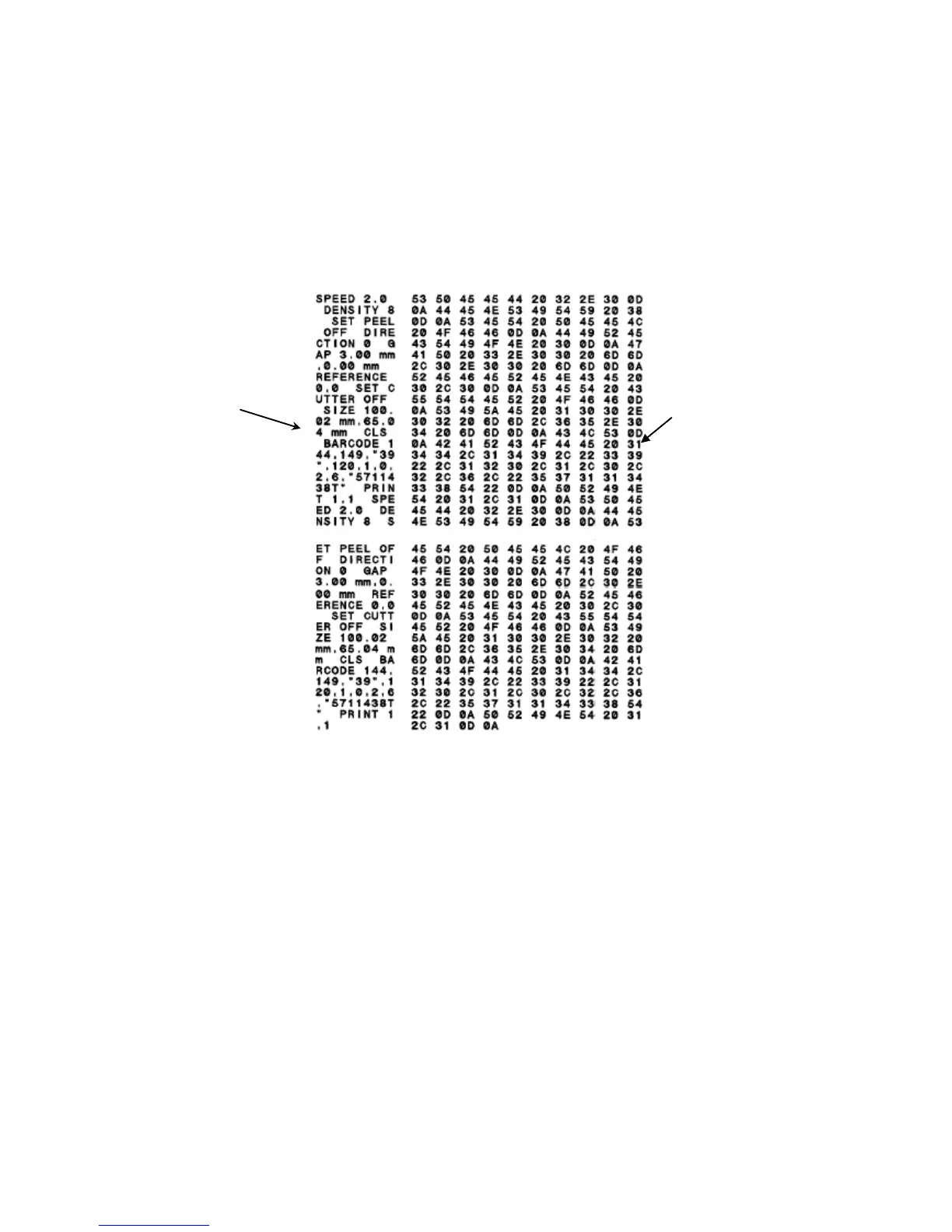

Dump mode printout
Note：
Turn off and on the power switch to reset the printer for normal printing.
ASCII Data
Hex decimal data
related to left
column of ASCII
data

TSC TDP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Communication Interface	USB 2.0, RS-232
Power Supply	100-240V AC, 50/60 Hz
Operating Temperature	41°F - 104°F (5°C - 40°C)
Operating Humidity	85% non-condensing
Max. Print Width	4.09" (104 mm)
Label Width	1.18" - 4.33" (30 mm - 110 mm)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
