3.12. Cutter Module Installation (Option)

2. Pull the top cover open levers to open the top cover.

3. Remove the front panel from the lower cover.

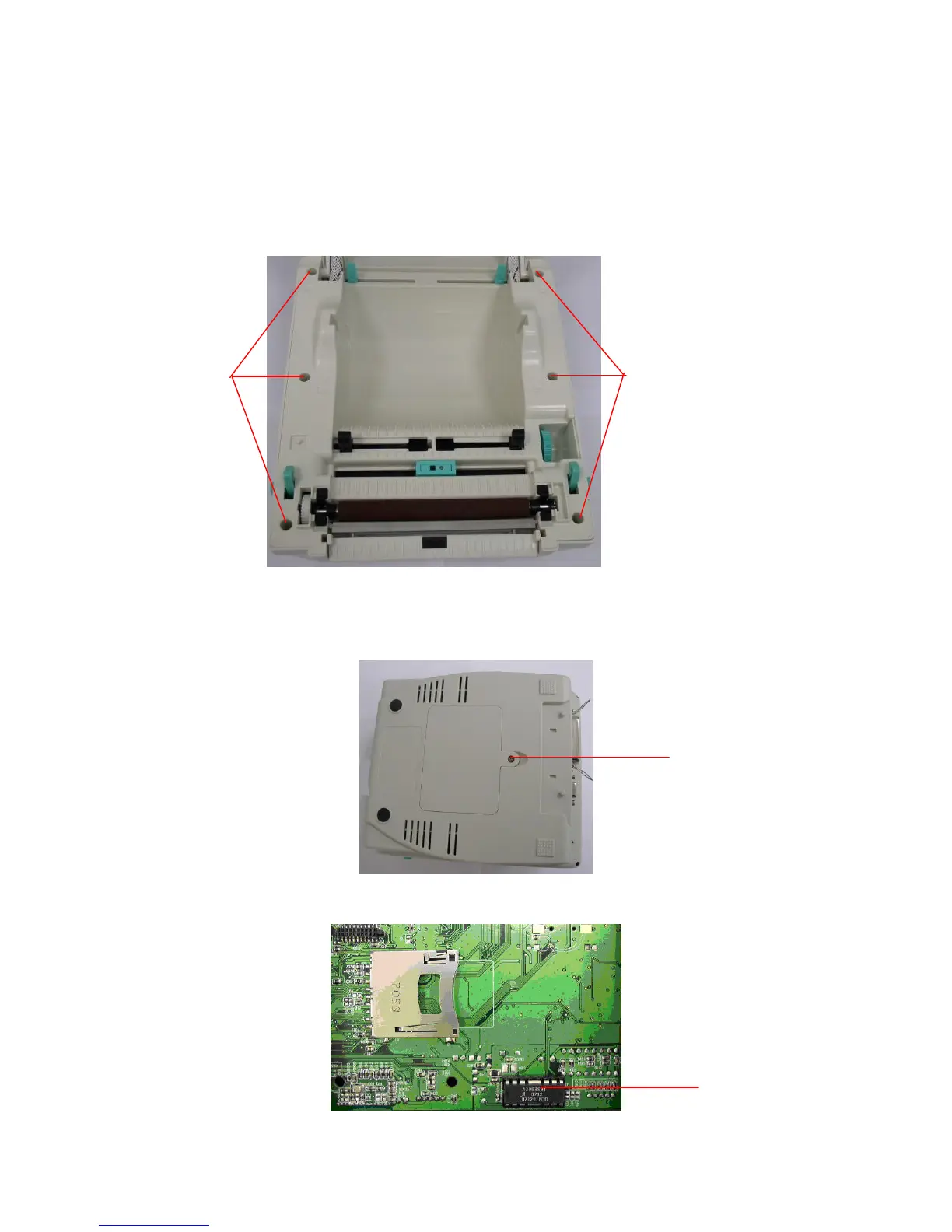

4. Use a screwdriver to screw off 6 screws on the lower inner cover.

Remove 6 screws from lower inner cover

5. Turn the printer upside down.

6. Remove the screw that fixes the memory card cover.

7. Plug in the Cutter Driver IC at U30 socket on the main board.

Screws

Screw

Cutter Driver IC
