6. Remove 2 screws from the stepping motor assembly; disconnect the stepping

motor from stepping motor bracket.

7. Replace the stepping motor.

8. Reassemble parts in reverse procedures.

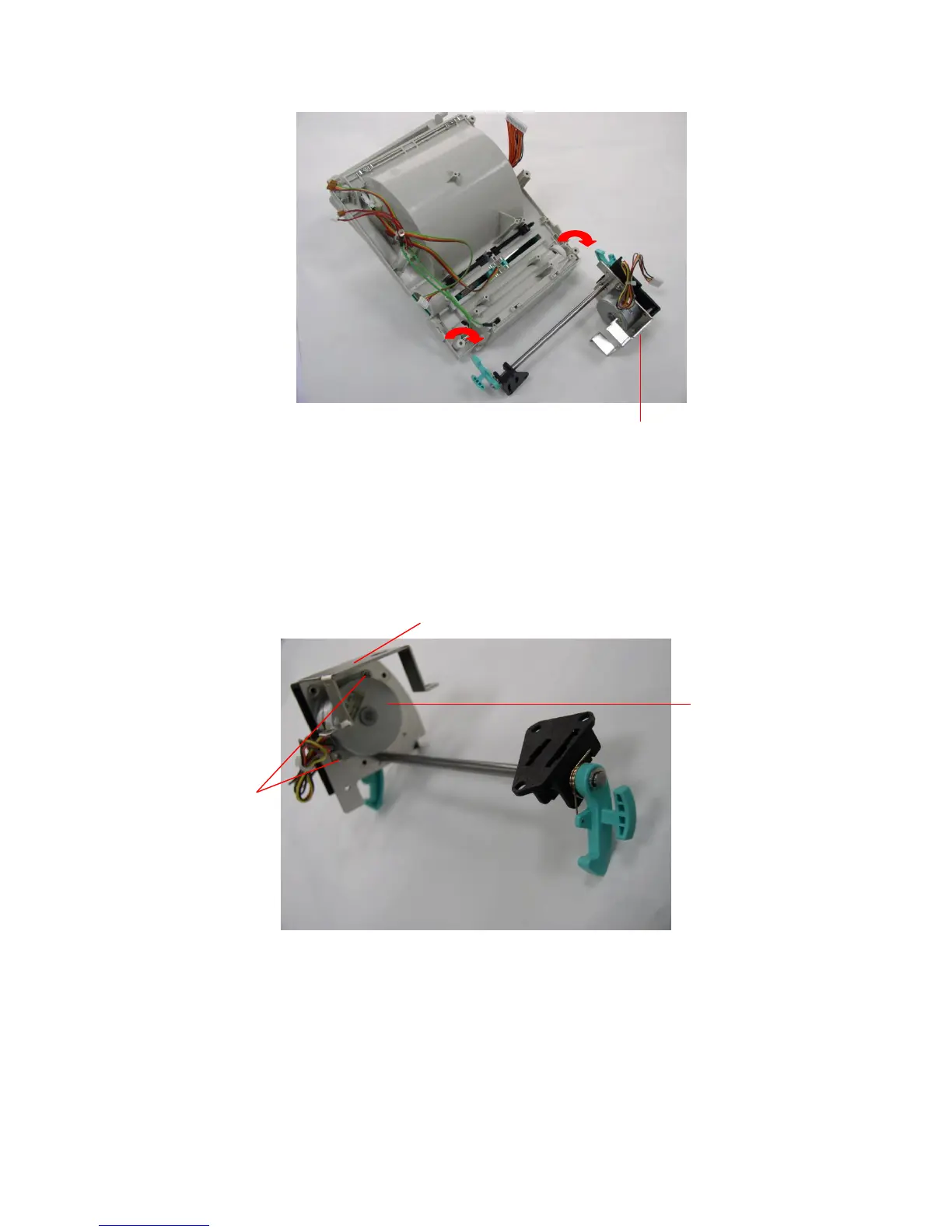

Screws

Stepping Motor

Stepping Motor Assembly

Stepping Motor bracket
