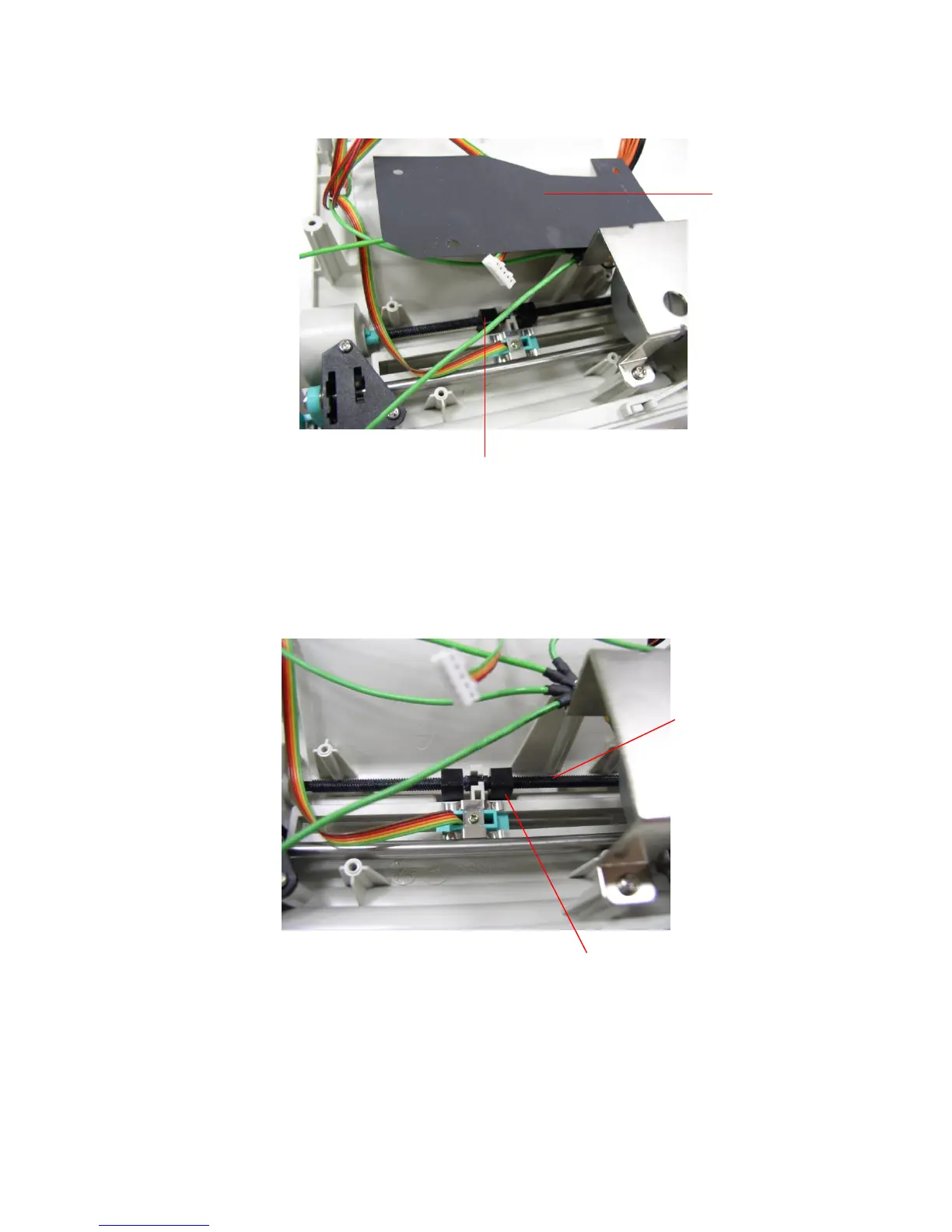

4. Remove the plastic laminate.

5. Replace the label guide assembly. Make sure the label guides are on the

center of the printer.

5. Reassemble parts in reverse procedures.

Plastic Laminate

Label Guide

Adjustment Assembly

Label Guide Adjustment

Assembly

Label Guide
