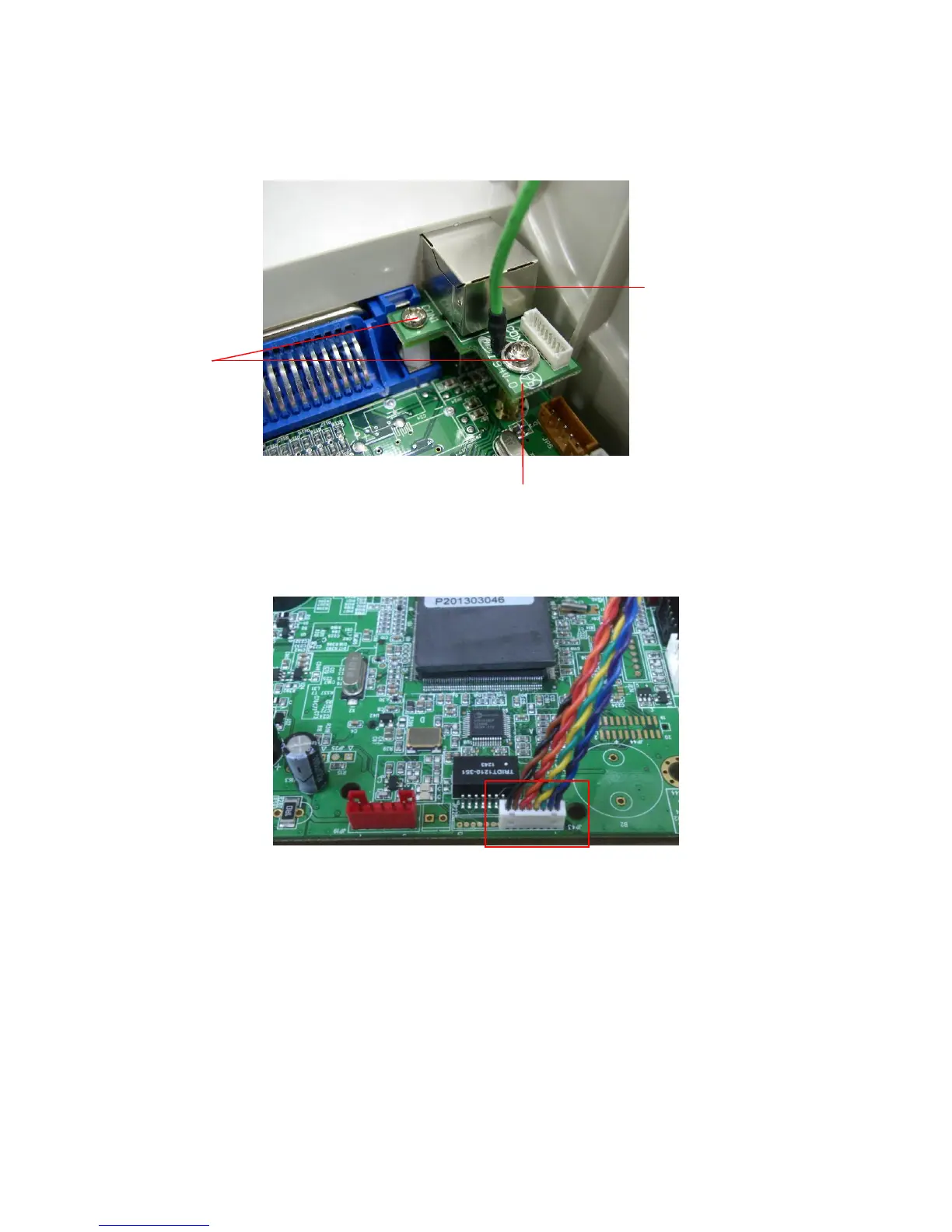

3. Fasten the RJ45 connector daughter board upon the plastic and copper pillar. The

ground wire from the mechanism must be screwed on the daughter board at

copper pillar.

Ground wire

Screws

RJ45 connector daughter board

4. Plug the 8 pin RJ45 cable to the RJ45 daughter board connector and main board

JP43 connector.

Note: This internal Ethernet interface only supports with the main board that has print

server function on board.

Other manuals for TSC TDP-247

Need help?

Do you have a question about the TSC TDP-247 and is the answer not in the manual?

General

Print Method	Thermal Transfer / Direct Thermal
Communication Interface	USB 2.0, RS-232
Power Supply	100-240V AC, 50/60 Hz
Operating Temperature	41°F - 104°F (5°C - 40°C)
Operating Humidity	85% non-condensing
Max. Print Width	4.09" (104 mm)
Label Width	1.18" - 4.33" (30 mm - 110 mm)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
