turbofan 30D Series Service Manual

4
2 Installation
Amendment 10
11 May 2015
Installation Requirements
This installation of this appliance must conform with local codes, or in the absence of local codes, must conform to the National Codes shown
below covering gas and electrical safety.
Australia: - AS5601 - Gas Installations.
New Zealand: - NZS5261 - Gas Installation.
Australia / New Zealand: - AS/NZS3000 - Wiring Rules.
United Kingdom: - Gas Safety (Installation & Use) Regulations 1998.
- BS6173 - Installation of Catering Appliances.
- BS5440 1 & 2 - Installation Flueing & Ventilation.
- BS7671 - Requirements for Electrical Installations.
Ireland: - IS 820 - Non - Domestic Gas Installations.
Important:
 Installation shall comply with local gas, electrical and health and safety requirements.
 It is most important that this oven is installed correctly and that oven operation is correct before use.
 If you have any questions regarding the proper installation and / or operation of this oven, please contact your local
Turbofan distributor.

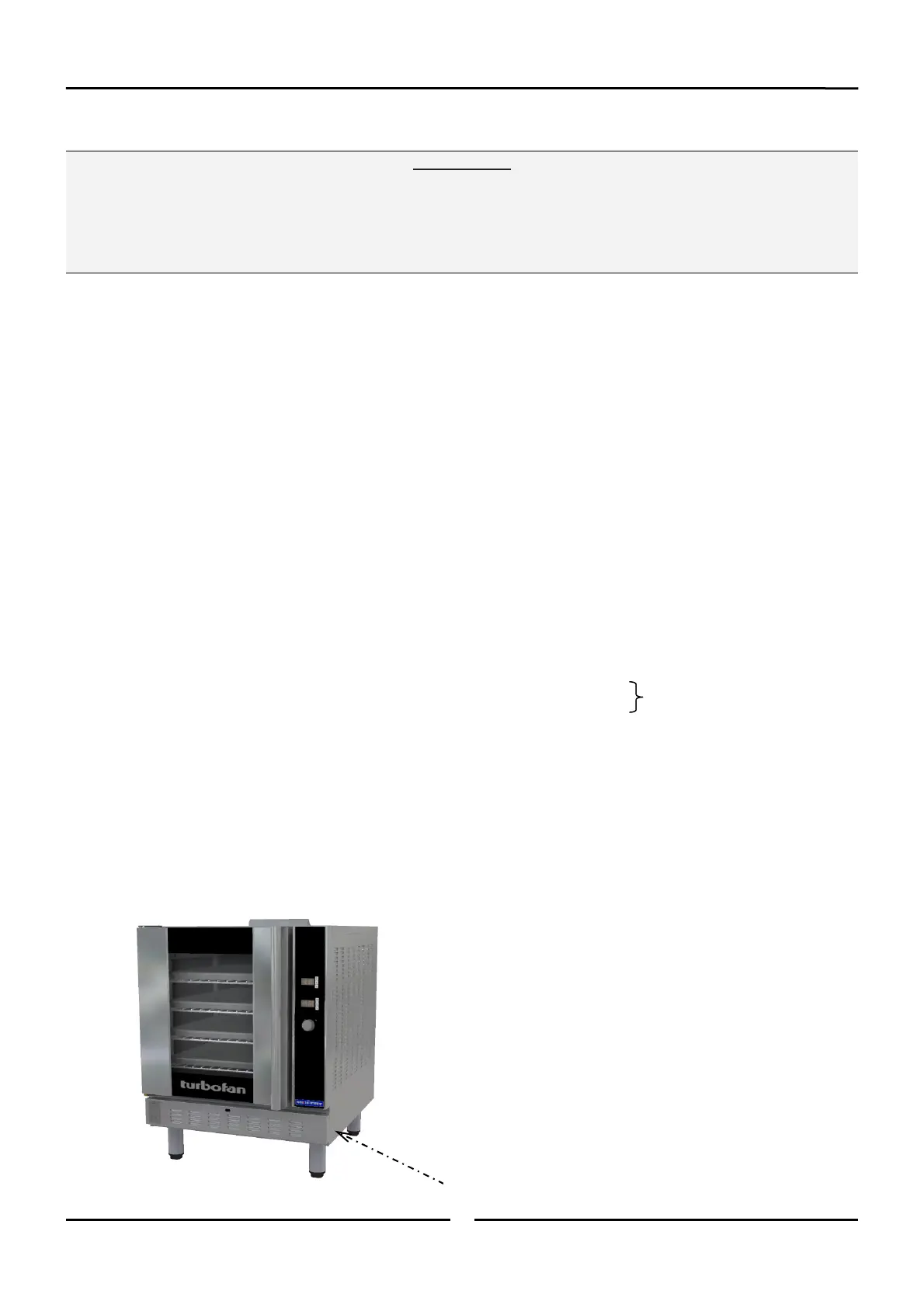

Technical Data Plate - Location
Installation
Installations must be carried out by authorised persons only.
Failure to install equipment to the relevant codes and
manufacturers specifications shown above, will void the warranty.
This oven must be electrically earthed / grounded in accordance
with local codes.
Installation must allow for a sufficient flow of fresh air for the
combustion air supply. Combustion air requirements:
Natural Gas 10m³/hr.
LPG
9m³/hr.
Components having adjustments protected (e.g. paint sealed) by
manufacturer are only to be adjusted by an authorised service
agent. They are not to be adjusted by the installation person.
Unpacking
1. Remove all packaging and transit protection including all
protective plastic coating from the exterior stainless steel
panels.
2. Check the oven and supplied parts for damage. Report any
damage immediately to the carrier and distributo
r.
3.
Check that the following parts have been supplied with yo
ur
oven:
-
4 x Leg Adjustable.
Adaptor Brass.
Rubber Washer.
4. Report any deficiencies to the distributor who supplied yo
ur
oven.
5.
Securely fit the 4 legs supplied with the ov
en.
6.
Check that the available gas and electrical supply is correct to
that shown on the Technical Data Plate located on the fron
t
ri
ght hand side panel.
 Refer to ‘Specifications’ section, ‘Oven
Specifi
cations Tables’.
USA / Canada Only)

turbofan 30D Series Specifications

General

Brand	turbofan
Model	30D Series
Category	Commercial Food Equipment
Language	English
