29
Exploded Parts Lists 9
Amendment 10
11 May 2015

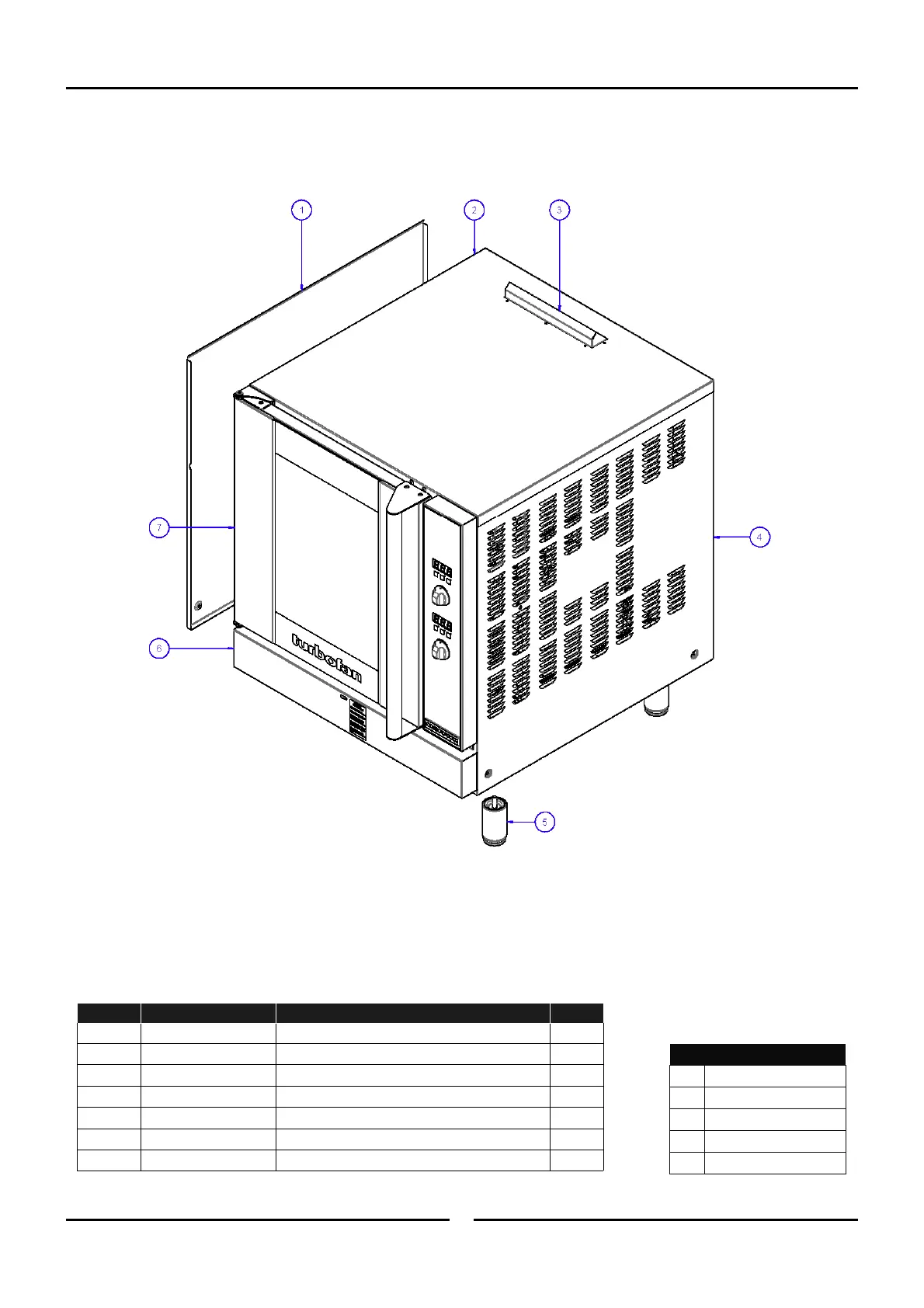

Outer Assembly
Item Part No. Description
1
M234223
SIDE COVER LH
2
M232912
TOP PANEL
3
M232961
VENT SHIELD
4
M232210
SIDE COVER RH
5
M233986 FOOT 4”/100mm ADJ
6
M233533
SILL
7
M234583
DOOR ASSEMBLY(COMPLETE)
*RPL
D
D
D
D
D
D
C
*Recommended Parts Level
RPL
Number of units in service
B 5-10
C 10-50
A 1-5
D 50+
