30

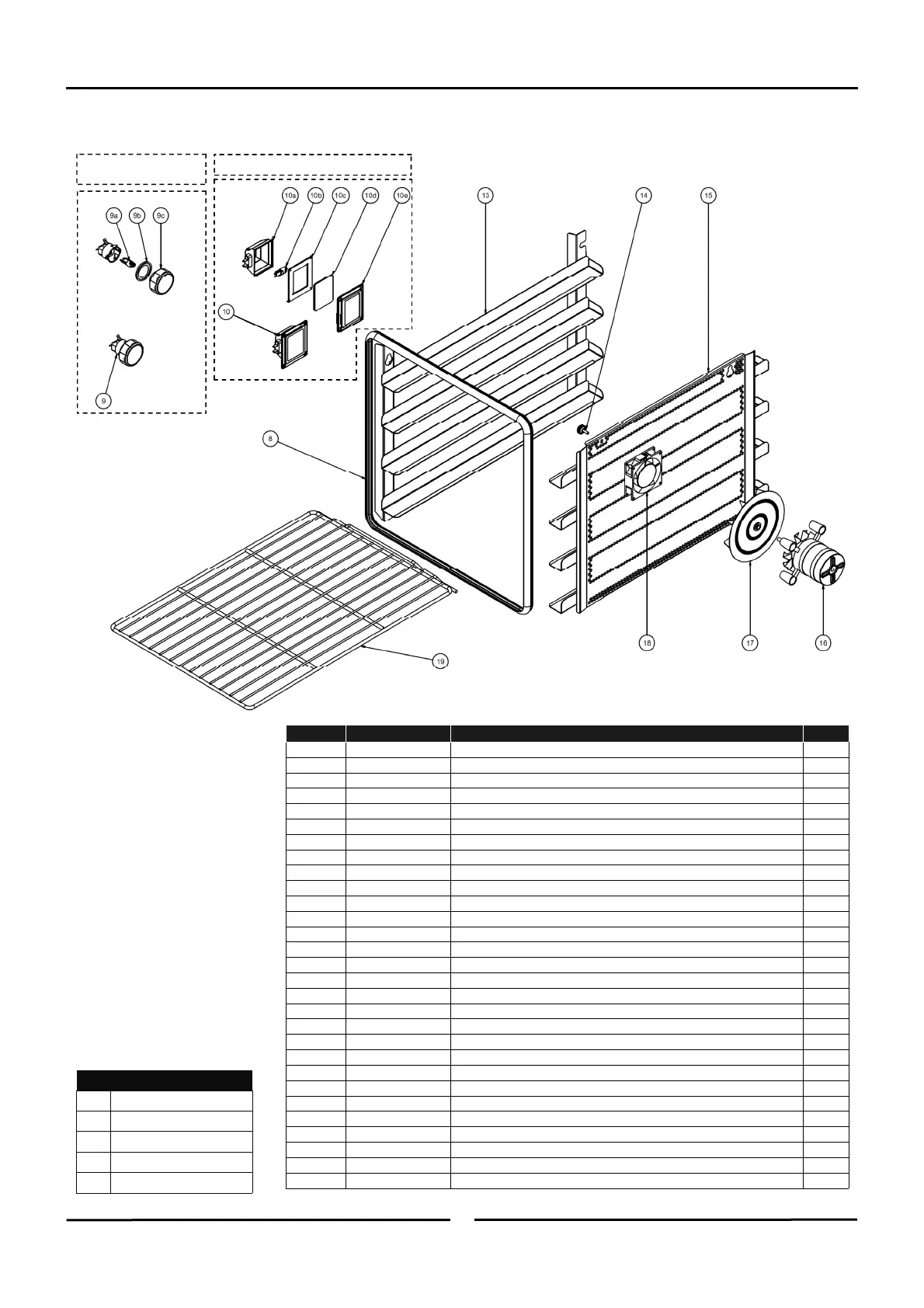

9 Exploded Parts Lists
Amendment 10
11 May 2015
Motor, Lamp & Racks
Item
Part No. Description
8
M232666
DOOR SEAL E27/32
9
M233863
OVEN LAMP ASSY G9 (COMPLETE)
9a
M231814
LAMP BULB G9 25W 230V HALOGEN 208-240V
M233884
LAMP BULB G9 25W 120V HALOGEN 110-120V
9b
M233883
OVEN LAMP SEAL
9c
M233115
OVEN LAMP LENS
13
M234656
SIDE RACK LH 4 TRAY
M234658
SIDE RACK LH 5 TRAY
14
M233552 THUMBSCREW
15
M234666 SIDE RACK RH 4 TRAY
M234667 SIDE RACK RH 5 TRAY
16
M232904 FAN MOTOR 208-240V, 50/60Hz
M232905 FAN MOTOR 120V, 60Hz
17
M232903
FAN 7ā€/175mm
18
M234460
COOLING FAN 230V 50/60Hz
M234461
COOLING FAN 115V 50/60HZ
19
M233649
OVEN RACK
M235277
DOOR ROLLER CATCH STRIKE PIN
M235278
STRIKE LOCKING NUT
*RPL
B
A
A
A
B
B
D
D
B
D
D
B
B
C
B
B
D
C
D
10 — OVEN LAMP ASSY - STEAM SEALED
10a
M236214
LAMP HOLDER (Bulb Included) B
10b
M231814
LAMP BULB G9 25W 230V HALOGEN 208-240V A
M233884
LAMP BULB G9 25W 120V HALOGEN 110-120V A
10d
M021352
GLASS LENS A
10e
M021353
SUPPORT FRAME A
10c
M021354
GASKET A
M234726
E-CLIP (NOT SHOWN) D
M234660
SIDE RACK LH 3 TRAY D
M238561 SIDE RACK RH 3 TRAY D
*Recommended Parts Level
RPL
Number of units in service
B 5-10
C 10-50
A 1-5
D 50+
Round Lamps
(up to Ser. No. 762119)
Square Lamps (from Ser. No. 762120)
