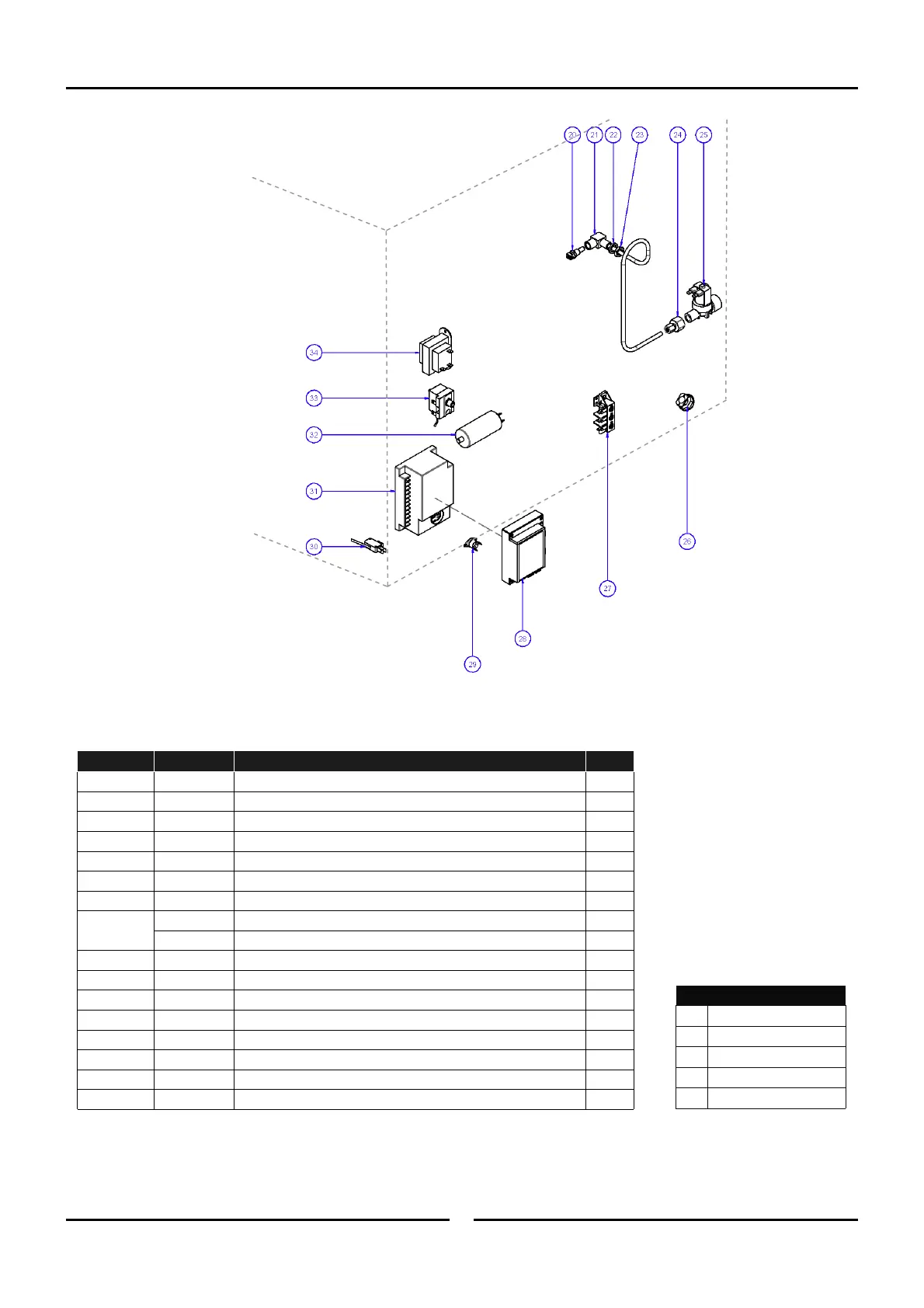

Exploded Parts Lists 9
Amendment 10
11 May 2015
Item Part No. Description *RPL
20
M021057
SPRAY NOZZLE ASSEMBLY C
21
M234774
WATER TUBE D
22
M015292
SEAL WASHER D
23
M013215
NUT BRASS D
24
M020869
FEMALE CONNECTOR D
25
M020851
WATER SOLENOID 240V B
M021617
WATER SOLENOID 110V B
Not shown
M025922
ADAPTOR BRASS ¾” BSP. (USA / CANADA ONLY) D
M021527
WASHER RUBBER. (USA / CANADA ONLY) A
26
M233870
CABLE CLAMP PA107 D
27
M026160
TERMINAL BLOCK FV110B D
29
M232964
THERMAL SWITCH 110°C C
30 ------ DOOR MICROSWITCH ASSY (Refer following Page)
A
31
M234459
IGNITION MODULE 110-120V
A
32
B
M232552
CAPACITOR 12uF 110-120V
C
33
M025400
OVERTEMP THERMOSTAT 360C
34
M234430
TRANSFORMER 110/120V x 12VAC SEC 15VA
Electrical Components
*Recommended Parts Level
RPL
Number of units in service
B 5-10
C 10-50
A 1-5
D 50+
