turbofan 30D Series Service Manual

32
9 Exploded Parts Lists
Amendment 10
11 May 2015
From Ser. No. 744430.
19
18
17
16
14
13
12
11
9
8
7
6
5
4
Up to Ser. No. 744429.
10
1
2
3
Item Part No Description *RPL
11
M236880
Microswitch Button Assy D
12
M236885
Microswitch Button Gasket D
13
M236886
Microswitch Rod D
14
M024802
Door Microswitch A
15
M041043
Screw M5 x 12 Taptite PHIL D
16
M235354
Microswitch Return Spring E32 C
17
M003397
Spacer Plated D
18
M017929
Damper Rod Clip D
19
M232911
Microswitch Bracket D
Item Part No Description *RPL
1
M021637
Microswitch Button D
2
M013610
Pivot Bush Plated D
3
M021638
Pin Circlip D
4
M234403
Microswitch Rod D
5
M024802
Door Microswitch B
6
M041043
Screw M5 x 12 Taptite Phil D
7
M235354
Microswitch Return Spring C
8
M003397
Spacer - Plated D
9
M017929
Damper Rod Clip D
10
M232911
Microswitch Bracket B
M237437
Microswitch Button Kit - Upgrade
*Recommended Parts Level
RPL Number of units in service
B 5-10
C 10-50
A 1-5
D 50+
15

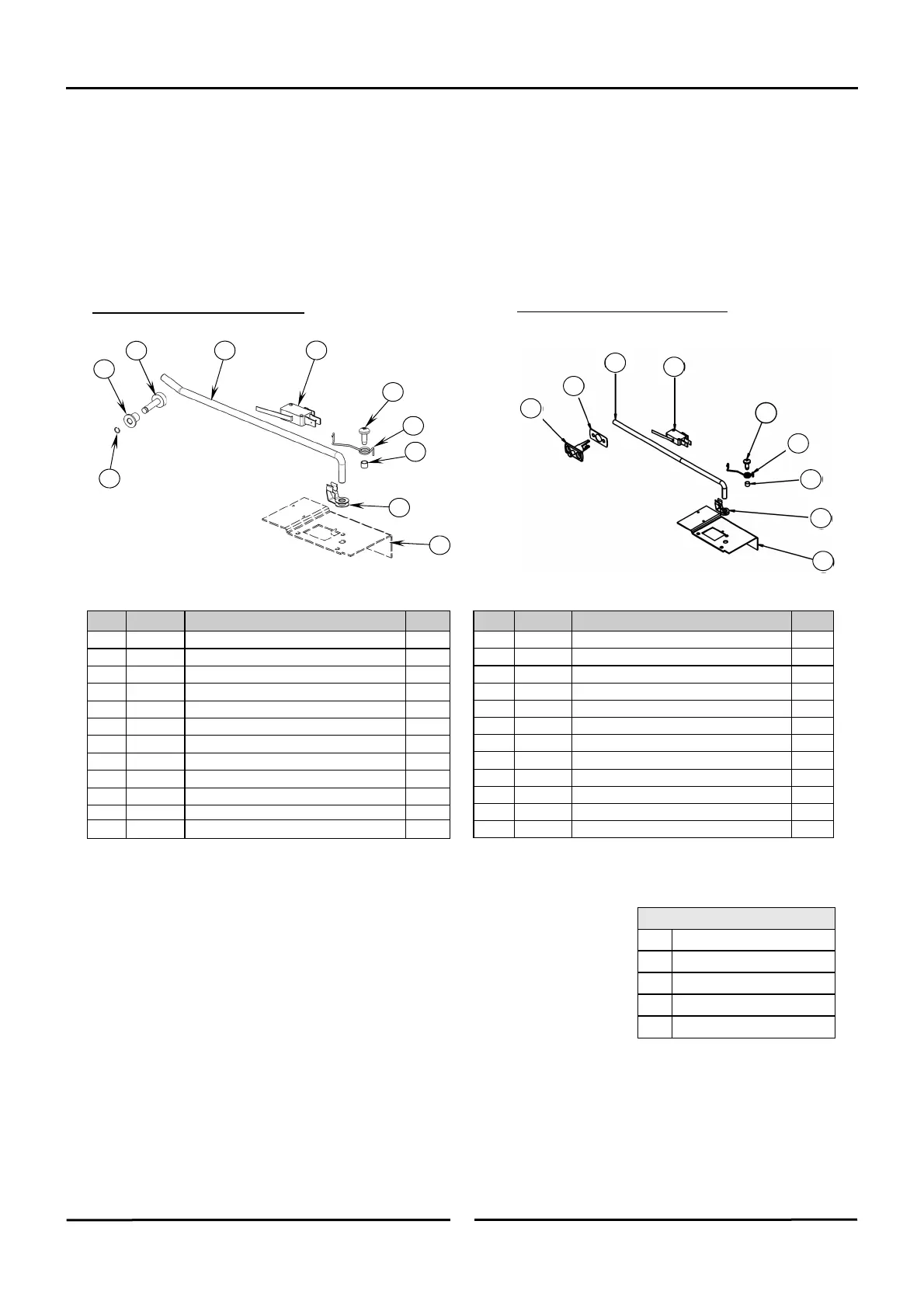

Oven Main Assembly - Microswitch Details
