turbofan 30D Series Service Manual

33
Exploded Parts Lists 9
Amendment 10
11 May 2015

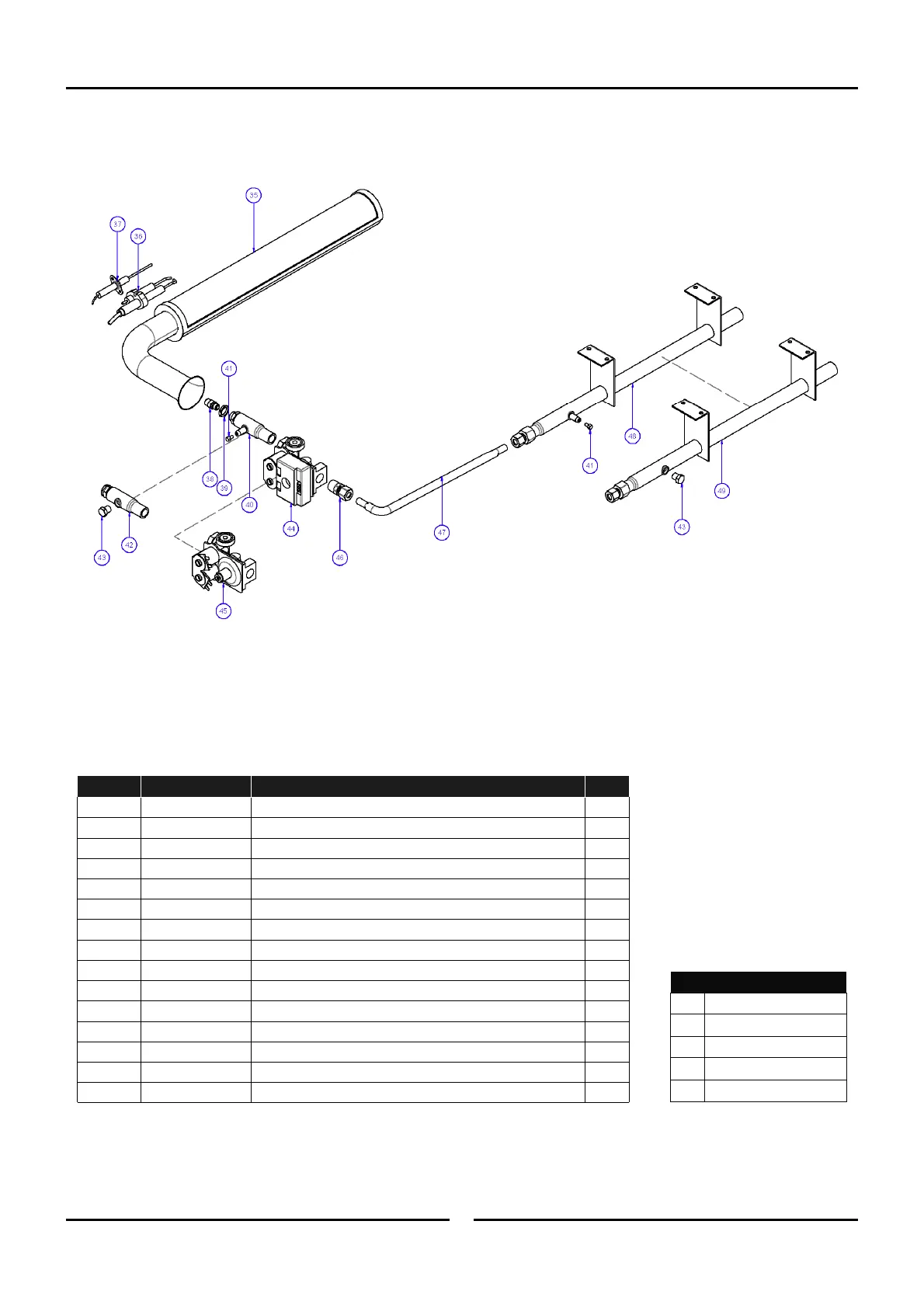

Gas Components
Item Part No. Description
35
M004952
BURNER
36
M024127
SPARK ELECTRODE
37
M025071
FLAME SENSOR
M022909
IGNITION ELECTRODE ASSEMBLY (COMPLETE)
38
M032170
INJECTOR 1.7mm - LPG / BUT
M032270
INJECTOR 2.70mm - NAT UK US CA
39
M025093
LOCKNUT M14X1
42
M234266
G32 INJECTOR PIPE ASSY - USA/CAN US CA JP ONLY
43
M015311
PRESSURE TEST POINT PLUG US CA JP ONLY
45
M234458
GAS VALVE G32 110-120V
M015627
LPG SPRING KIT (NOT SHOWN)
46
M021288
MALE CONNECTOR ASSY 3/8" x 3/8" BSPT
47
M024156
FLEXTUBE DORMONT T6x12
49
M233548
G32 SUPPLY PIPE ASSY - NPT US CA JP ONLY
*RPL
C
A
A
B
C
C
D
D
D
B
C
D
D
D
M016405
NAT SPRING KIT (NOT SHOWN) C
*Recommended Parts Level
RPL Number of units in service
B 5-10
C 10-50
A 1-5
D 50+
