turbofan 30D Series Service Manual

34
9 Exploded Parts Lists
Amendment 10
11 May 2015
*Recommended Parts Level
RPL Number of units in service
B 5-10
C 10-50
A 1-5
D 50+
46

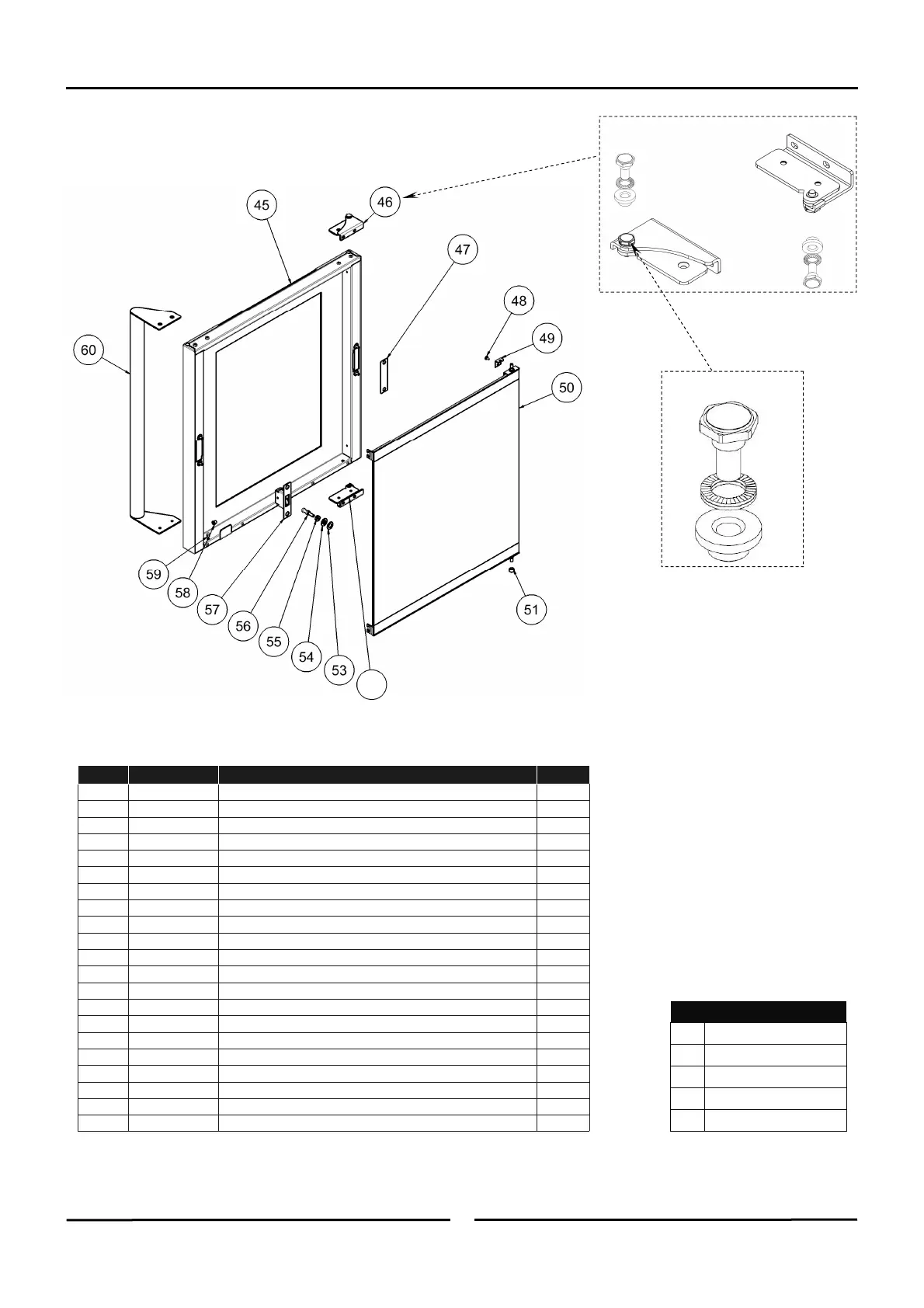

Door Assembly
DOOR HINGE ASSEMBLY KIT - 234930
HINGE PIVOT KIT - 234752
Item Part No. Description *RPL
45
M235275
DOOR OUTER GLASS ASSEMBLY C
46
M234930
DOOR HINGE ASSEMBLY KIT - which includes:- B
47
M234725
DOOR CATCH BLANKING PLATE C
48
M041045
SCREW 8 x ⅜" TRUSS HD PHL NP D
49
M234779
INNER GLASS RETAINING CLIP C
50
M234757
DOOR INNER GLASS ASSY C
51
M234767
INNER GLASS PIVOT SPACER D
53
M235105
DOOR STRIKE ESCUTCHEON WASHER C
54
M235104
DOOR STRIKE PIN ESCUTCHEON C
55
M235278
STRIKE LOCKING NUT C
56
M235277
DOOR ROLLER CATCH STRIKE PIN C
57
M234580
DOOR ROLLER CATCH C
58
M234818
INNER GLASS LATCHING BUSH D
59
M234835
DOME PLUG D
60
M234581
DOOR HANDLE WA D
Door Hinge Assy Bottom
Door Hinge Assy Top
---
M234752
HINGE PIVOT KIT - which includes the following:-
Door Hinge Pivot Pin
Washer M8 Nord-Lock T316
Door Hinge Pivot Bush
