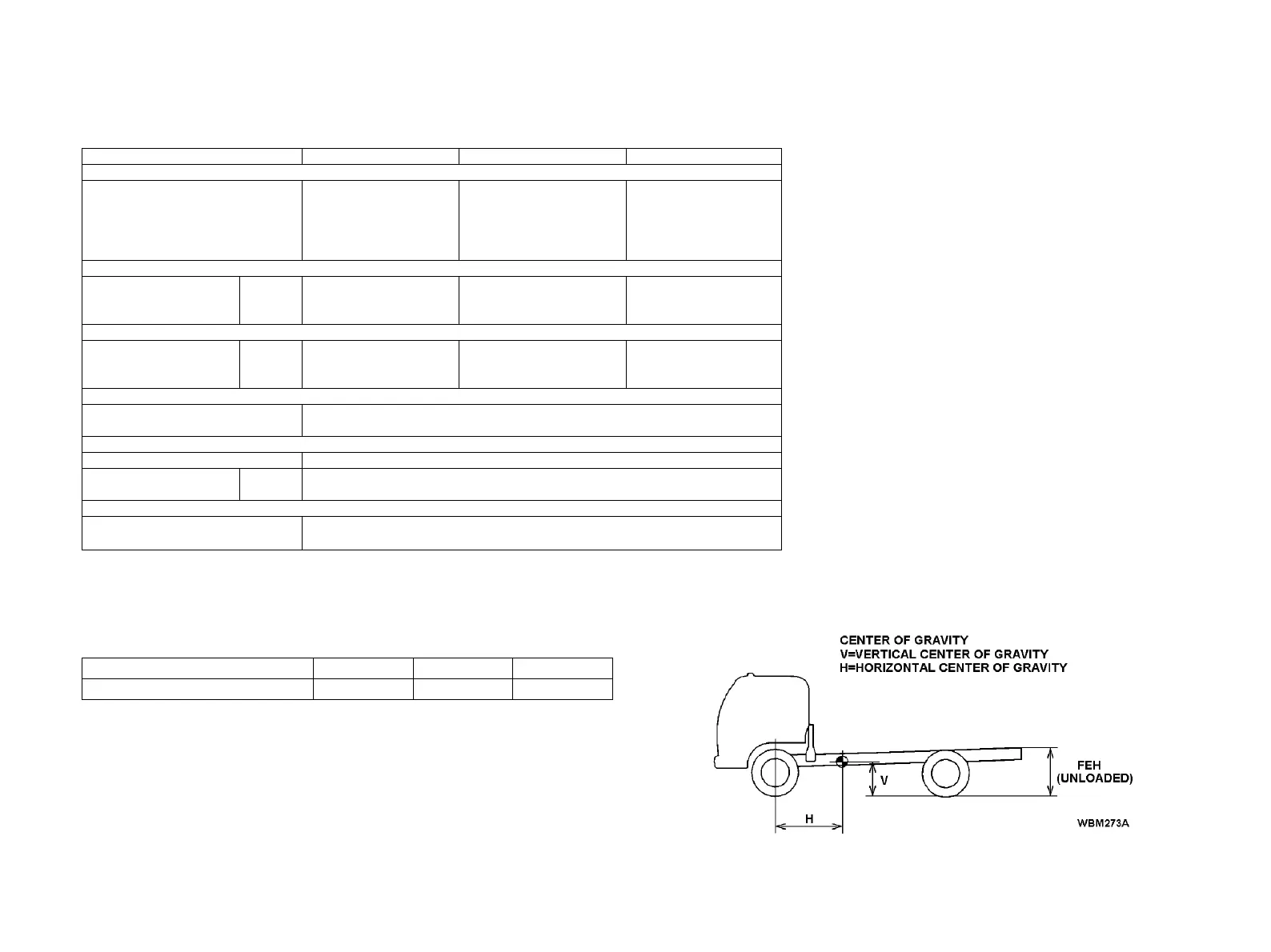

CHASSIS-CAB DIMENSIONS AND MASSES
UD1400 SERIES
NOTE: STANDARD SPECIFICATION WITH LT215/85R 16E TIRES
ADDITIONAL MASSES FOR OPTIONAL PARTS
(NISSAN DIESEL MOTOR CO., LTD. GENUINE PART)
Unit: lb. (kg)
MODEL UD1400A UD1400C UD1400E
DIMENSIONS Unit: inch (mm)
WHEELBASE 108.86 (2,765) 131.89 (3,350) 149.41 (3,795)
OVERALL LENGTH 203.15 (5,160) 226.18 (5,745) 243.70 (6,190)
OVERALL WIDTH 83.62 (2,124) 83.62 (2,124) 83.62 (2,124)
OVERALL HEIGHT 90.63 (2,302) 90.63 (2,302) 90.63 (2,302)
CAB TO REAR AXLE CENTER 83.39 (2,118) 106.42 (2,703) 123.94 (3,148)
MASSES Unit: lb. (kg)
FRONT 3,780 (1,715) 3,910 (1,775) 3,990 (1,810)
CHASSIS-CAB REAR 1,785 (810) 1,750 (795) 1,750 (795)
TOTAL 5,565 (2,525) 5,660 (2,570) 5,740 (2,605)
CENTER OF GRAVITY Unit: inch (mm)
V 27.05 (687) 27.09 (688) 27.05 (687)
CHASSIS-CAB H 35.00 (889) 41.14 (1,045) 45.71 (1,161)
FEH 33.11 (841) 32.87 (835) 32.76 (832)
UNSPRUNG MASS Unit: lb. (kg)
FRONT 562 (255)
REAR 970 (440)
GVMR & GAMR Unit: lb. (kg)
GVMR 14,250 (6,465)
GAMR
FRONT 5,360 (2,430)
REAR 9,880 (4,480)
PERMISSIBLE LOAD Unit: lb. (kg)
FRONT TIRE 2,680 (1,215) X 2
REAR TIRE 2,470 (1,120) X 4
PARTS ASSEMBLY NAME FRONT REAR TOTAL
AIR CONDITIONER 57 (26) 9 (4) 66 (30)
