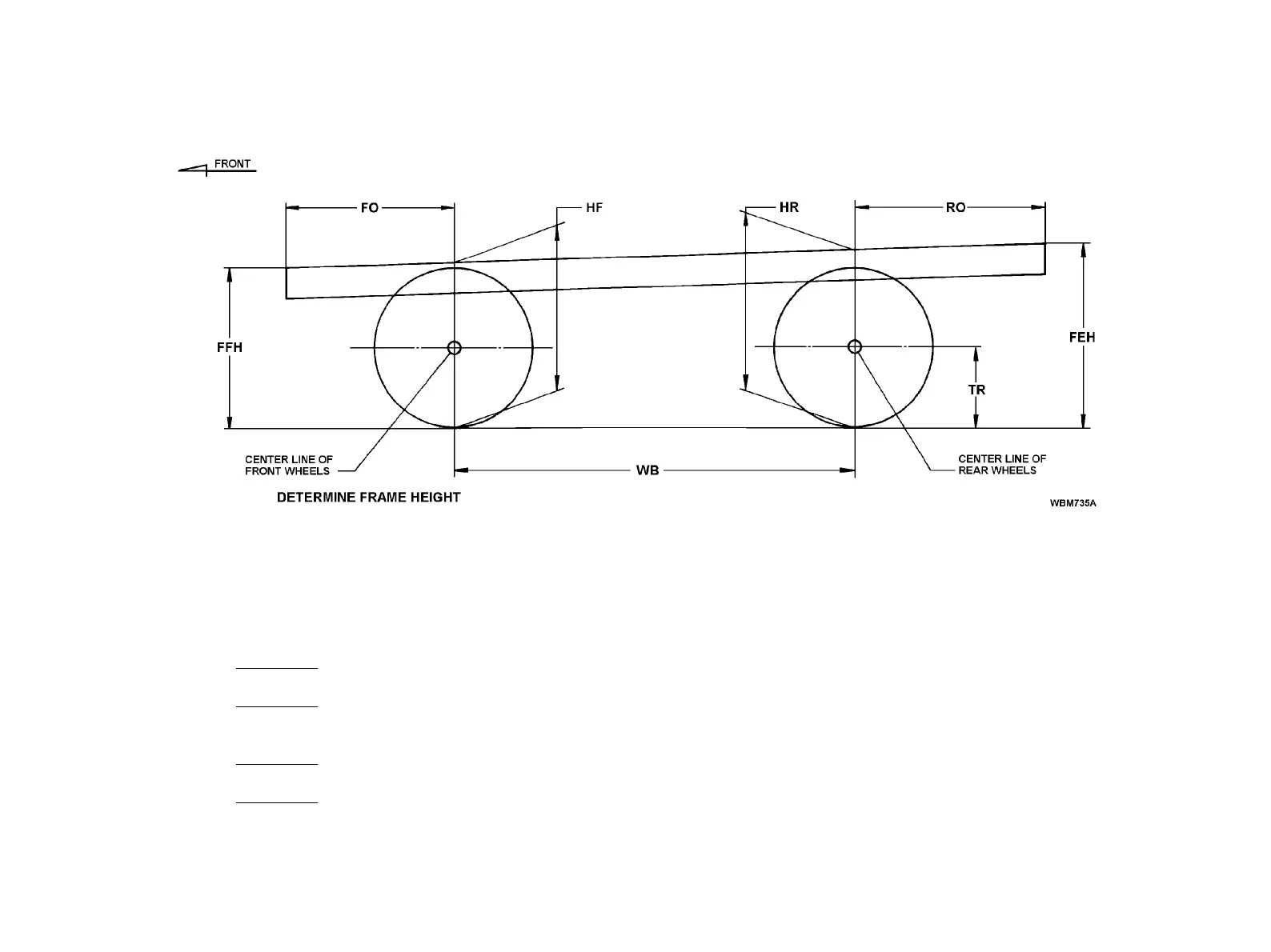

FRAME HEIGHT CALCULATION
NOTE: FOR EMPTY CONDITION, USE EMPTY VALUES FOR LOADED
CONDITION, USE LOADED VALUES
WB; WHEELBASE, CENTER LINE OF FRONT WHEELS TO CENTER
LINE OF REAR WHEELS
FO; FRONT OVERHANG, CENTER LINE OF FRONT WHEELS
FORWARD TO END OF FRAME
RO; REAR OVERHANG, CENTER LINE OF REAR WHEELS
REARWARD TO END OF FRAME
TR; TIRE RADIUS (LOADED OR ANY OTHER SELECTED RADIUS)
HF; HEIGHT-FRONT WHEELS, FRONT HEIGHT FROM TOP OF
FRAME TO GROUND
HR; HEIGHT-REAR WHEELS, REAR HEIGHT FROM TOP OF FRAME
TO GROUND
FFH; FRONT FRAME END HEIGHT, FRONT END OF FRAME HEIGHT
FROM TOP OF FRAME TO GROUND
FEH; REAR FRAME END HEIGHT, REAR END OF FRAME HEIGHT
FROM TOP OF FRAME TO GROUND
IF HR IS GREATER THAN HF
FFH = HF – (
HR – HF
X FO)
WB
FEH = HR + (
HR – HF
X RO)
WB
IF HF IS GREATER THAN HR
FFH = HF + (
HF – HR
X FO)
WB
FEH = HR – (
HF – HR
X RO)
WB
C8
